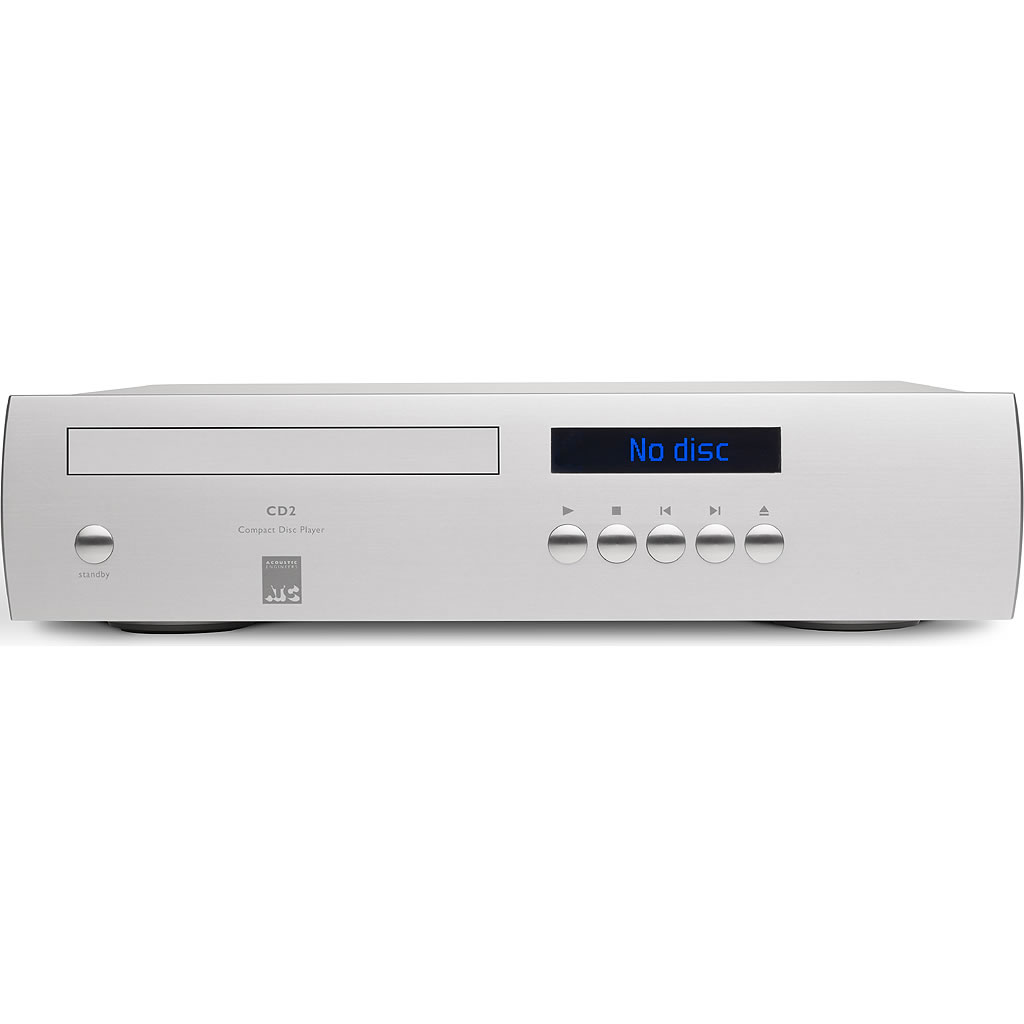

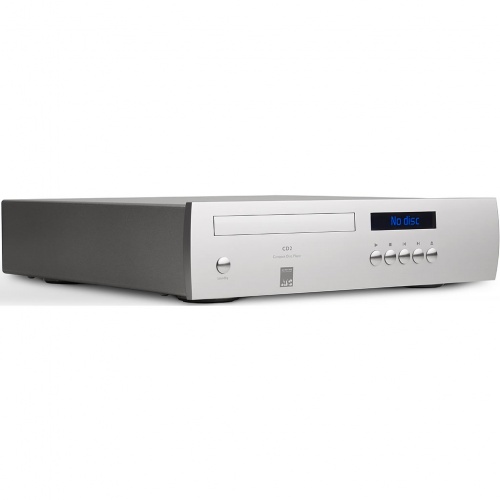

ATC CD2 CD Player

ATC CD2 CD Player

Includes: FREE Silver Mogwai Analogue XLR Cables

This compact high-performance CD digital audio source has been designed to offer exceptional performance and compatibility with a very wide range of partnering electronics both from ATC and other high-quality manufactures.  Styling compliments ATC’s full range of audio electronics, but its small form factor (2/3 width) makes it the perfect partner to the equally compact SIA2-100 integrated amplifier whilst occupying very little space in the home.

• High performance TEAC CD Transport.
• Premium AKM 32-bit DAC.
• Coaxial & TOSLINK Digital Outputs.

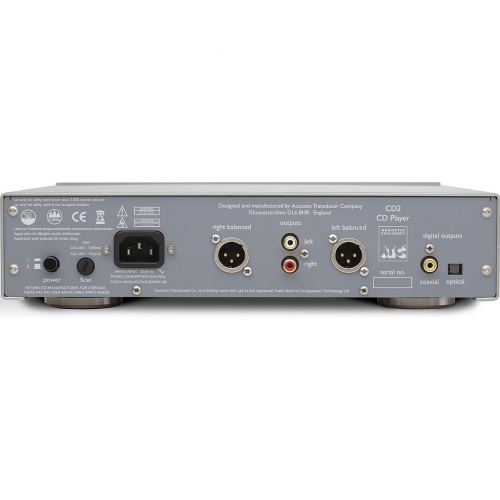

• Balanced XLR and Un-balanced RCA outputs.
• ATC Discrete class-A output buffers.
• Handmade in England.
• 6 year warranty.**
• ** TWO years on CD mechanism.

CD2 Compact Disc Player

Maximum Output Level: Phono 9.2V r.m.s, XLR 18.4V r.m.s.
Output Impedance: 10 Ohms
S+N/N Ratio: Wide Band >96dB, DIN >108dB, IEC “A” >112dB
Output XLR CMRR (100Hz - 10kHz): >60dB
Distortion: 1kHz < 0.0015% (-96dB), 10kHz < 0.003% (-90dB)
Frequency Response (20Hz–20kHz): +/- 0.2dB
S/PDIF Outputs: Toslink, Coaxial 2V pk-pk, source, Impedance 75Ohms

CD2 Mains Power

Voltage: 115/230V AC 50/60Hz (internally selectable). 100v AC via dedicated transformer. Mains voltage selection is to be carried out by ATC only.
Maximum Power Consumption: 10Watts

CD2 Physical

Dimensions (HxWxD): 77 x 315 x 315mm / 3.1 x 12.4 x 12.4", dimensions exclude rear panel connectors. Take care to leave space
behind the unit for connectors and cables.
Weight: 4.2kg / 9.24lbs
