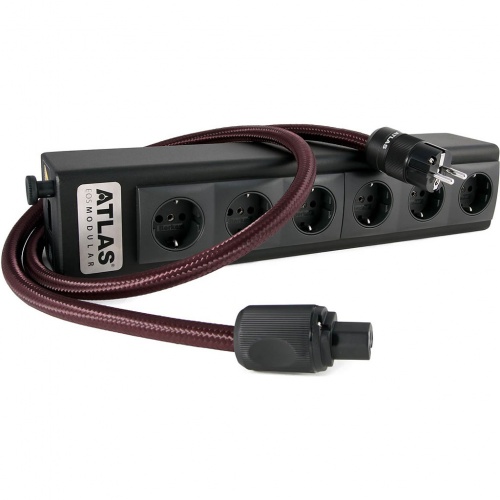

Atlas Eos Modular 4.0 Power Distribution Block

Atlas Eos Modular 4.0 Power Distribution Block (Power Cable Not Included)

We live in an electrically noisy world. Mobile phones, computers, wireless networks, the fridge and even your equipment itself can all add various types of noise & interference. Optimum system performance demands a different approach for each component type – so the Eos Modular 4.0 mains block can combine sockets designed for higher power items (eg. amplifiers) with sophisticated filtered variants for equipment processing delicate low-level signals (eg. CD players & DACs).

Start with a strong foundation. The Eos Modular 4.0 block is internally wired with Atlas Eos 4dd PTFE power cable (4mm²) to ensure matched power transmission between individual socket outlets and the incoming mains supply when connected to the the wall socket with the Eos 4dd power cable.

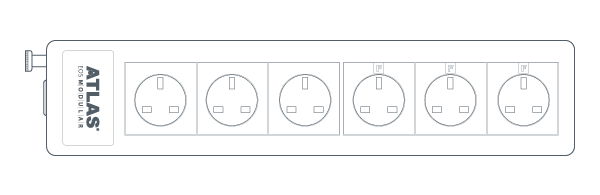

The block is fully shielded, constructed from a welded steel chassis with anti-vibration contact damping and is configurable with optional filtered sockets. All components are of the highest quality, with the filtering circuit board being of heavy-duty design with gold-plated connections.

We use a technique called ‘Atlas ssd’ (sequential socket decoupling) to ensure that even those sockets which are not subjected to inline filtration enjoy a level of interference-free operation. The benefit is all the sockets perform and measure identically, not the case with normal domestic blocks where the sockets nearest the cable entry typically perform best because the impedance rises as resistive losses accumulate on each ‘daisy-chained’ socket.

Even the neon power indicators on conventional domestic blocks are a source of noise in themselves, which is why we don’t fit them to our blocks.

The Eos Modular 4.0 block is best used as part of a complete Power Management System, where it will maintain maximum integrity against RFI (Radio Frequency Interference and EMI (ElectroMagnetic Interference)

For a more detailed technical analysis of our power products, please refer to this White Paper from our Technical Library.

Eos Modular Power Management System

The Eos Power Management System has been designed to let you hear what your system’s really capable of. Eos cables are available in rhodium-plated UK 13A, Schuko & Nema variants, as is the Eos Modular distribution block.

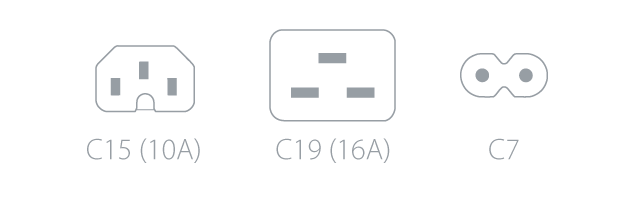

Your local Atlas dealer/distributor will normally supply Eos products with the appropriate plugs for your country. At the equipment end of the power cable, options are 10A (standard ‘kettle-type’ connector used on most equipment) & 16A (high current, larger format connector) IEC and C7 (‘figure of 8’ connector).

Please specify which type of connector you require on purchase.

Technology

• Connector Type: Eos Mains Plug
• Conductor Material: OCCV
• Dielectric Material: PTFE
• Construction: Triple Multi-core

• Construction: Multicore, dual drain, double screen
• Material: OCC
• Dielectric: Stabilised PVC
• Screen: Multilayer Cu Mylar™ & woven screen
• Capacitance: 195.09 pF/m
• Inductance: 0.377 µH/m
• Resistance: 0.0050 Ohm/m
• Outside Diameter: 15mm
