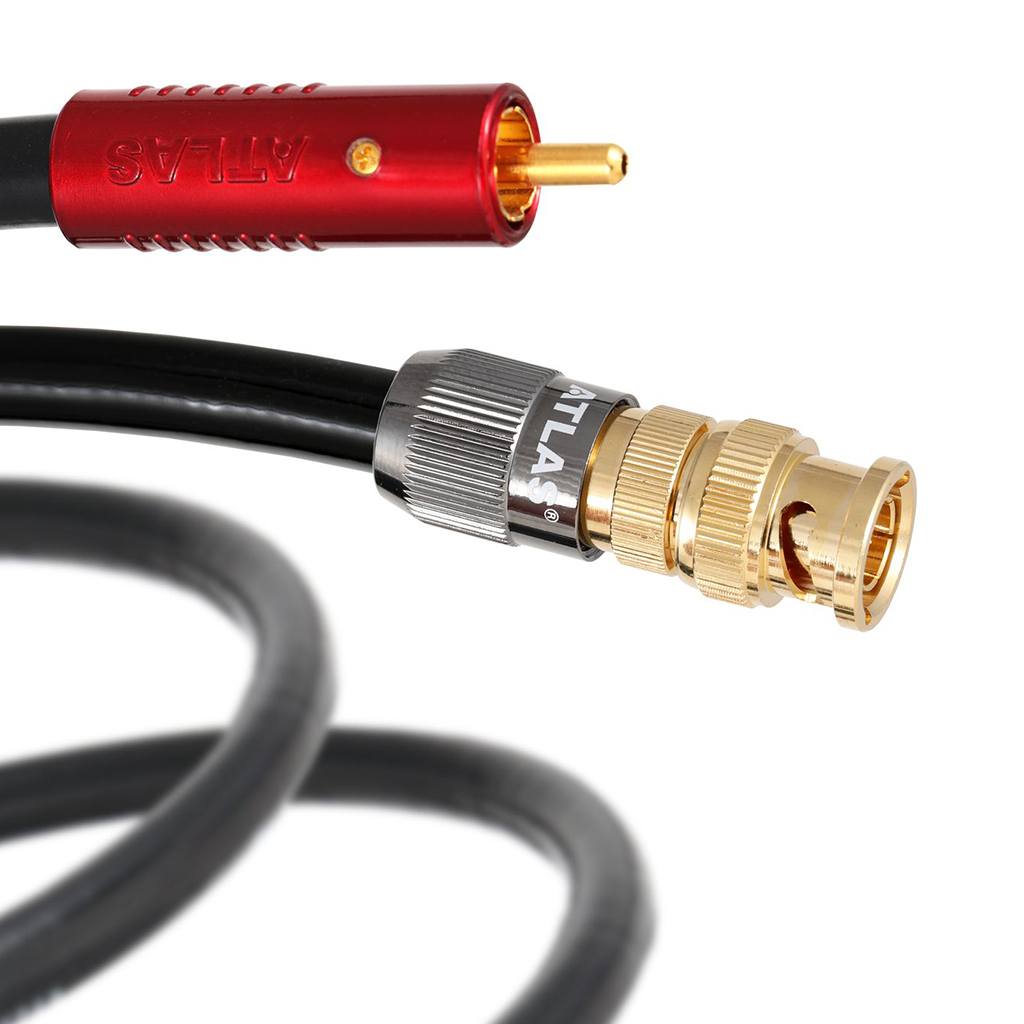

Atlas Hyper dd Achromatic RCA - BNC S/PDIF Digital Interconnect Cable

Atlas Hyper dd Achromatic RCA - BNC S/PDIF Digital Interconnect Cable

A high performance cable engineered to be a superior option for use between hi-res streamer or CD transport and DAC offer optimum performance for equipment utilising BNC socketry, available configured RCA–BNC/BNC–RCA (avoiding adapters) as well as BNC–BNC.

The Hyper Achromatic BNC is designed to match the consumer digital audio specification by maintaining a true 75 Ohm impedance, ensure error-free transmission of digital data signals.

Many cables actually fail to meet the 75 Ohm standard due to flaws in the way the cable itself is manufactured and assembled. Our cold-weld solder-free connectors avoid continuity breaks and compression of the cable’s shielding screen which cause impedance problems and lead to compromised jitter performance.

The Hyper dd benefits from a simplified version of the dual-drain system originally developed for our top-of-the-range Mavros and Asimi interconnects. Twin symmetrical drain wires connect the screen to the cable return/plug interface, meaning the cable can be terminated without distorting, twisting or mechanically stressing the precision-laid screen.

The benefits are in maintaining a consistent low impedance load to the plug, and a total 360° screening against noise and signal loss caused by RFI (Radio Frequency Interference).

The Hyper dd Achromatic BNC is an ideal digital cable between CD transport or streamer and DAC – if your equipment has BNC socketry, this will normally offer superior performance to RCA connectors.
The Hyper range includes DIN & XLR termination options, digital interconnects plus stereo & bi-wire speaker cables.

Main Features:

• Superior option for use between hi-res streamer or CD transport and DAC
• Optimum performance for equipment utilising BNC socketry
• Maintains a true 75 Ohm impedance
• Error-free transmission of digital data signals
• Cold-weld solder-free connectors - avoids continuity breaks and compression of the cable’s shielding screen
• Twin symmetrical drain wires connect the screen to the cable return/plug interface
• The cable can be terminated without distorting, twisting or mechanically stressing the precision-laid screen
• Maintaining a consistent low impedance load to the plug
• Total 360° screening against noise and signal loss caused by RFI

• Construction: Co-ax
• Material: Silver Plated OCC
• Dielectric: PEF (Polyethylene)
• Screen: 272 strands OFC
• Capacitance: 54.35 pF/m
• Inductance: 0.230 µH/m
• Resistance: 0.065 Ohms/m
• VOP: 0.81
• Outside Diameter: 8.5mm
