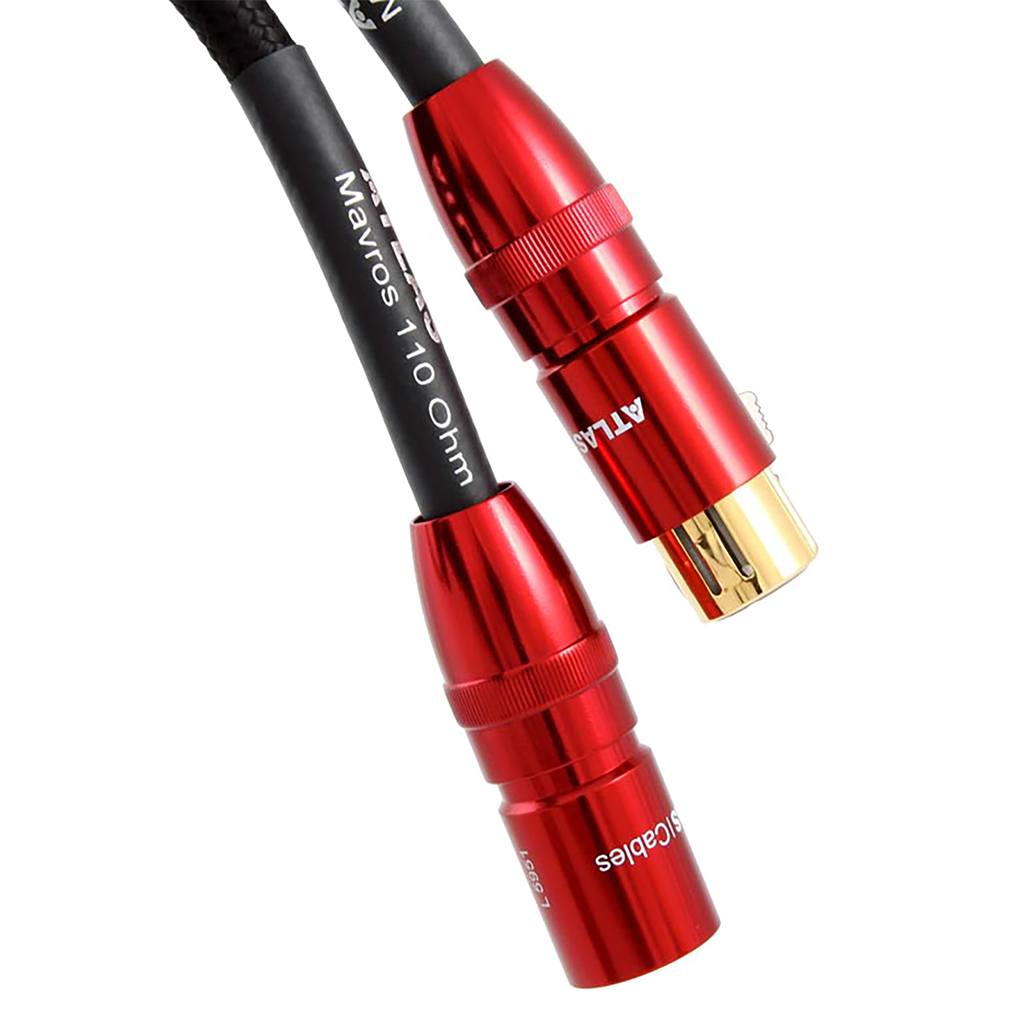

Atlas Mavros OCC XLR ( 3 pin) AES/EBU Digital Interconnect Cable

Atlas Mavros OCC XLR ( 3 pin) AES/EBU Digital Interconnect Cable

A true reference class balanced 110 Ohm digital cable.

The Mavros AES/EBU cable is engineered as a cable with extremely precise transmission and termination standards, incorporating the same microporous PTFE (Teflon™) dielectric insulation as the other Mavros interconnects.

The centre conductor is comprised of a monofilament conductor and 18 strands of super pure copper wire insulated by a thin layer of microporous PTFE. This dielectric behaves almost like the theoretically perfect insulator –free air – with minimal effect upon the signal being transmitted. The previous highest performance insulator, solid PTFE, has a dielectric constant of around 2.1 whilst the new PTFE (Teflon™) foam improves this figure to around 1.5, providing for a 30% greater signal velocity and better signal integrity, particularly in the area of high frequency timing and stability.

The co-axial double shielding layers are an aluminium Mylar™ foil followed by OFC (Oxygen Free Copper) braiding after which the whole cable is protected by a PVC jacket damped with cotton yarn.

With a consistent termination impedance, the Mavros AES/EBU interconnect perfectly matches professional and semi-pre digital audio equipment to ensure error-free transmission of high speed digital signals. The result is evident in the timing and dynamic range of musical performances where the temporal ‘smearing’ of lesser cables is absent.

Main Features:

• A true reference class balanced 110 Ohm digital cable.
• Extremely precise transmission and termination standards
• Microporous PTFE (Teflon™) dielectric insulation
• Monofilament conductor and 18 strands of super pure copper wire insulated by a thin layer of microporous PTFE
• Minimal effect upon the signal being transmitted.
• 30% greater signal velocity and better signal integrity, particularly in the area of high frequency timing and stability.
• Aluminium co-axial double shielding layers
• OFC (Oxygen Free Copper) braiding
• Ensure error-free transmission of high speed digital signals.

• Construction: Symmetrical + Screen (19/0.2)
• Material: Silver Plated OFC
• Dielectric: Microporous PTFE (Teflon™)
• Screen: Braid OFC
• Capacitance: 41.27 pF/m
• Inductance: 0.728 µH/m
• Resistance: 0.0029 Ohms/m
• Impedance: 115.96 Ohm (300kHz)
• Outside Diameter: 8 mm
