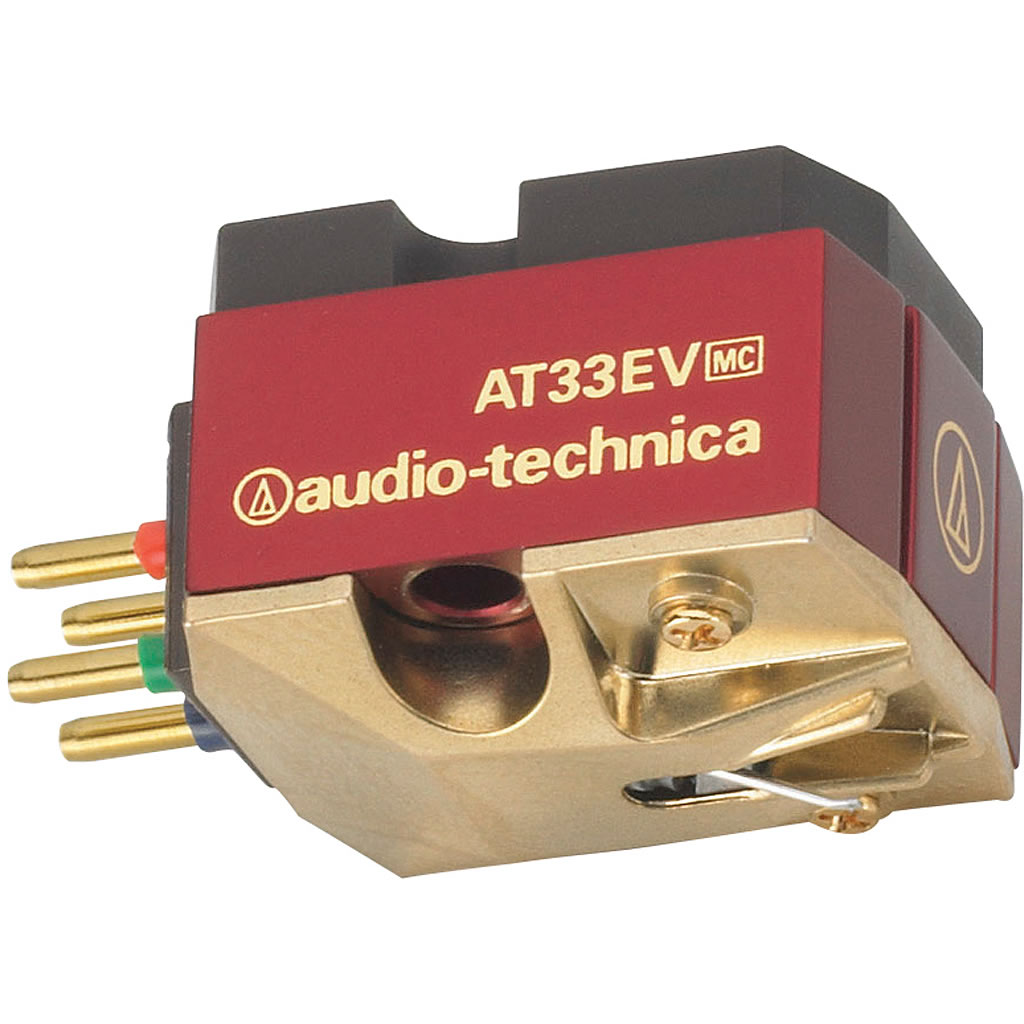

Audio Technica AT33EV Dual Moving Coil Cartridge

Audio Technica AT33EV Dual Moving Coil Cartridge with Elliptical Stylus

The original model of this stereo cartridge is the AT33ANV, which was available as a special release to celebrate our 45th anniversary. The A33ANV was the first in the AN33 series to feature a Duralumin cantilever, which received wide acclaim for its sound quality. Retaining the basic specification, we present a further improved and evolved model.

The A33EV is a ½ inch, standard mount 0.3 x 0.7 mil elliptical cartridge featuring a tapered Duralumin cantilever which reduces the effective mass of the cartridge, resulting in a more durable cantilever. The Dual Moving Coil cartridge design increases channel separation and extends the frequency response range delivering extraordinary audio quality. Internally constructed with a neodymium magnet enhances magnetic energy and PCOCC wire for pure audio transmission.

• Elliptical stylus chip and durable duralumin tapered pipe cantilever
• 10O mid impedance specifications
• Dramatically increased magnetism with neodymium magnets and PCOCC as the coil
• High separation, wide-response dual moving coil
• VC Mold eliminates unnecessary vibrations
• "Hanenite" anti-vibration rubber eliminates unwanted vibrations

 .

• Elliptical stylus chip and durable duralumin tapered pipe cantilever
• 10O mid impedance specifications
• Dramatically increased magnetism with neodymium magnets and PCOCC
• High separation, wide-response dual moving coil
• VC Mold eliminates unnecessary vibrations
• "Hanenite" anti-vibration rubber eliminates unwanted vibrations

Type: Dual Moving Coil
Mounting: 1/2" Centers
Frequency Response: 15 - 50,000Hz
Body Material: Aluminium/Synthetic Resin
Channel Separation: 30dB (1kHz)
Output Channel Balance: 0.5dB (1kHz)
Output Voltage: 0.3mV (1kHz and 3.54cm/sec.)
Vertical Tracking Angle: 23°
Vertical Tracking Force Range: 1.8 - 2.2g (2.0g standard)
Stylus Shape: Elliptical
Stylus Curvature Radius: 0.3 x 0.7 mil
Stylus Construction: Nude Square Shank
Cantilever: Duralumin
Coil Impedance: 10Ω (1kHz)
Coil Inductance: 22µH (1kHz)
DC Resistance: 10Ω
Static Compliance: 40×10-6cm/dyne
Dynamic Compliance: 10×10-6cm/dyne (100Hz)
Terminal Pins: Brass
Recommended Load Impedance: More than 100Ω (when head amp connected)
Weight: 6.9g
Dimensions: H16×W16.6×D26.5mm
Replacement Stylus: When the stylus is to be replaced, replace the entire cartridge. Take the used cartridge to your Audio-Technica Authorised Service Centre. The new cartridge, or any other model which is desired among the line-up of MC cartridges sold by Audio-Technica, are available at the stylus replacement price.
Accessories Included: Non-magnetic screwdriver × 1, Washer × 2, Protector × 1, Cartridge installation screws 13 mm × 2 and 19 mm × 2, Nut × 2, Brush × 1, PCOCC lead set × 1
