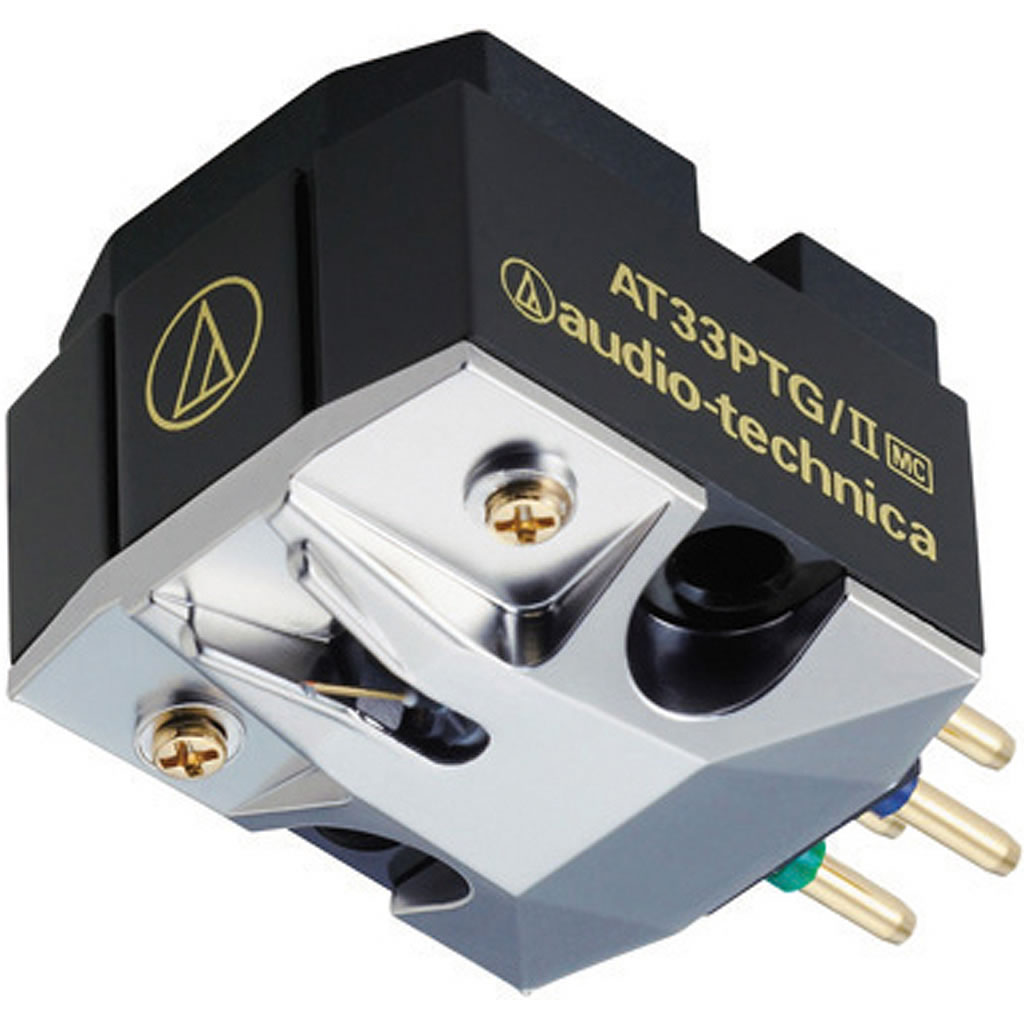

Audio Technica AT33PTGII Dual Moving Coil Cartridge

Audio Technica AT33PTGII Dual Moving Coil Cartridge with Microlinear Stylus

Advanced nude tapered boron and weight reduction

This model succeeds in thinning down and shortening the cantilever, compared to the AT33PTG. The coil impedance is also refined from 17W to 10W. We realized significant weight reduction of the vibration system and successfully improved the basic performance and sound quality of the cartridge.

High performance and long-life Microlinear stylus

Microlinear (ML) is a specially polished line contact stylus. This has better high range performance than the conical or elliptical stylus due to its small curvature radius and realizes low distortion and expanding high range reproduction even when playing at the inner circumference of records. And the constancy of the line contact shape is one of its main features with an average product lifetime of around 1000 hours .

• Advanced nude tapered boron and weight reduction
• Thinned down and shortened cantilever
• Coil impedance refined from 17W to 10W
• High performance and long-life Microlinear stylus
• Better high range performance than the conical or elliptical stylus
• Average product lifetime of around 1000 hours

Type: Dual Moving Coil
Mounting: 1/2" Centers
Frequency Response: 15 - 50,000Hz
Body Material: Aluminium/Synthetic Resin
Channel Separation: 30dB (1kHz)
Output Channel Balance: 1dB (1kHz)
Output Voltage: 0.3mV (1kHz and 5cm/sec.)
Vertical Tracking Angle: 23°
Vertical Tracking Force Range: 1.8 - 2.2g (2.0g standard)
Stylus Shape: Microlinear
Stylus Curvature Radius: Micro linear
Stylus Construction: Nude Square Shank
Cantilever: Gold-plated solid boron
Coil Impedance: 10Ω (1kHz)
Coil Inductance: 22µH (1kHz)
DC Resistance: 10Ω
Static Compliance: 40×10-6cm/dyne
Dynamic Compliance: 10×10-6cm/dyne (100Hz)
Terminal Pins: Brass
Recommended Load Impedance: Min 100Ω
Weight: 6.9g
Dimensions: H16×W16.6×D26.5mm
Replacement Stylus: When the stylus is to be replaced, replace the entire cartridge. Take the used cartridge to your Audio-Technica Authorised Service Centre. The new cartridge, or any other model which is desired among the line-up of MC cartridges sold by Audio-Technica, are available at the stylus replacement price.
Accessories Included: 1 non magnetic screw driver; 2 washers; 2 Nuts; 2 x 13 mm mounting screws; 2 x 19 mm mounting screws; 1 plastic protector; 1 set of PCOCC Lead Wires(AT6101)
