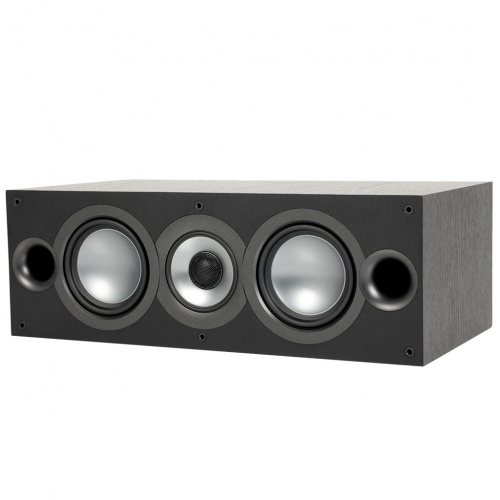

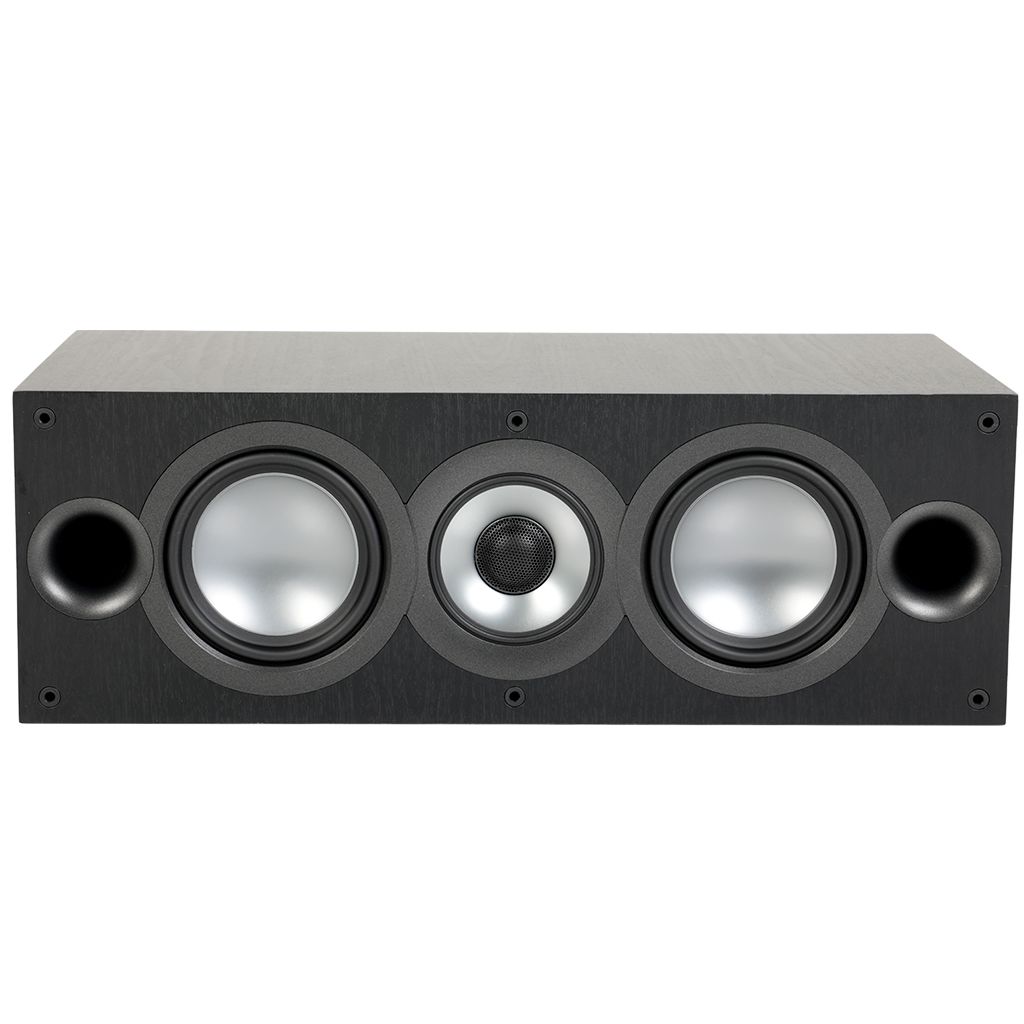

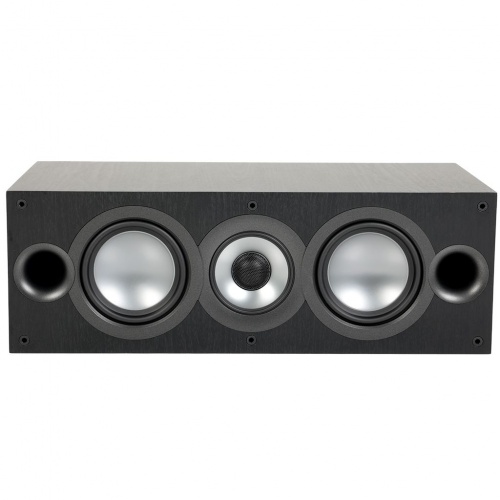

ELAC Uni-Fi 2.0 UC52 Centre Speaker

ELAC Uni-Fi 2.0 UC52 Center Channel Speaker

The Center of Attention

The centre channel is the most critical speaker in a surround sound system. The UC52’s concentric driver provides the perfect solution for a compelling home theatre experience. Using the same outstanding drivers and technology as the series other models ensures this compact, 3-way, bass-reflex centre speaker delivers a matched sonic signature.

3-Way Speaker Design

With separate tweeter, mid-range and bass drivers the Uni-Fi UB52 delivers clean bass without distorting vocals.

Newly Developed Concentric Driver

A new wide-surround tweeter enhances it’s low and high frequency extension allowing for improved blending with the midrange driver. An entirely new mid-range design features a larger diameter voice coil, new aluminum cone profile, new low-profile surround, and an all-new neodymium magnet assembly.

New Single Piece Woofer

A newly developed single piece aluminum dished cone results in improved stiffness. Combined with an oversized magnet, large diameter voice coil, and extended pole piece, these changes result in improved accuracy and bass dynamics.

Sophisticated 3-Way Crossover

An enhanced design improves response linearity, improves driver integration and delivers a true 6-ohm nominal impedance for compatibility with virtually all AV receivers.

Enhanced Bracing

Every Uni-Fi 2.0 enclosure is engineered with thick MDF outer walls and a luxurious black ash vinyl finish. Specially located internal bracing adds stiffness and strength to the cabinet’s outer walls, reducing the cabinet vibration that causes unwanted coloration.

Front Firing Vents (UB52-BK and UC52-BK Only)

Relocating the vents to the front on the bookshelf and center speakers allows for greater freedom of placement, even in restricted places like a cabinet or up close to a wall.

Main Features:

• Newly Developed Concentric Driver
• New Single Piece Woofer
• Sophisticated 3-Way Crossover
• Front Firing Vents (UB52-BK and UC52-BK Only)
• Enhanced Bracing Significantly Reducing Vibration

• Speaker type: 3-way, bass reflex
• Tweeter: 1 x 1-inch soft dome, concentrically mounted
• Midrange: 1 x 4-inch aluminum cone
• Woofer: 2 x 5.25-inch aluminum cone
• Crossover frequency: 200 / 2,000 Hz
• Frequency response: 48 to 35,000 Hz
• Sensitivity: 85 dB at 2.83 v/1m
• Recommended amplifier power: 40 to 140 wpc
• Peak power handling: 140 wpc
• Nominal impedance: 6 Ω

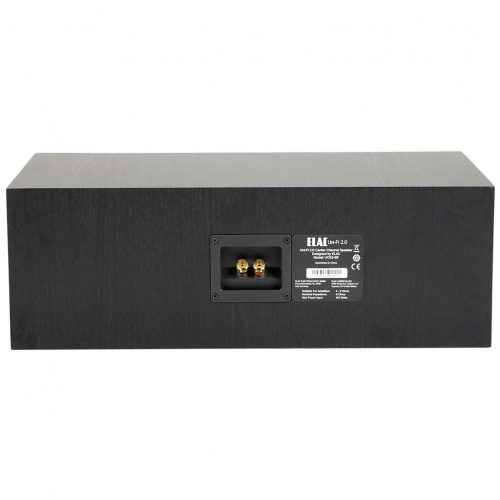

• Binding posts: 5-way custom
• Magnetic shielding: No
• Cabinet finishes: Black ash vinyl
• Accessories included: Fabric grille
• Height:  7.28″
• Width:  24.42″
• Depth: 10.83″
