What’s inside?
Eight audio grade 100/1000 Base-T gigabit Ethernet ports make it possible to connect even the most demanding streaming setups. Significant (ie. audible) improvements can be experienced in music playback via streaming services or music stored on a NAS.
The 16switch features low and high electrical noise isolation, reducing data issues that can often be apparent during the playback of high-resolution material.
Core technologies
Powered by a customised TCXO (Temperature Compensation Crystal Oscillator), accuracy is 0.1ppm – far higher than normal crystals and higher than a normal TCXO, allowing the 16Switch to generate higher accuracy network signals, which in turn helps provide more stable music data transmission.
The power supply and clock generation circuits each have two electrical noise isolation circuits which ensure stable network signals. An EMI (Electromagnetic Interference) absorber helps to further reduce the noise from the digital circuit.
Compare the increased performance and jitter measurement (90% less!) of the 16switch compared to that of a general network switch.
Casework

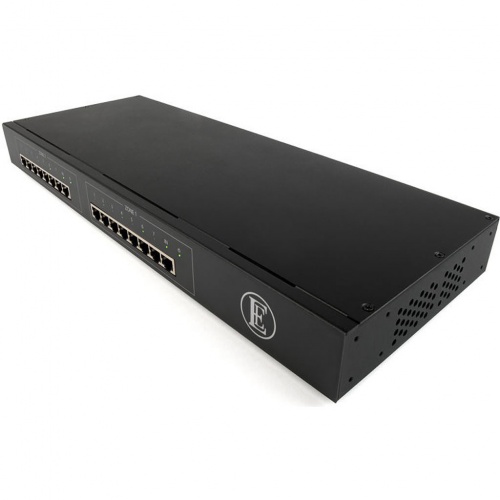

The 16Switch benefits from a high-quality 1U mild steel enclosure which offers protection from both acoustic and electrical noise. It is highly flexible and can be sited on any solid surface using the (optional) resonance-damping feet, to help decouple the device from unwanted mechanical vibration.
The 16Switch is also supplied with rack-mount brackets and bolts to allow mounting in a 19-inch rack (1U height). When rack-mounted, the case has both front and rear rack-mounting locations, allowing the sockets to be either forward- or rear-facing in the installation.

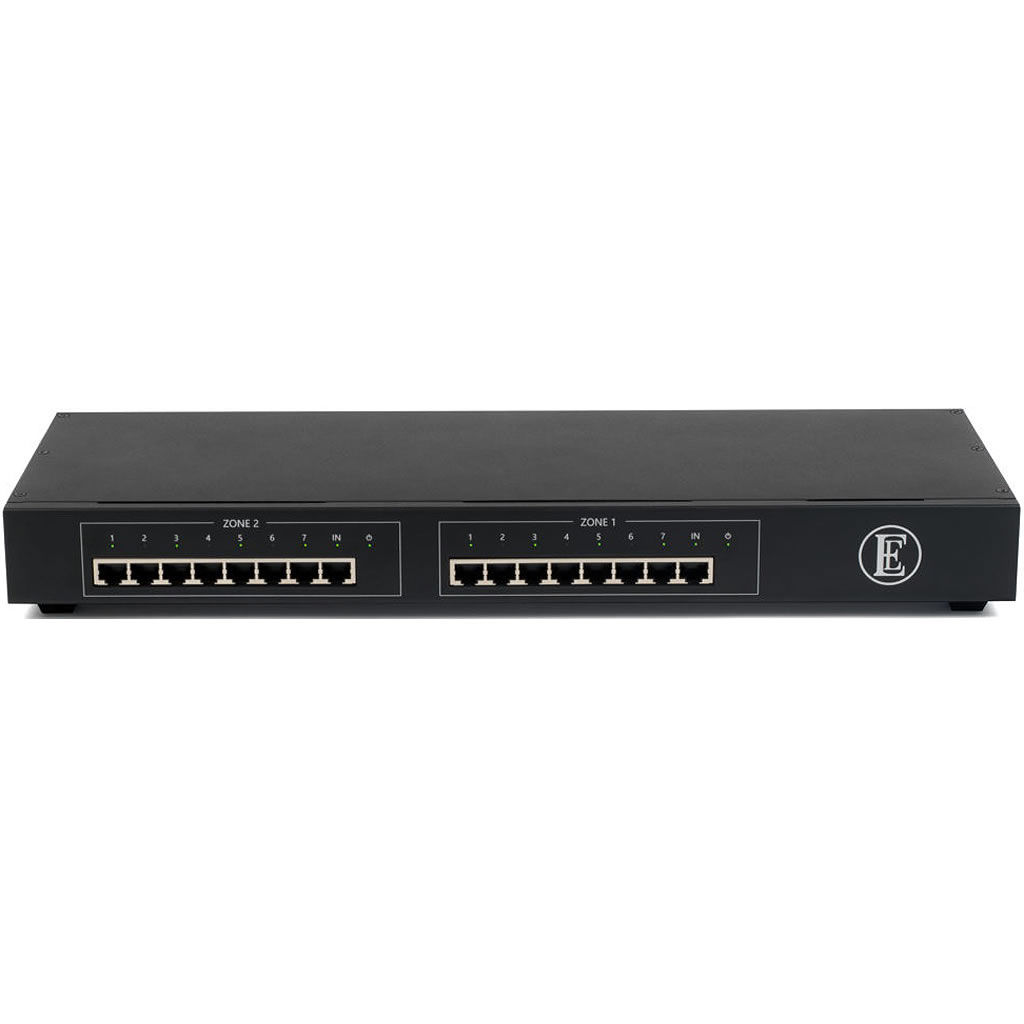

The discreet front-panel LED display includes power, alarm, link status and link speed for the 16 ports; the 100/1000 Base-T Gigabit Ethernet ports are suitable for all home network appliances.
16Switch advanced power supply
With data switches requiring high-speed power supplies, the use of linear power devices is negated, due to speed limitations. The 16Switch stays with this philosophy and each zone is powered by its own high-quality low-noise power supply.
These advanced A/V-grade power supplies permit an optimum-quality network signal, with each zone being driven by high-accuracy clock technology which has been designed to reduce electrical noise from AC sources, and significantly reduce mains quality issues from affecting network signals. The 16Switch also boasts high power efficiency, a no-load power consumption of < 0.075 W, plus protection from short circuit, overload and over-voltages for each zone.
