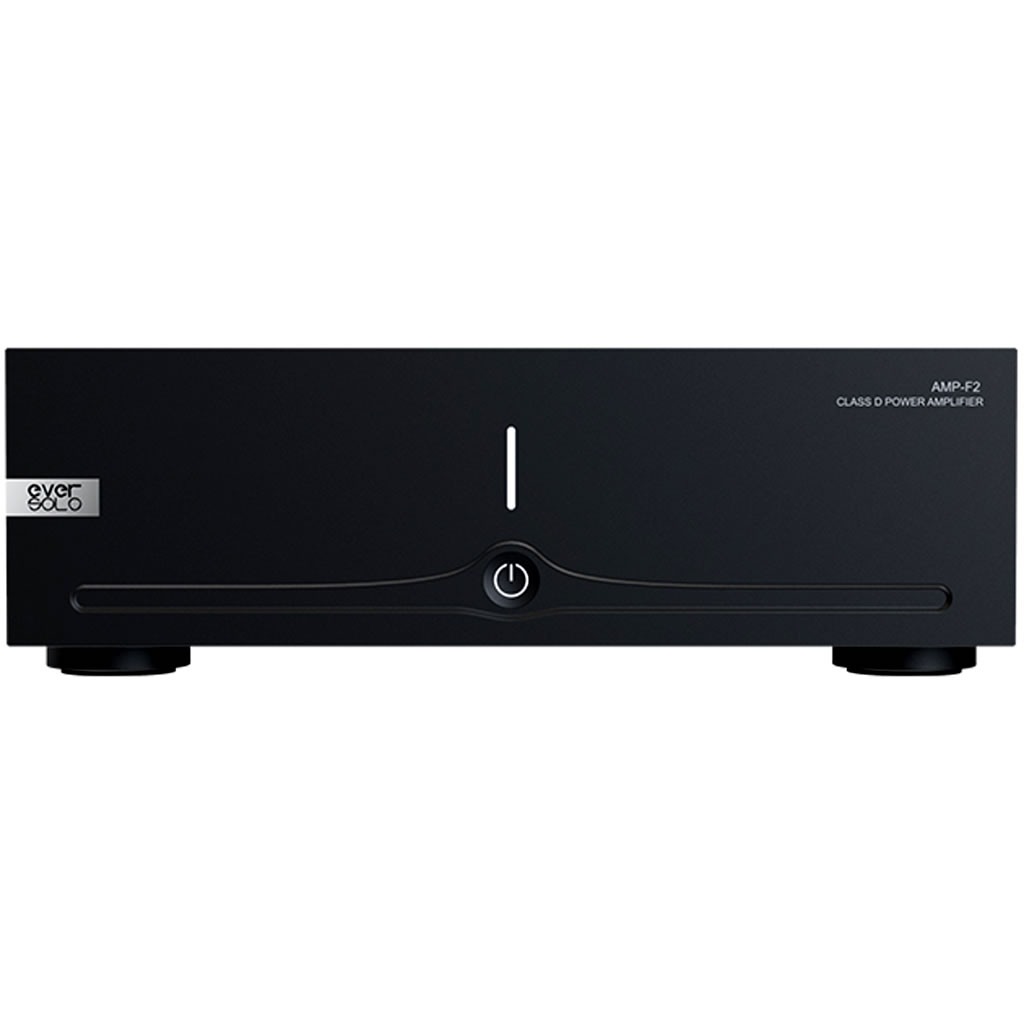

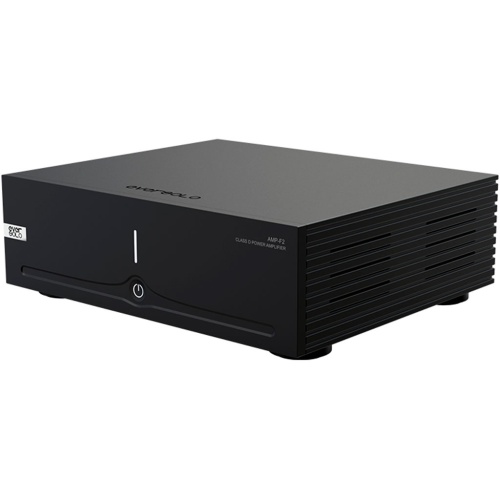

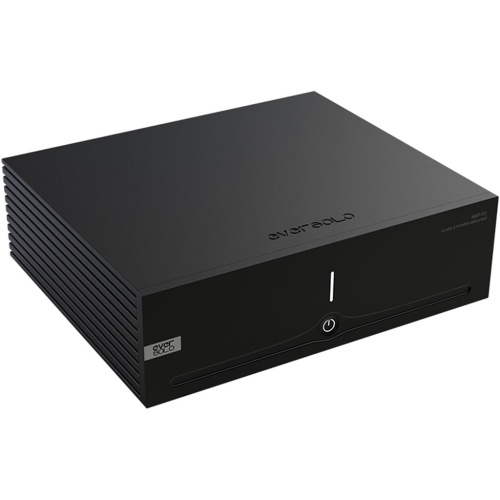

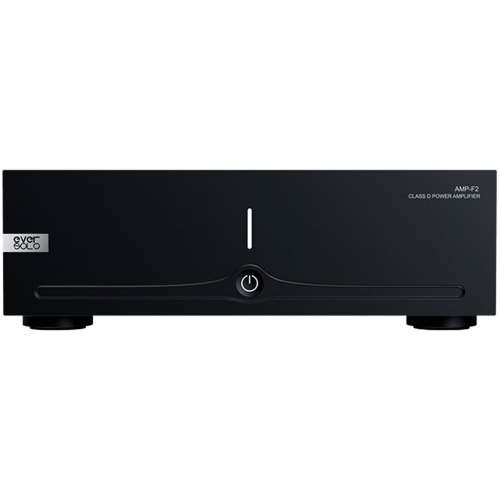

EverSolo AMP-F2 Audio Power Amplifier

EverSolo AMP-F2 Audio Power Amplifier

The AMP-F2, developed in collaboration between the Starke Sound team and the Eversolo team, is based on the innovative INS600 module created by the Starke Sound team in California.

It boasts a high sampling rate of up to 600KHz. Simultaneously, it significantly reduces noise and enhances dynamic performance through the newly designed SAPS audio-specific switch power supply. It employs an efficient Class D amplification structure, coupled with optimized circuits to maximize audio quality.

• The AMP-F2 is bridgeable, allowing flexible configuration for 2-channel or mono-channel setups when needed.
• The AMP-F2 is equipped with Starke Sound's NS600 amplifier module, each channel can output a constant 250W RMS (40) @ 1% THD+N.

When bridged, it can support up to 450W RMS (22) with THD+N still below 1%. This ability to handle extremely low-impedance loads ensures ample energy even in large and challenging speaker setups, particularly during high-dynamic low-frequency outputs.

Accurate Sound - Perfect Experience
The NS600 module employs PurePath™ Ultra-HD technology and advanced integrated feedback design, featuring high-speed gate driver error correction functions. This technology achieves ultra-low distortion across the entire audio frequency range, delivering perfect high-end audio quality.

Utilizing a 600W high-efficiency, low-ripple, low-EMI switch power supply, it delivers consistent and powerful output, extremely low noise, enhancing the overall dynamic performance of the system.

• The AMP-F2 has also been developed to offer the perfect system combination with DMP-A6 and DMP-A8.

Environmentally Friendly Low Power Consumption
AMP-F2 has an extremely low standby power (0.5W) and idle power consumption (14W), complying with the European Union ErP standards. Complete self-protection and anti-interference design to avoid disturbances from various electrical environments.

Equipped with a powerful 12V trigger on the AMP-F2 amplifier, this 3.5mm mini-jack connection allows you to create a simple network between all Eversolo products and AMP-F2, ensuring a seamless power on and standby experience. Once connected, it enables one Eversolo product to control the power supply of all other products in the system. When you power on a single device, the rest of the system will automatically turn on.

Output Power

• 280W RMS at 4Ω（1%THD，per channel）130W RMS at 8Ω（1%THD，per channel）

Bridge Mode Output Power

• 450W RMS at 2Ω（Bridge Mode）

Channel quantity

• 2 Channels - Stereo Mode
• 1 Channel - Bridge / Mono Mode

Amplifier type

• Class D

Frequency Response

• 10Hz-20kHz -1.2dB

Maximum output current

• 16.5A（per channel）/ 33A（Bridge）

Signal-To-Noise Ratio（SNR）

• >110dB,"A" weighted 4Ω 260W

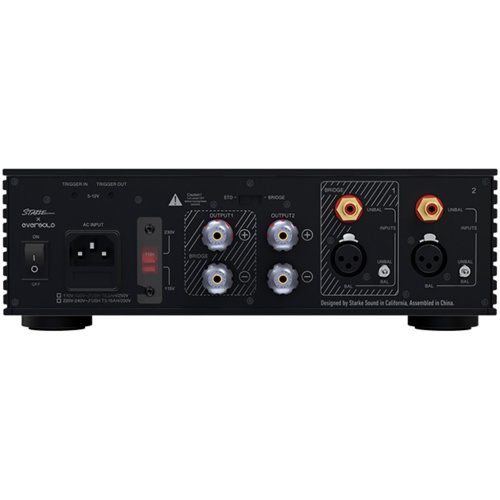

Input terminals

• 2-Channel RCA Input ；2-ChannelXLR Input

Input Impedance

• RCA 10.5K ohm /XLR 21.7K ohm

Output terminals

• 2 pairs beryllium copper binding post，custom made by Starke Sound

Output Impedance

• 0.09 ohm 1kHz

Damping coefficient

• 100

Sizes

• W 270 mm x D 228 mm x H 90 mm (w/ foot))

Weight

• 3.65Kg
