EverSolo DMP-A10 Streaming DAC

EverSolo DMP-A10 Streaming DAC

Masterpiece Flagship - Experience Heavenly Sound

Crafted Like a Piece of Art
The DMP-A10 chassis blends modern aesthetics with romanticism, precision-engineered with CNC technology. At 430mm, it fits seamlessly into high-end audio systems, combining functionality and elegance.

Precision Meets Purity
With a high-speed electrical isolation system , the DMP-A10 separates noise and interference from different circuit boards. The complete physical isolation eliminates any possible interference to audio circuits in the transmission of system circuit signals, ensuring that the audio signal remains pure and undisturbed. The display panel features a shielding design as well, resulting in outstanding audio clarity and precision for an unrivaled listening experience.

Isolated USB Audio, Ultimate Accuracy
By incorporating an advanced electrical isolation circuit, the DMP-A10 minimizes interference from high-noise power sources and grounding loop issues when connecting external DACs and USB devices. Utilizing iCoupler ® technology, it transmits both the clock signal and data to the isolated side in the correct time order and then resynchronizes them to maintain consistency. This ensures that USB signals are transmitted with high fidelity, reducing jitter and maintaining signal accuracy.

Double Subwoofer Output
Featured two subwoofer output ports, the DMP-A10 allows you to connect single or dual subwoofers as needed, or even disable the subwoofer function. MIXER and STEREO modes can be switched with ease, independent adjustments of subwoofer gain, crossover frequency, and delay are available as well.
(*Subwoofer function is only available for PCM signals below 192KHz.)

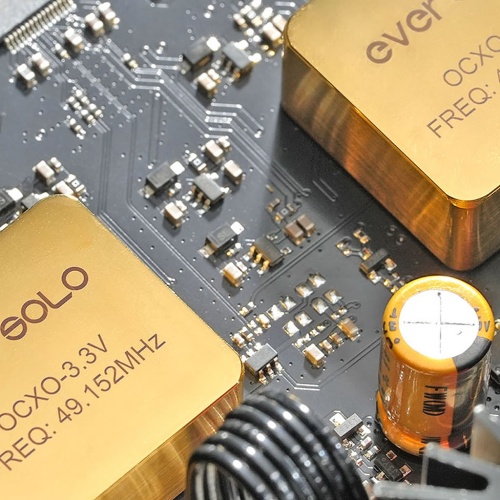

OCXO Clock System
The Eversolo custom-developed temperature control technology for OCXO clock system ensures both audio crystal oscillators(45.1584MHz and 49.152MHz) operate at a constant optimal temperature point, thus eliminating frequency fluctuations caused by temperature changes, delivering extremely low phase noise. Each oscillator undergoes a strict testing process. Therefore, with jitter levels below 50fs, more accurate clock signals are provided to the audio system, adding more clarity, detail and air in sound.

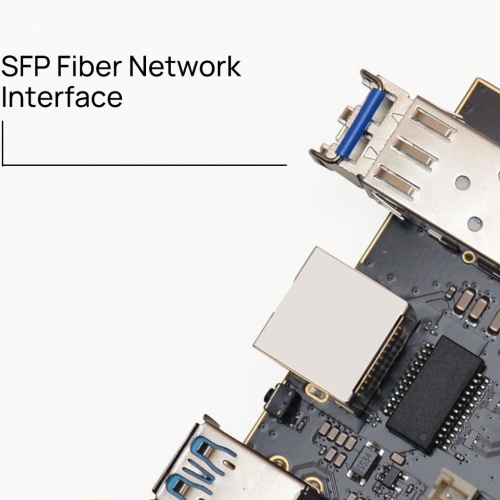

SFP Fiber Network Interface
To eliminate interference from high-frequency noise in network switches and other network equipment, the DMP-A10 introduces an SFP Fiber port, allowing users to connect DMP-A10 to local network via fiber optics. In this case, cleaner audio is delivered without electrical connection between the network switch and the DMP-A10. Traditional RJ45 Ethernet connections are also supported for easy integration. (*SFP module needs to be purchased separately.)

Crystal Clear Audio
Featured with excellent conductivity and signal transmission, silver-plated single-crystal copper wires are used to connect DMP-A10's audio terminals, bringing extra benefit to audio with more clarity, transparency and details

Room Correction Technology
With Eversolo Digital Room Correction, the DMP-A10 analyzes your listening environment with the high-precision microphone, adjusting sound frequencies through complex algorithms to eliminate acoustic issues. The result? A listening experience that feels more immersive and lifelike, tailored specifically to your space.

Robust Power, Ultra-Low Noise
To further enhance sound purity, the DMP-A10 features dual power supplies with ultra-low background noise, providing stable power output for both the digital system and analog audio circuits. The ripple of the analog audio power supply can be reduced to below 30µVrms, creating a quiet and pure listening environment. Additionally, it incorporates a patented intelligent switching technology for the linear power supply voltage input, enabling compatibility with voltages worldwide without flipping switches.

Fully Balanced Analog Preamplifier Circuit
The DMP-A10 is equipped with a high-performance fully balanced preamp circuit, supporting XLR/RCA analog inputs. It features a +10dB analog gain and the R-2R analog volume control, ensuring ultra-low noise and distortion, providing better signal-to-noise ratio, dynamic range, and other performance metrics.

Powered by EOS
The Eversolo Original Sampling-rate Audio Engine(EOS) ensures original sample rate output from your favorite music apps. The DMP-A10 bypasses the SRC limitations, sending audio to your speakers without any changes. It also supports direct output from third-party apps like Apple Music for high-resolution lossless playback.

Cutting-Edge Global Technology
As a flagship all-in-one streamer, material selection for DMP-A10 is extremely meticulous. The DMP-A10 is built with audiophile-grade components from worldwide. WIMA capacitors from Germany, TI audio operational amplifiers from US, NICHICON audiophile capacitance and Murata SMT parts from Japan, every detail is engineered for superior sound quality.

XMOS316 Audio Processor
using the third-generation XMOS316 processor, the DMP-A10 delivers faster processing and USB bandwidth, supporting lossless transmission of audio data. USB ports support up to DSD512 Native and PCM768kHz@32bit. Optical and Coaxial ports support DOP64, PCM192kHz@24Bit.

Next-Level DAC Solution
Powered by the industry-leading ES9039PRO DAC chip, the DMP-A10 brings audio to life with its HyperStream IV architecture and enhanced signal processing capabilities, significantly reducing distortion and noise to provide pure audio output. It also introduces a new clock management series to minimize the impact of jitter on audio signals.

Stream Your Favorite Music Services
Enjoy direct access to mainstream music services on DMP-A10. Whether it’s TIDAL, Qobuz, Amazon Music, Tuneln, IDAGIO, Radio Paradise, SoundCloud, Calm Radio, KKbox or Highresaudio, the DMP-A10 covers it all. (More music services will be added in the future.)

Wireless Streaming Hub
With support for Roon Ready*, Tidal Connect, Squeeze Connect, and DLNA protocols, the DMP-A10 serves as your streaming hub at home. Wherever you are in your house, just sit back and enjoy.

Home Music Center
In addition to two high-speed USB 3.0 ports and two sets of SSD slots, the DMP-A10 supports NFS, SMB, UPnP, and more sharing protocols, allowing you to stream media from NAS devices or network drives effortlessly. Even high-bitrate files like DSD512 master recordings can be played without stuttering. Additionally, it supports loading and playing music from WebDAV, Plex, Emby and Jellyfin.

Magical Volume Control
A fully balanced analog volume adjustment network composed of precision resistors and relays achieves accurate volume control, effectively suppressing distortion and noise in the analog signal. It also features volume protection, automatically reducing excessive volume to the designated safe level when startup or switching inputs. The incorporation of R2R analog volume control ensures that the DAC can operate at its optimal Bypass state continuously.

Control at Your Fingertips
The DMP-A10 comes with multiple control options. Except for the touch screen and mobile control application, there is a Bluetooth and infrared remote control included with the device. Made from a single cast of alloy material, the remote has a refined and streamlined appearance that fits perfectly in your hand, providing effortless control over your music.

Bigger and Better
The upgraded control panel features a larger touch screen display for an immersive user experience. With operation experience similar to mobile devices, the DMP-A10's fully intelligent music interface is intuitive and smooth, offering better viewing experience like larger album art displays. It is designed not only for exceptional sound but also for a luxurious visual enjoyment.

Global Music Search
With the DMP-A10, you can search across multiple music services in one go, making it easier than ever to find your favorite tracks, seamlessly connecting to all your music services.

*Note: Integrated music services require account login to enable global search.

Master-grade Playback
The DMP-A10 supports almost every high-resolution music format on the market, as well as common CD-quality lossless music files like FLAC, WAV, APE, SACD ISO, and DSD (dsf/dff/ dst), delivering a rich auditory feast.

Local Storage Expansion
Two M.2 NVMe SSD slots on the bottom allow for up to 4TB*2 storage expansion. With convenient installations and better thermal design, it provides fast and stable support for high-quality local playback; External Storage devices can be connected through the USB 3.0 port as well.

Perfect Sound, Anytime
The DMP-A10 features a 10-band PEQ(Parametric Equalizer) module, allowing precise adjustments to specific frequencies, gain, and Q factors, which significantly enhances sound quality. In different listening environments, sound reflections and absorptions can vary, causing certain frequencies to be too strong or weak. By using PEQ fine-tuning, the DMP-A10 ensures that the sound remains natural and pleasing. Additionally, it supports FIR filter imports, loudness adjustments, and dynamic compression.

Stylish VU Meters
The DMP-A10 tailored multiple dynamic VU meters for audiophiles;

The music sounds great, and also looks good!

Highly Intelligent
The DMP-A10 features a built-in UI and mobile app control for iPhone, Android, and iPad devices. Beyond basic playback and system settings, the app offers direct access to your music library and streaming services. Whether you're selecting a song or enjoying album arts, it delivers anything you need conveniently. It also comes with a dual-mode remote control (infrared and Bluetooth), and a Trigger Out interface to achieve coordinated control of your back-end devices; Additionally, it offers Wake-on-LAN function(requires wired network connection).

Personalized Music Management
The Eversolo provides a comprehensive and nice-looking local music library. You can add music files from local drives or network storage devices, and the library automatically fetches available music metadata from the cloud, matching album covers, artist information, and CUE files. You can create custom playlists, organizing music by different tags such as genre, sample rate, album and artists.

Preserving Timeless Quality
The DMP-A10 allows CD playback and ripping by connecting a USB optical drive. Using a unique data verification and error correction mechanism, it ensures the lossless preservation of CD audio data. The CD app includes a smart algorithm to fetch album and track names(for officially released CDs), automatically generating information for albums and artists.

Note: Metadata retrieval is not guaranteed for all CDs. Online databases may not always have up-to-date information.

Qualcomm Bluetooth
With Qualcomm’s QCC5125 chip, Bluetooth 5.0 connectivity offers the convenience of wireless streaming without compromising sound quality.

Hi-Res Audio Certified
The Eversolo DMP-A10 has been certified by the Japan Audio Society(JAS) for high-resolution audio, ensuring trustworthy sound quality.

OTA Online Upgrade
The Eversolo DMP-A10 supports continuous OTA online upgrades, providing you with an enhanced experience and user-friendly service at all times.

Model: EVERSOLO DMP-A10
Display: 6.5" LCD touchscreen
Internal Memory: 4GDDR4 +64GeMMC
DAC: ES9039 PRO
Audio Processor: XMOS XU316

Op-amp Chip: OPA1612
Power Supply: 2 High-quality, low-noise linear power supply
SSD: Support M.2 NVME 3.0 2280 protocol, up to 4TB 2 (SSDs aren't included).
USB-A Port: USB3.0*2
Ethernet: RJ-45(10/100/1000Mbps)

• SFP Fiber Ethernet: Supports external single-mode single-fiber and single-mode dual-fiber SFP modules (SFP modules need to be purchased separately).

WiFi: 2.4G+5G dual band
Playback and DAC Decoding: Support up to stereo DSD512, PCM 768KHz 32Bit
Music Service: Tidal, Qobuz, Highresaudio, Amazon Music, Deezer, Radio Paradise, TuneIn Radio, Apple Music, KKBOX, WebDAV, UPnP

Streaming: Roon Ready (Certification in progress) Squeezelite, DLNA, Tidal Connect etc.
Bluetooth Audio Input: BT5.0, support SBC/AAC
Isolation USB-B Audio Input: Supports Windows (10, 11), Android, IOS. Support up to stereo DSD512, PCM 768KHz 32Bit.

• Supports ADC acquisition, with a maximum support of 192kHz.

HDMI ARC: Support up to stereo PCM 192KHz 24Bit
Analog preamp audio input: XLR(Balanced), 1+RCA, 2(Unbalanced), Maximum Gain +10dB.
Isolation USB Audio Output: Support up to stereo DSD512, PCM 768KHz 32Bit

Optical/Coaxial Audio Output: Support up to stereo PCM 192KHz 24Bit, Dop64

• When routed through the DSP module, it supports a maximum of stereo PCM 96kHz.

Optical/Coaxial Audio Input * 2: Support up to stereo PCM 192KHz 24Bit, Dop64
Analog Audio Output: Preamp Audio Output:XLR(Balanced) +RCA(UnBalanced)

XLR Output Audio Characteristics:

• Output level: 4.2V
• Frequency response: 20Hz-20KHz(±0.15dB)
• Dynamic range: > 130dB,
• SNR: >130dB
• THD+N: <0.000078% (-122dB) @No-wt
• Crosstalk: >-123dB

RCA Output Audio Characteristics:

• Output level: 2.1V
• Frequency response: 20Hz~20KHz (±0.15dB) Dynamic range: > 129dB
• SNR: >129dB
• THD+N: <0.00009% (-121dB)@A-WT
• Crosstalk: >-122dB

Control Method: Mobile App, Touch screen control, IR+Bluetooth remote control
PSU: AC 110~240V 50/60Hz
Rated Power: 44W
Dimensions: W 430mm*L 310mm* H 117mm
Packing List: Power Cable*1, Trigger Cable*1,Remote Control*1,Antenna*3, User Manual*1

• Subwoofer OUT* 2
• Support Stereo Mode / Mixer Mode
