Exposure 3510 Integrated Amplifier

Exposure 3510 Integrated Amplifier
  Zoom
Exposure 3510 Integrated AmplifierExposure 3510 Integrated AmplifierExposure 3510 Integrated AmplifierExposure 3510 Integrated AmplifierExposure 3510 Integrated AmplifierExposure 3510 Integrated Amplifier
£2,600.00
(£2,166.67 Exc. VAT)




Delivery In 1-2 Weeks

Free U.K. Delivery

Availability

Enquire now to purchase
01892 532 995

awards and reviews

HIFI NEWS

HIFI NEWS

HIFI WORLD

HIFI WORLD

HIFI CHOICE

HIFI CHOICE

  • 110W RMS per channel into 8 Ohms
  • Option to fit MM/MC phono module
  • Option to fit DAC module
  • Bi-wiring compatible
  • Separate preamp output
Exposure
Secured by Thawte

Why buy from us?

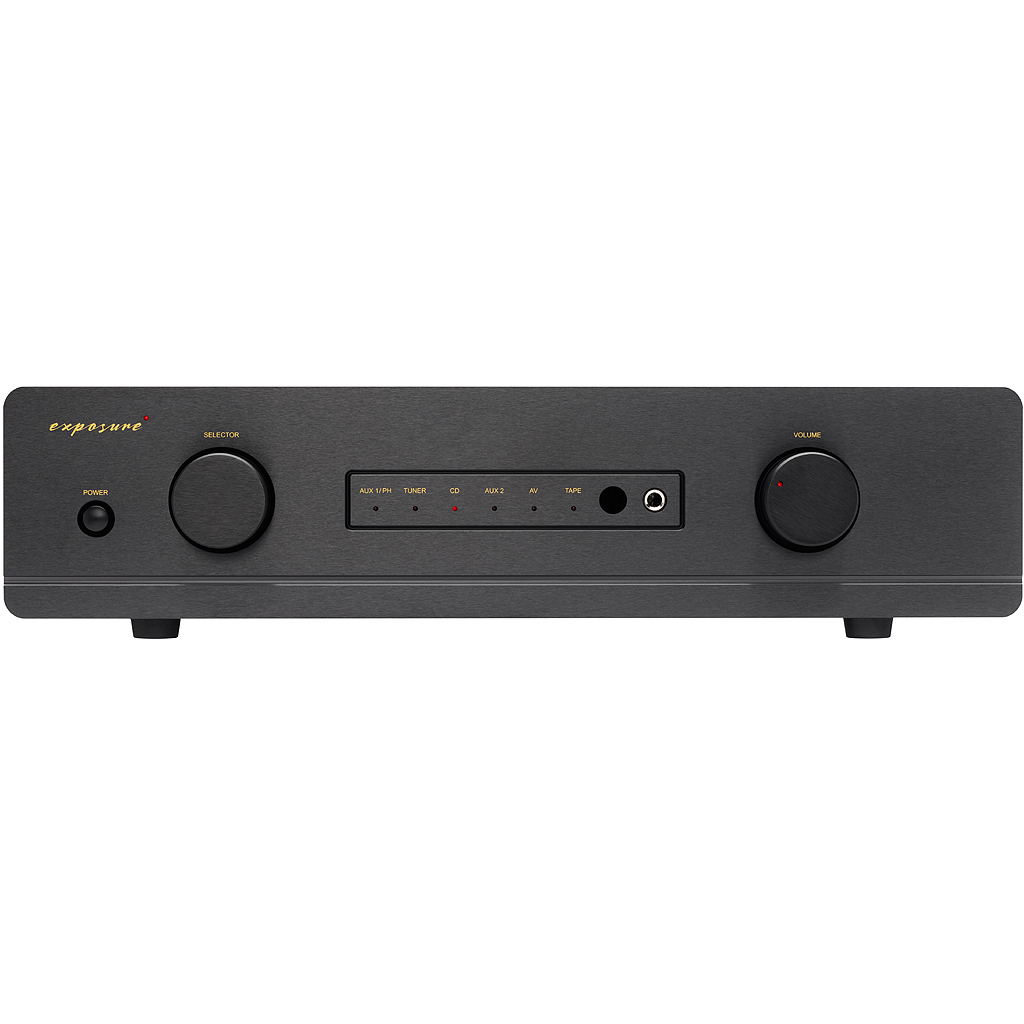

Exposure 3510 Integrated Amplifier

The new Exposure 3510 integrated amplifier replaces the previous model and provides additional features and a performance boost over the already highly rated and revered 3010s2D.

Features:

  • 110W RMS per channel into 8 Ohms
  • Six line inputs
  • Option to fit a MC or MM phono module OR plug in DAC option
  • Bi-wiring compatible
  • Separate preamp output
  • High quality capacitors used in the signal path
  • Uniquely tuned short signal and power supply path PCB
  • Cascode circuitry utilised for improved power supply immunity
  • Fast bipolar transistor output stage for dynamic and vivid performance
  • All aluminium casework and extruded front panel to control resonance and stray electromagnetic fields
  • Remote control
  • Three year guarantee

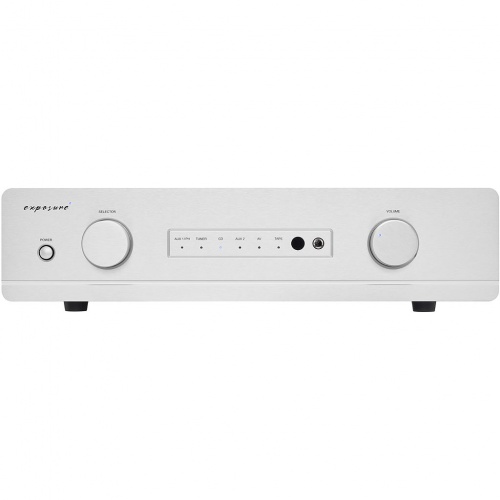

  • Available in black or titanium

Expansion Cards:

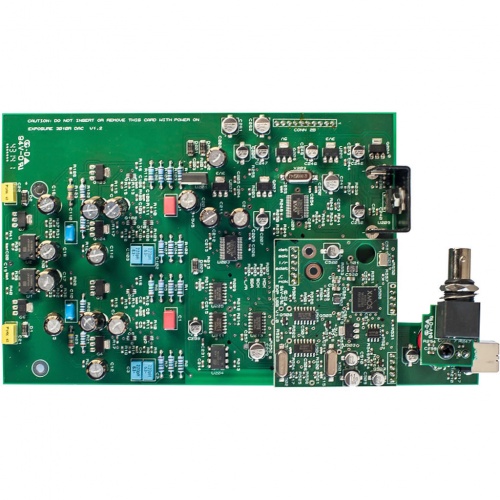

DAC Board: All discrete transistor output stage

  • High quality parts used throughout
  • Tight tolerance parts used for analogue filtering
  • Low noise audio stage power supply regulators

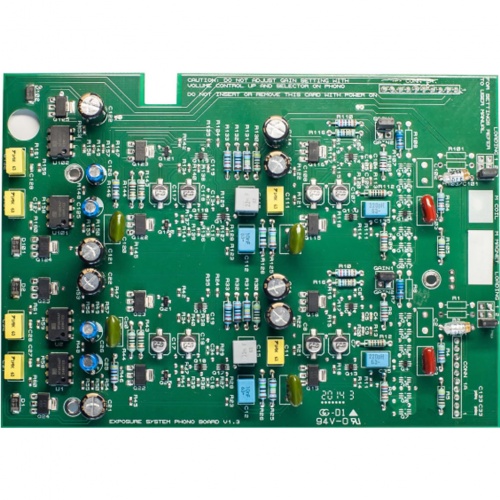

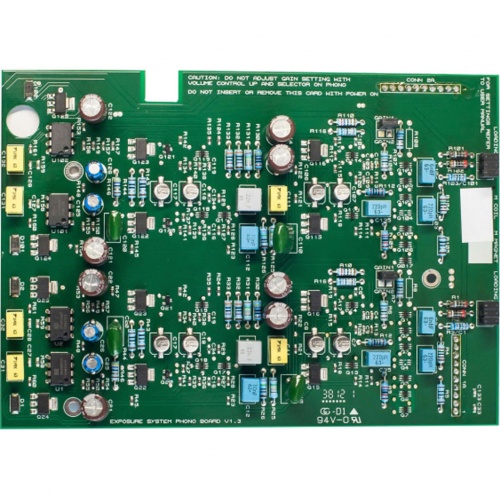

Phono Card MM/MC: All discrete transistor audio stages

  • High quality parts used throughout
  • Tight tolerance parts used for accurate equalisation
  • Low noise power supply regulators
  • DC coupled input stage
Shipping typically 1-2 weeks
  • 110W RMS per channel into 8 Ohms
  • Six line inputs
  • Option to fit a MC or MM phono module OR plug in DAC option
  • Bi-wiring compatible
  • Separate preamp output
  • High quality capacitors used in the signal path
  • Uniquely tuned short signal and power supply path PCB
  • Cascode circuitry utilised for improved power supply immunity
  • Fast bipolar transistor output stage for dynamic and vivid performance
  • All aluminium casework and extruded front panel to control resonance and stray electromagnetic fields
  • Remote control
  • Three year guarantee
  • Available in black or titanium

Outputs:

  • Power Output (Stereo): 110W per channel at 1kHz into 8 Ohms

Pre-Amplifier

  • Pre-Amplifier Output: 1.9V for rated input (gain *18dB full volume)
  • Maximum Output: 7.7V RMS @ 1kHz
  • Frequency Response: 20Hz - 20kHz + 0.5dB
  • Total Harmonic Distortion: <0.03% at rated output, ref. 1kHz
  • Signal to Noise Ratio: >100dB, ref. rated output
  • Channel Separation: >60dB 20Hz - 20kHz

Headphone

  • Output Impedance: <12 Ohms at 1kHz
  • Maximum Level into 33 Ohms at 1kHz & 0.05% THD: 4.8V RMS, (700mW)
  • Total Harmonic Distortion at 2V Output 1kHz: <0.02%, (120mW)
  • Maximum Level into 330 Ohms at 1kHz & 0.02% THD: 7V RMS (150mW)

Inputs (Line)

  • Input Impedance: 76 Ohms minimum (line input)
  • Input Sensitivity: 250mV

General

  • Mains Supply: 110/120V or 220/240V, 50/60 Hz (factory set)
  • Fuse: TSAL for 110/120V units, T4AL for 220/240V units
  • Power Consumption: <400W, 8 Ohms load, both channels driven
  • Dimensions (HxWxD): 115mm x 440mm x 300mm
  • Net Weight: 12kg
  • Gross Weight: 14kg

Expansion Cards:

DAC Board:

  • 2V RMS output for full scale input
  • THD @ 1KHz < 0.005%
  • One Coax (BNC) input sample rate supported: 32, 44.1, 48, 88.2, 96, 176.4 & 192kHz @ up to 24 bits
  • USB2 input sample rate supported: 44.1, 48, 88.2, 96, 176.4 & 192kHz PCM @ up to 24 bits, DSD x64 (DoP)

Phono Card MM (Sensitivity and Signal to Noise, ref 1 kHz and 250mV Out):

  • GAIN 1 jumper fitted: 2.5mV, >78 dB S/N (default setting)
  • No jumper fitted: 5mV, >79 dB S/N
  • 47K Ohms
  • Or With Loading 1 Fitted: Additional 220pF in parallel with the cartridge (default)

Phono Card MC (Sensitivity and Signal to Noise, ref 1 kHz and 250mV Out ):

  • GAIN 1 jumper fitted: 2.5mV, >68dB S/N (default setting)
  • No jumper fitted: 5mV, >70 dB S/N
  • 6n8 in parallel with 1K5 Ohms
  • Or With Loading Jumpers Fitted: 1+2+3 100 Ohms (default), 1+2 110 Ohms, 1+3 130 Ohms, 2+3 210 Ohms, 1 160 Ohms,  2 310 Ohms, 3 470 Ohms
