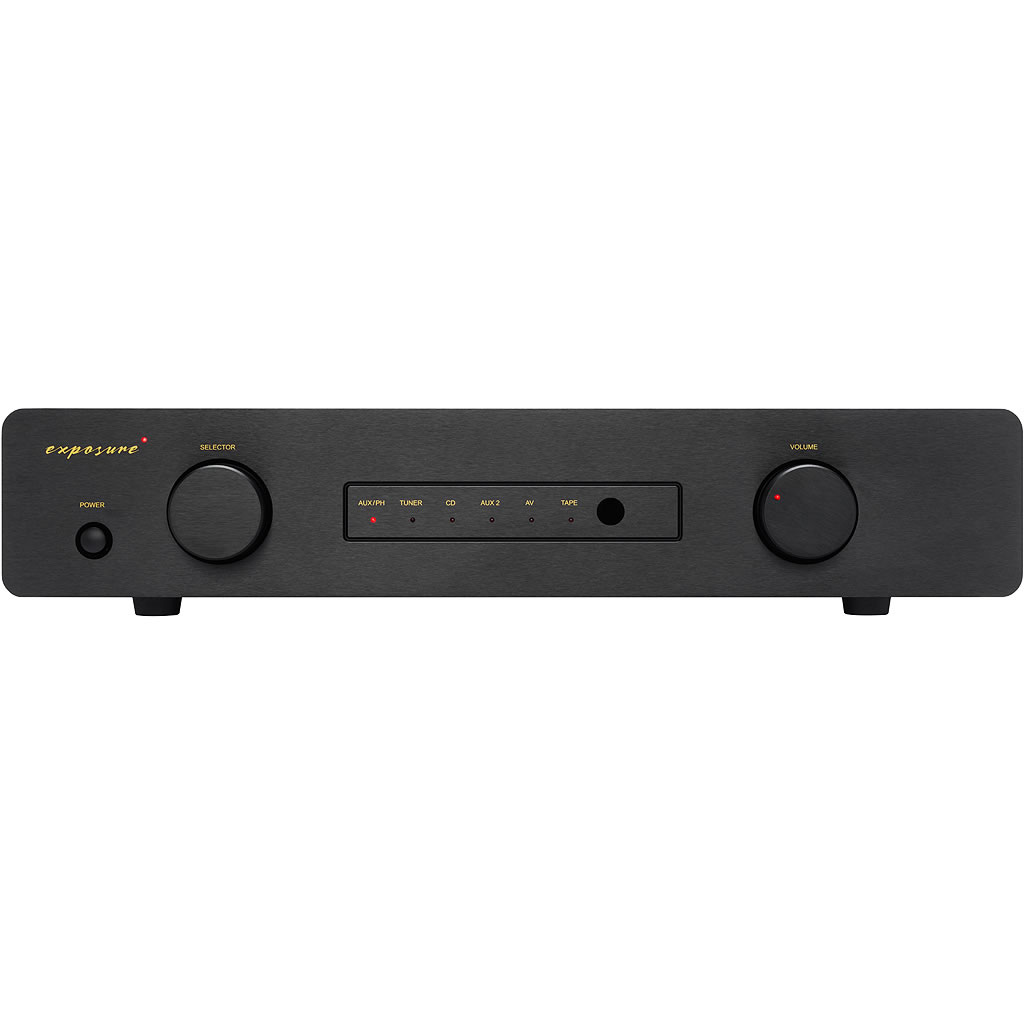

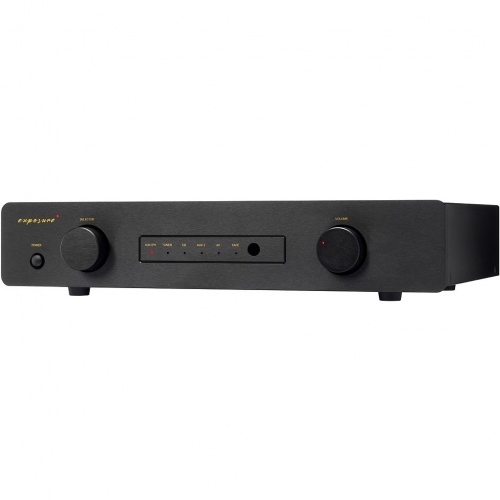

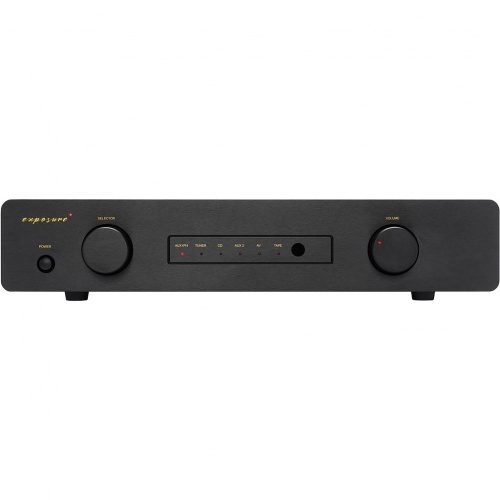

Exposure 3510 Pre-Amplifier

Exposure 3510 Pre-Amplifier

The 3510 series is for the new generation of music lovers.

Designed to introduce you to the distinctive Exposure sound, the 3510 series comprises an integrated amplifier, pre-amplifier and phono card for moving magnet (MM) and moving coil (MC).

Hooking these up to a proper set of speakers takes just a few minutes. However, listening to your favourite music all over again will take hours... as you tickle your ears with real hi-fi sound. It's all about tuneful bass, sparkling high frequencies and an open mid-band that brings the performers into your room... at a price that will leave you smiling.

This is how hi-fi is supposed to be - simple, affordable and fun. affordable and fun.

Expansion Card:

DAC Board: All discrete transistor output stage

• High quality parts used throughout
• Tight tolerance parts used for analogue filtering
• Low noise audio stage power supply regulators

Phono Card MM/MC: All discrete transistor audio stages

• High quality parts used throughout
• Tight tolerance parts used for accurate equalisation
• Low noise power supply regulators
• DC coupled input stage

• Large custom made toroidal power transformer and smoothing capacitors for power supply
• Option to fit a MC or MM phono module OR plug in DAC option

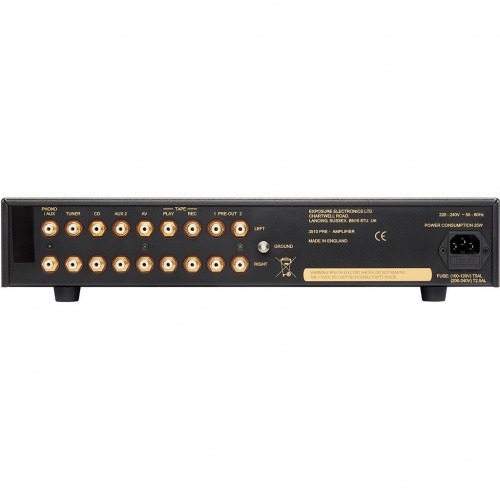

• 6 line inputs or 5 plus optional phono card, 2 main out (RCA) and 1 tape output
• High quality relays used for input source selection
• Full remote control of input selector, volume and mute
• Audio output stages utilising discrete transistor class A output buffer
• High quality all aluminium case work
• Remote control
• Three year guarantee
• Available in black or titanium

Outputs

• Output Level: 1.9V for rated input (gain +18dB full volume)
• Maximum Output: 7.7V RMS @ 1kHz
• Frequency Response: 20Hz - 20kHz ± 0.25dB
• Total Harmonic Distortion: <0.005%, @ 1kHz, ref rated output
• Signal to Noise Ratio: >100dB, A weighted

Inputs

• Input Impedance: 18K Ohms minimum
• Input Sensitivity: 250mV

General

• Mains Supply: 110/120V or 220/240V, 50/60Hz (factory set)
• Fuse: T5AL for 110/120V units
• Power Consumption: <25W
• Dimensions (HxWxD): 90mm x 440mm x 300mm
• Net Weight: 7kg
• Gross Weight: 9kg

Expansion Cards:

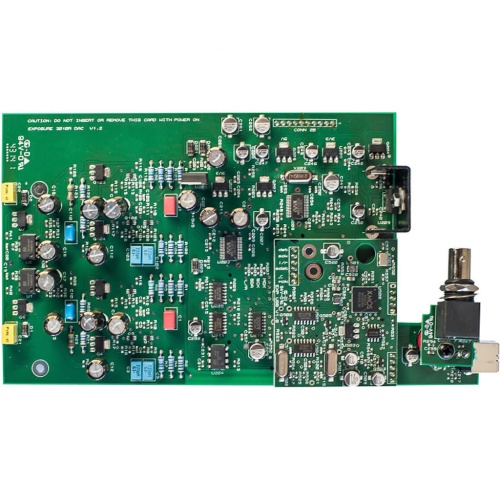

DAC Board:

• 2V RMS output for full scale input
• THD @ 1KHz < 0.005%
• One Coax (BNC) input sample rate supported: 32, 44.1, 48, 88.2, 96, 176.4 & 192kHz @ up to 24 bits
• USB2 input sample rate supported: 44.1, 48, 88.2, 96, 176.4 & 192kHz PCM @ up to 24 bits, DSD x64 (DoP)

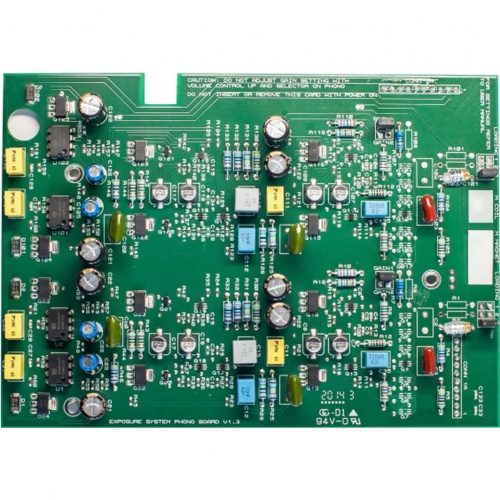

Phono Card MM (Sensitivity and Signal to Noise, ref 1 kHz and 250mV Out):

• GAIN 1 jumper fitted: 2.5mV, >78 dB S/N (default setting)
• No jumper fitted: 5mV, >79 dB S/N
• 47K Ohms
• Or With Loading 1 Fitted: Additional 220pF in parallel with the cartridge (default)

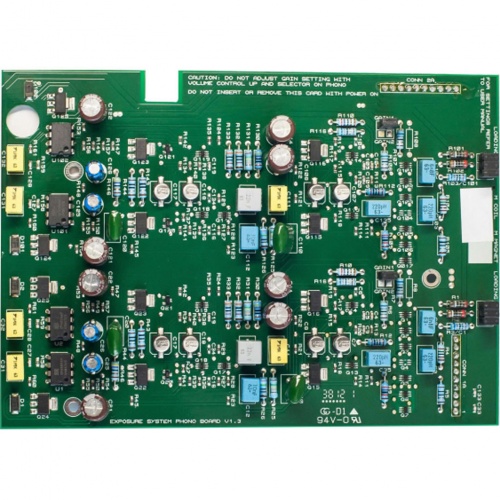

Phono Card MC (Sensitivity and Signal to Noise, ref 1 kHz and 250mV Out ):

• GAIN 1 jumper fitted: 2.5mV, >68dB S/N (default setting)
• No jumper fitted: 5mV, >70 dB S/N
• 6n8 in parallel with 1K5 Ohms
• Or With Loading Jumpers Fitted: 1+2+3 100 Ohms (default), 1+2 110 Ohms, 1+3 130 Ohms, 2+3 210 Ohms, 1 160 Ohms,  2 310 Ohms, 3 470 Ohms
