Exposure 5010 Pre Amplifier

Exposure 5010 Pre Amplifier

• Large custom made toroidal power transformer and multiple smoothing capacitors for power supply
• Option to fit a MC or MM phono module OR plug in DAC option

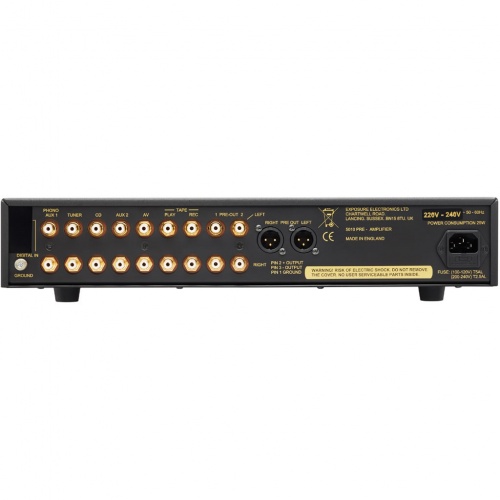

• 6 line inputs or 5 plus optional phono card, 2 main out (RCA), 1 XLR main out and 1 tape output
• High quality relays used for input source selection
• Full remote control of input selector, volume and mute
• Audio output stages utilising discrete transistor class A output buffer
• Balanced pre amp output, DC coupled
• High quality all aluminium case work
• Remote control
• Three year guarantee

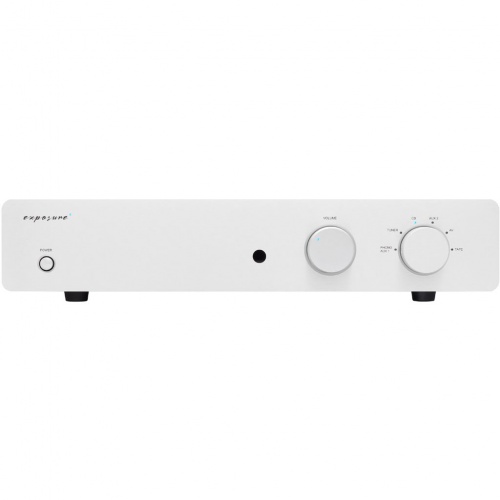

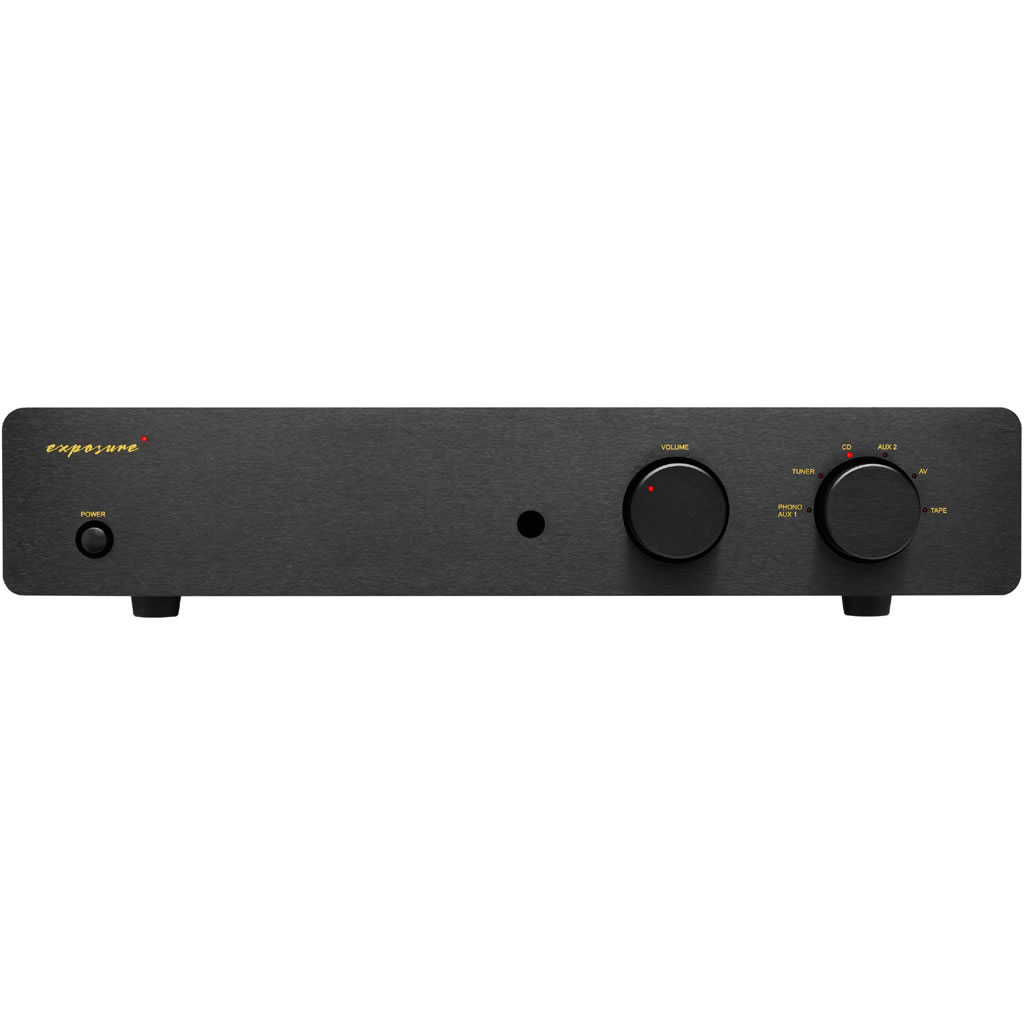

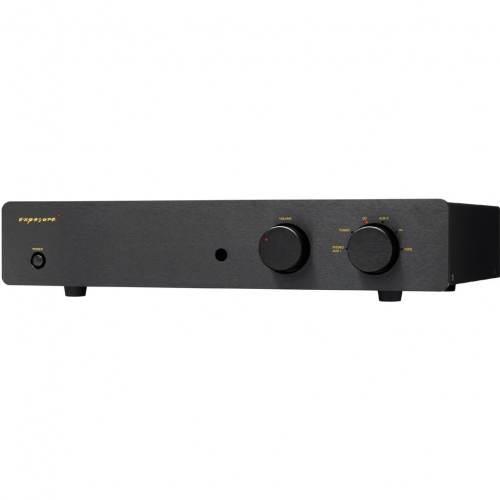

• Available in black or titanium

• Large custom made toroidal power transformer and multiple smoothing capacitors for power supply
• Option to fit a MC or MM phono module OR plug in DAC option
• 6 line inputs or 5 plus optional phono card, 2 main out (RCA), 1 XLR main out and 1 tape output
• High quality relays used for input source selection
• Full remote control of input selector, volume and mute
• Audio output stages utilising discrete transistor class A output buffer
• Balanced pre amp output, DC coupled
• High quality all aluminium case work
• Remote control
• Three year guarantee
• Available in black or titanium

• Gain (at 1KHz) : +9dB unbalanced output, +15dB balanced output
• Sensitivity : 500mV
• Maximum Output : >9V RMS unbalanced
• Frequency Response : -3dB at 1Hz and 57KHz, ref 1KHz, max volume
• Total Harmonic Distortion : <0.005% at 1.6V RMS output, 1KHz
• Signal to Noise Ratio : >98dB, A weighted, ref 1.6V RMS output, 1KHz
• Channel Separation : >60dB 20Hz to 20Hz (Typically >85dB at 1KHz)
• Outputs : 2 pairs RCA, pre amp output, 1 pair for tape output
• Mains Supply : 110/120V or 220/240V, 50/60Hz (factory set)
• Power Consumption : <25W
• Dimensions - H x W x D : 90mm x 440mm x 300mm (inc knob)
• Nett Weight (unpacked) : 6kg
• Gross Weight (packed) : 8kg
