Exposure VXN Phono Amplifier

Exposure VXN Phono Amplifier

The new Exposure VXN Phono Amplifier is a high performance phono stage for either a moving magnet or moving coil cartridge. Specifically designed to work with their own dual DC VXN power supply for maximum performance and ultra quiet operation.

Flexibility and cartridge matching if offered with multiple load and gain settings for correct impedance and output levels.

• All audio circuits use discrete transistors only; no integrated circuits in the signal path
• Very low noise power supply with multiple stages of regulation
• High quality resistors and capacitors throughout the signal path
• Very high quality polypropylene capacitors in critical areas of the RIAA equalisation
• Separate MM and MC inputs selectable on the front panel

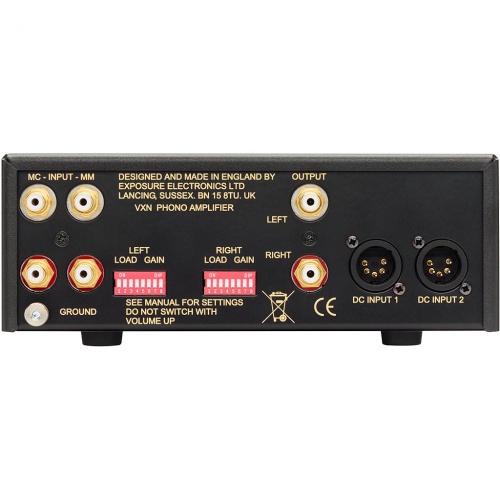

• Adjustable loading & gain switches on the back panel
• Available in Black only

Outputs

• Nominal output (depends on gain setting): 500mV
• Maximum Output: 7.8V @ 1kHz
• Output Impedance: 50 Ohms
• THD @ 1 kHz, ref 500mV output: <0.005%
• Frequency Response: 30Hz - 20kHz within +/- 0.25dB ref 1kHz with low frequency roll off below 30Hz

Moving Magnet Input

• Sensitivity: 5mV input for 500mV output, 40dB gain setting
• Signal to Noise Ratio: ref 1kHz & 500mV out (A weighted) : >82dB

Moving Coil Input

• Sensitivity: 500uV input for 500mV output, 60dB gain setting
• Signal to Noise Ratio: ref 1kHz & 500mV out (A weighted) : >72dB

General

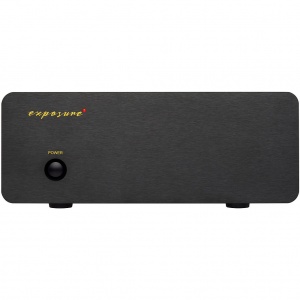

For use with VXN Power Supply only:

• Power Consumption: <10W
• Dimensions (HxWxD): 89mm x 218mm x 348mm
• Net Weight: 2kg
• Gross Weight: 3kg
