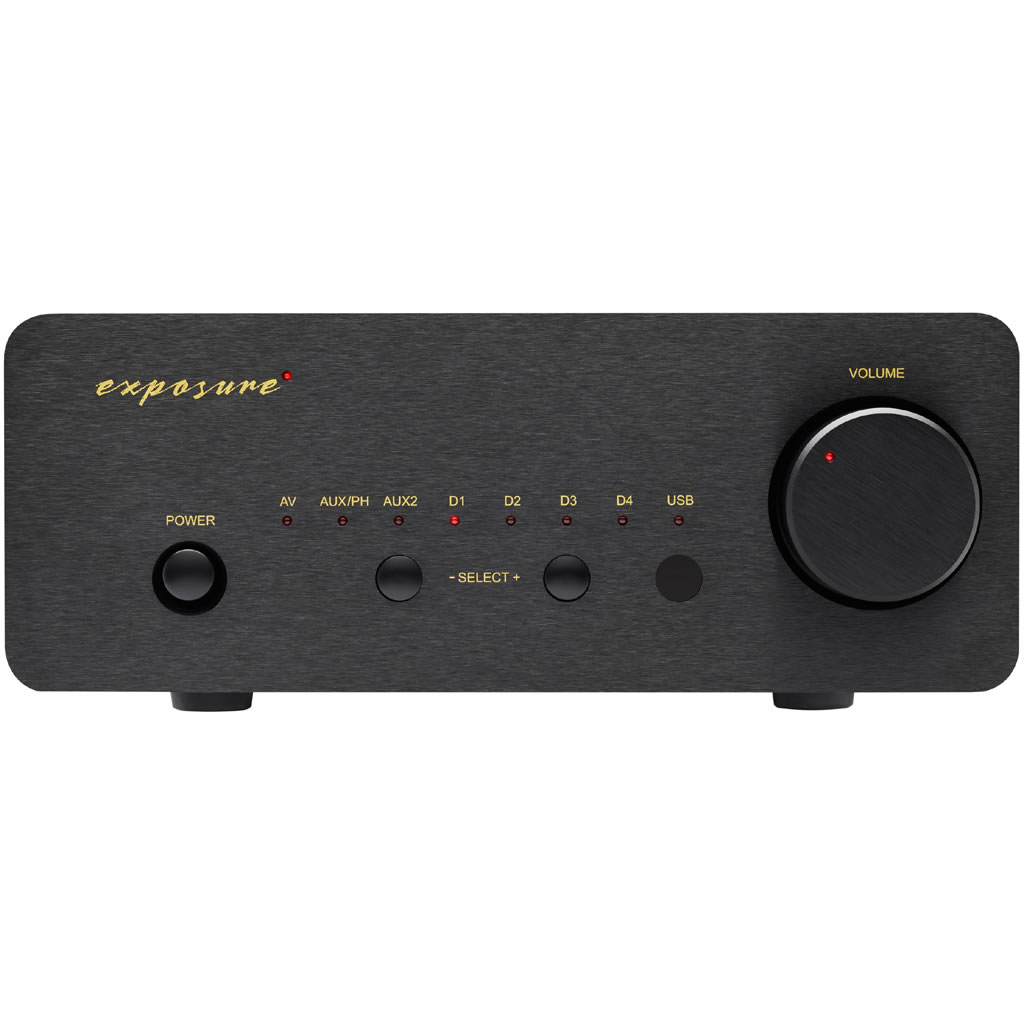

Exposure XM7 Pre Amplifier

Exposure XM7 Pre Amplifier

Exposure's XM Series offers a similar level of performance to their full size 2010 & 3010 units but within a shoebox sized form factor comprising of a high quality XM5 integrated amplifier, XM7 pre amplifier, and XM9 mono power amplifiers. Along with these superb units, they also provide an XM3 phono amplifier for your turntable, and a dedicated XM HP headphone amplifier to drive demanding headphones with ease.

• Large 200VA custom-made toroidal power transformer
• High quality all aluminium casework and extruded front panel
• High quality resistors & capacitors used in the signal path
• Audio output stages use discrete transistors
• High quality relays used for input selection
• 3.5mm & 1/4" headphone outputs selectable by a switch at the back
• Moving magnet phono input, fixed level AV input and one line level input
• Two coax ( bnc) and two optical inputs and one class 2 USB input with DSD
• 2 pairs of pre-amp outputs for bi-amping or sub woofer
• Remote control
• Three year guarantee

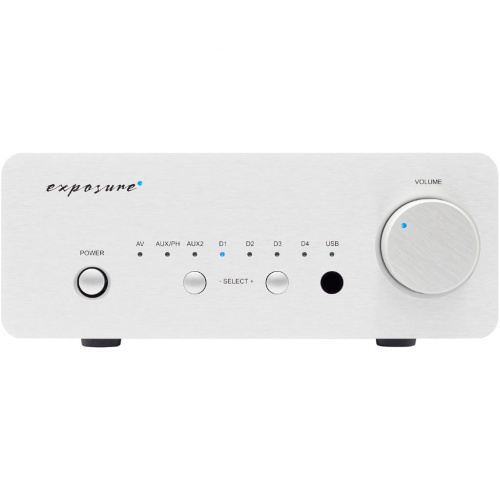

• Available in black or titanium.

• Large 200VA custom-made toroidal power transformer
• High quality all aluminium casework and extruded front panel
• High quality resistors & capacitors used in the signal path
• Audio output stages use discrete transistors
• High quality relays used for input selection
• 3.5mm & 1/4" headphone outputs selectable by a switch at the back
• Moving magnet phono input, fixed level AV input and one line level input
• Two coax ( bnc) and two optical inputs and one class 2 USB input with DSD
• 2 pairs of pre-amp outputs for bi-amping or sub woofer
• Remote control
• Three year guarantee
• Available in black or titanium

Analogue Inputs

• Pre Amplifier Output:  (input sensitivity / impedance / S/N)
• AV input fixed level: 450mV @ 1KHz > 12K ohms S/N > 95dB
• AUX/PH input MM: 2.5mV @ 1KHz, 47K ohms S/N > 73dB
• Frequency Response: +/-0.5dB 50Hz-20KHz. High pass roll off -1.5dB @ 20Hz
• AUX 2 input line: 350mV @ 1KHz > 14K ohms S/N output gain x3.75, +11.5dB
• Total Harmonic Distortion: <0.005% at 1KHz : @ 1.3V RMS output
• Frequency Response: 20Hz - 20KHz +/- 0.5dB
• Signal to Noise Ratio: ref 1.3V RMS Output : 1KHz >92dB
• Channel Separation: @ 20KHz : >60dB

Digital Inputs

• SPDIF inputs: BNC Coax & Optical : 32 - 192KHz @ 16-24 bits
• Total Harmonic Distortion: <0.005% at 1KHz @ 1.3V RMS output
• Signal to Noise Ratio: ref 1.3V RSM Output : 1KHz : >98dB
• USB input: Linear PCM 44K1 - 192KHz @ 16-24 bits DSD x64 (DoP) Asynchronous transfer from host

Headphone Output

• Output Impedance: 10 ohms
• Maximum Level into 33 ohms: @ 1KHz & 0.1% THD : 5V RMS
• Total Harmonic Distortion: @ 2V output, 1KHz : <0.03%
• Maximum Level into 330 ohms: @ 1KHz & 0.1% THD : 8V RMS
• Total Harmonic Distortion: @ 2V output, 1KHz : <0.01%

General Specifications

• Mains Supply: 110/120V or 220/240V @ 50/60Hz (factory set)
• Power Consumption: <25W
• Dimensions (WxHxD): 218mm x 89mm x 363mm (inc knob)
• Net Weight (unpacked): 5kg
• Gross Weight (packed): 6kg
