Gold Note P-1000 MKII Deluxe Line Pre Amplifier

Gold Note P-1000 MKII Deluxe Pre Amplifier

Total control over your system

A full-function Class-A audio pre-amplifier for real music lovers.

Designed for High-End audio systems, P-1000 is an innovative Class-A line pre-amplifier powered by a new proprietary Six Gain Stage design and with Relays volume control and is made for real music lovers. Completing the 1000 series of Gold Note HiFi electronics, P-1000 is powered by a Triple Linear Transformer power supply and features 10 independent stereo inputs. Advanced functions paired with high-quality materials and an exquisite Italian product design turn P-1000 into a luxury solid state amplifier capable of top-class performances.

DELUXE VERSION

Audiophile audio-grade components and military-grade anti-noise coils and capacitors clamped with custom copper clips.

THE ULTRA-BALANCED PRE-AMPLIFIER

Designed for High-End systems, P-1000 is an innovative Class-A line pre-amplifier powered by a new proprietary Six Gain Stage design with Relays & Optical ALPS Encoder volume control and the best audio grade components to bring your system to a whole new level: the exclusive Gold Note Ultra-Balanced design featuring Six Single Gain stages provide incredible low distortion and extended linear bandwidth for true superior musicality.

P-1000 belongs to a new era of electronics where performance is combined with technology to offer the best possible musical experience: tradition and innovation meet to create a unique pre-amplifier with crystal clear sound.

Featuring a Triple Linear Transformer power supply and 10 independent stereo inputs, 5 fully balanced XLR, 5 RCA (optionally even a digital input is available on demand). The pre-amplifier offers a large amount of functions: Mono/Stereo selection, Left/Right channel swap, Absolute Phase swap, Booster technology and fine Balance tuning.

To perfectly reproduce even old recordings, the pre-amplifier can in fact be set into Mono or Stereo mode. It also allows to swap the Left & Right channels to allow the reproduction of inverted recordings as well as the absolute phase swap from 0° to 180°.

For P-1000 we developed the Booster technology: a feature that will allow you to get the best out of speakers that require robust power supplies providing greater energy in a very specific range of low frequencies (the Booster is completely by-passed when set to OFF).

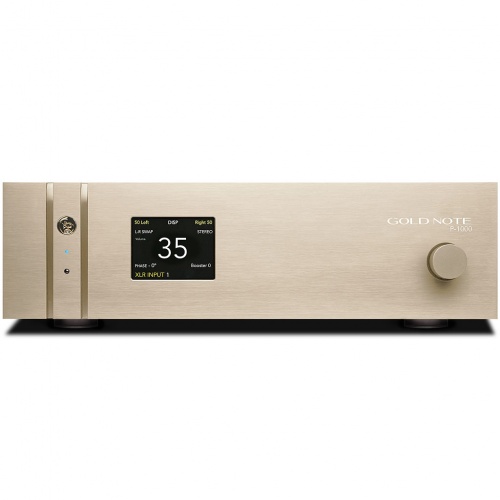

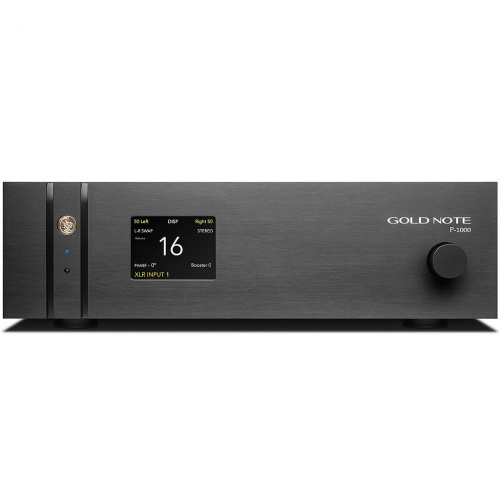

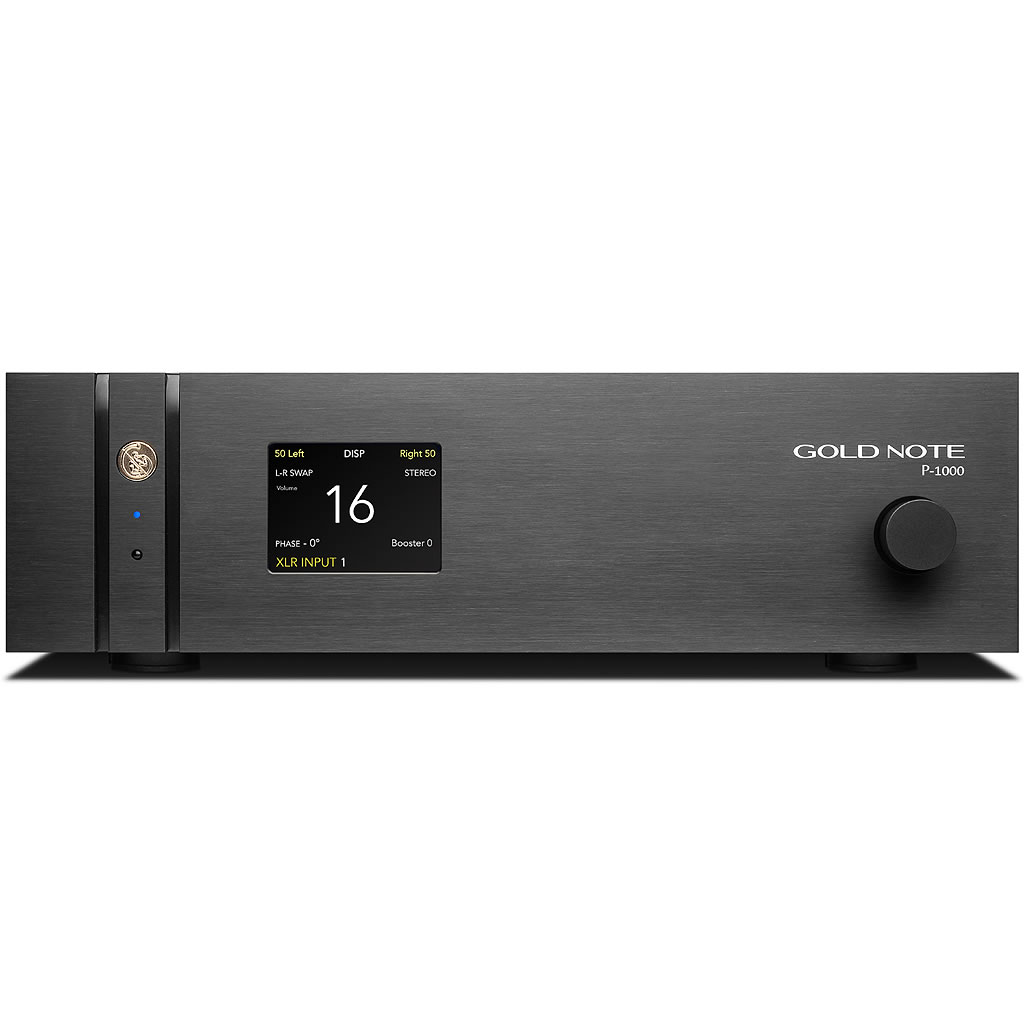

The pre-amplifier it’s easy to control with its large colour display showing all possible functions: it’s as easy as it gets, all the settings can be found on the display allowing quick and precise fine adjustments.

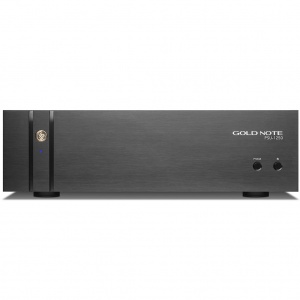

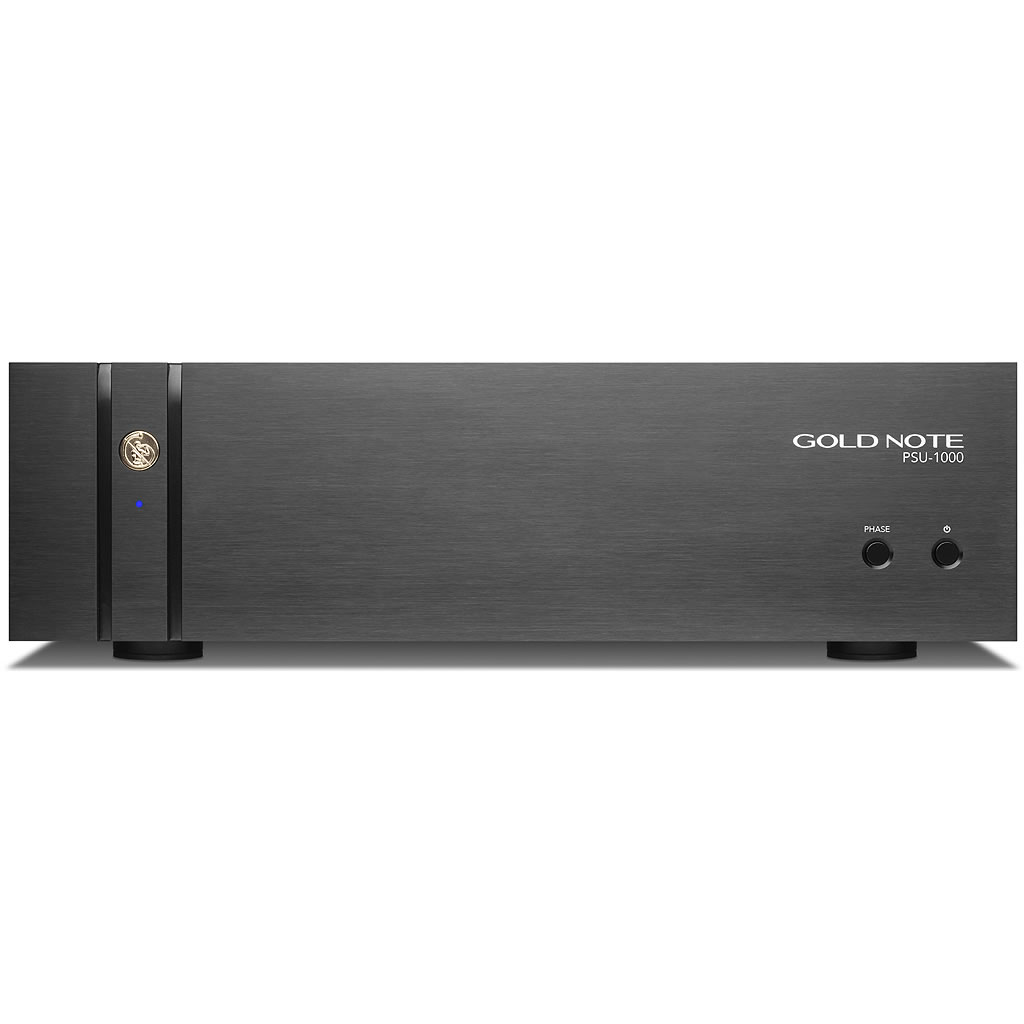

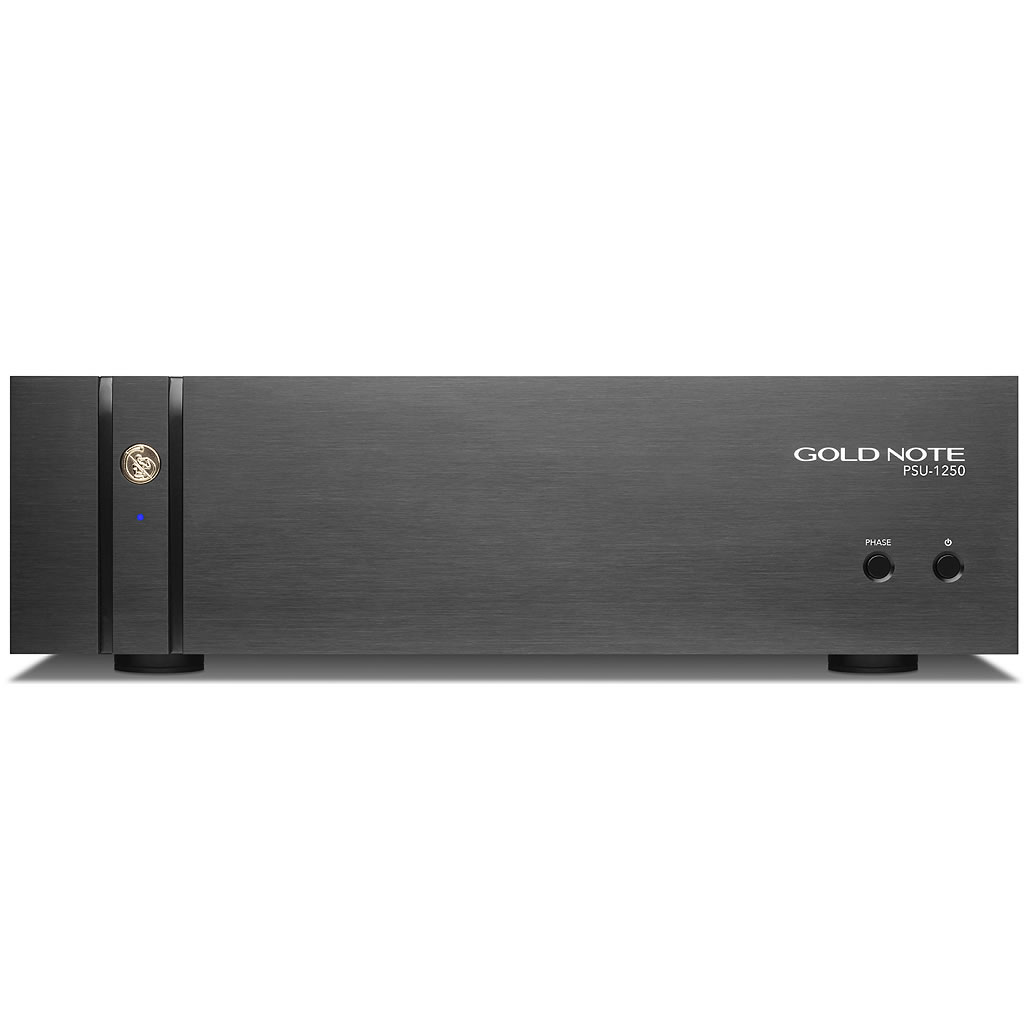

To enhance the performance of the P-1000 even further, it can be optionally matched with the external super inductive power supply PSU-1250/1000 and the valve output stage TUBE-1012/1006.

Volume Control

Graphic visualisation from 0 to 100, created with relay and optical encoder with
zero distortion.

Analogue Inputs

Featuring 8 independent stereo inputs, of which 4 XLR balanced and 4 RCA unbalanced for maximum versatility.

Stages of amplification

6 independent gain stages, made with a proprietary “ultra-balanced“ circuit design for an excellent musicality.

Modular Design

Add external units like the inductive power supply PSU-1000/1250 or the Class-A valve output stage TUBE-1006/1012 in order to increase the performance of P-1000.

• FREQUENCY RESPONSE: 2Hz – 200KHz @ ± 3dB
• THD (TOTAL HARMONIC DISTORTION): <0.001% @ 1kHz
• GAIN: +20dB
• SIGNAL TO NOISE RATIO: -120dB
• CHANNEL SEPARATION: >118dB
• CHANNEL LEFT/RIGHT: selectable swap
• MONO/STEREO: selectable
• ABSOLUTE PHASE: 0°/180°
• BOOSTER: 3 adjustable levels (by-passable/off)

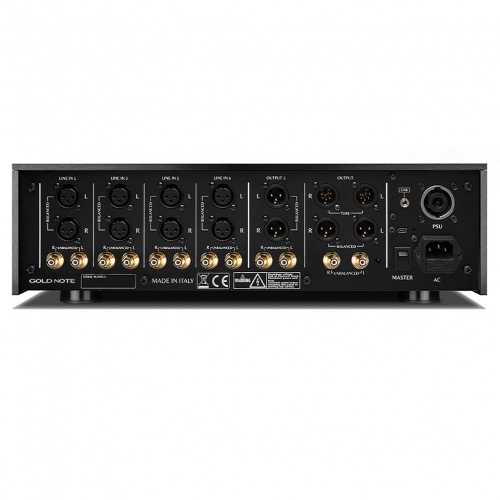

• ANALOGUE INPUTS: 5 Stereo RCA, 5 Stereo XLR balanced
• INPUT LEVEL: Up to 10Vrms on RCA, Up to 10Vrms on XLR
• DIGITAL INPUT (OPTIONAL): TOS or Coax 24/192kH
• INPUT IMPEDANCE: 100kΩ XLR & RCA
• AUDIO OUTPUTS: 1 Stereo RCA unbalanced, 1 Stereo XLR balanced, 1 dedicated to TUBE-1006 & TUBE-1012
• OUTPUT LEVEL: Up to 16Vrms on XLR & 8Vrms on RCA max.
• VOLUME: 100 steps
• OUTPUT IMPEDANCE: <10Ω XLR & RCA
• POWER SUPPLY: Ultra Linear 3 transformers, 100-120V / 220-240V 50-60Hz, depending on market destination and not convertible, Power Consumption: 30W max 1 Input for external inductive power supply PSU-1250/1000

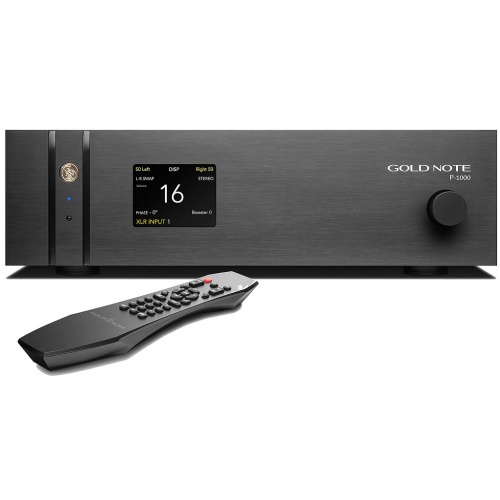

• REMOTE CONTROL: Included. IR receiver on front and back
• DIMENSIONS: 430mm W 135mm H 375mm D
• WEIGHT: 11 Kg net, 16 Kg boxed

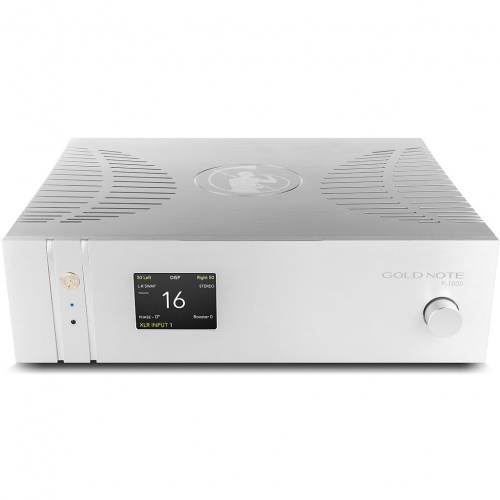

• FINISHES: Brushed Aluminium Black or Silver
• UPGRADES: TUBE-1006/1012: Class-A 6/12 Tubes output stages with Dual mono/inductive tube power supply. PSU-1250/1000: external inductive Dual-Mono power supply . External AC filter: Gold Note Arno AC distributor. Cables: Gold Note Lucca power chord
