Gold Note PA-10 Evo Power Amplifier

Gold Note PA-10 Evo Mono/Stereo Power Amplifier

Compact and powerful: our new Mono/Stereo power amplifier

The new PA-10 EVO is a compact and versatile power amplifier, fully balanced and with high-power output, designed for modern High-End audio systems. Musically engaging and controlled, capable of driving a wide selection of loudspeakers with power and control.

The PA-10 EVO can be used in Stereo or Mono mode, with two units as monoblocks to get the best audio performance. Carefully designed with select components, meticulously assembled and tested by hand, it features the ultra-solid chassis of the Series 10 in solid aluminium, inspired by the Italian style and our modular philosophy. Despite the size, the PA-10 EVO is extremely capable and efficient, delivering up to 140W in Stereo (8O) and up to 280W in Mono (8O).

Thanks to the adjustable damping factor, the amp can be perfectly matched with any loudspeakers – 3-way floor-standing designs as well as mini-monitors. Featuring both balanced and unbalanced inputs, it can be connected to all sorts of sources and thanks to the GN Link technology, the amp can be easily switched ON/OFF from the source in master-slave mode.

Paired with the DS-10 EVO and the A3 EVO II (or A6 EVO II) loudspeakers, the PA-10 EVO is the ideal power amplifier for a contemporary, compact high-performance system.

Please Note – The PA-10 EVO cannot be matched to the PA-10, but it is fully compatible with all of our electronics, pre-amplifiers and valve output stages.

POWER

• A fully balanced amplifier capable of conveying a considerable power of 600 Watt per channel in mono.

DAMPING FACTOR

• This useful system of damping factor selection permits setting the amplifier based on the needs of the connected loudspeakers.

BRIDGE -TIED-LOAD

• The BTL technology enables bridging the stereo amplifier turning it easy into a mono power amplifier.

GN LINK

• This technology allows putting the amplifier into Master-Slave-Mode with other sources of the system for more user-friendliness.

POWER OUTPUT (THD 1%)

• 2x 140W @ 8O / 4O (Stereo)
• 1x 280W @ 8O / 4O (Mono)

FREQUENCY RESPONSE

• 5Hz-50kHz (@ -3dB)

TOTAL HARMONIC DISTORTION (THD)

• 0,01% (1kHz @ 1W)

DAMPING FACTOR

• High = 250 or Low = 25

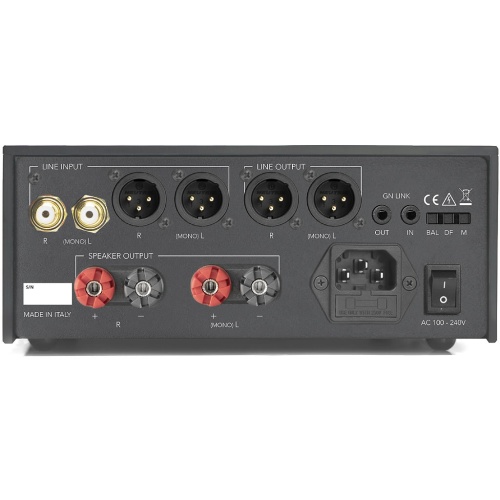

INPUTS AND OUTPUTS:

AUDIO INPUTS

• 1x RCA Stereo unbalanced
• 1x XLR Stereo balanced

INPUT SENSITIVITY

• 2,5Vrms RCA/XLR

INPUT IMPEDANCE

• 3,6kO RCA
• 7,2kO XLR

AUDIO OUTPUTS:

• Speaker terminals: Binding posts

POWER:

POWER CONSUMPTION

• <1W standby
• <6W no signal
• POWER SUPPLY
• 100-240V, 50/60Hz
• FUSE
• 5A T

DIMENSIONS AND WEIGHT:

DIMENSIONS

• 200mm W | 80mm H | 260mm D
• WEIGHT
• Kg. 3 – net
• Kg. 4 – boxed

FINISHES

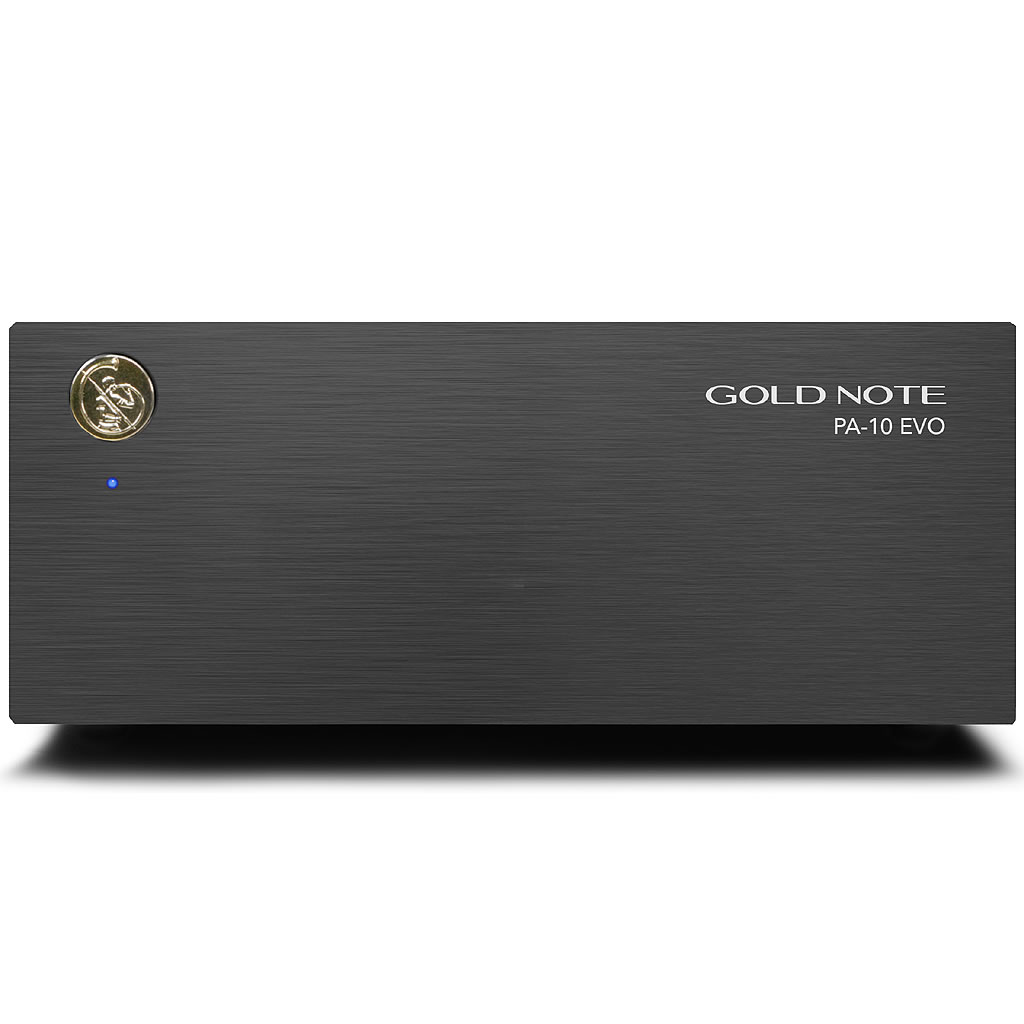

• Black
• Silver

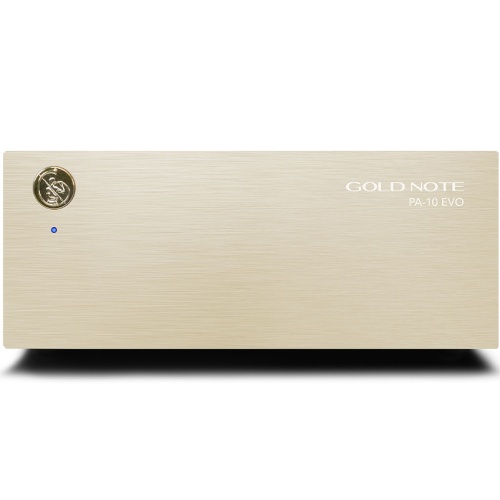

• Gold

OPERATING CONDITION LIMITS:

TEMPERATURE

• From 0°C to 35°C

HUMIDITY

• 90% without condensation
