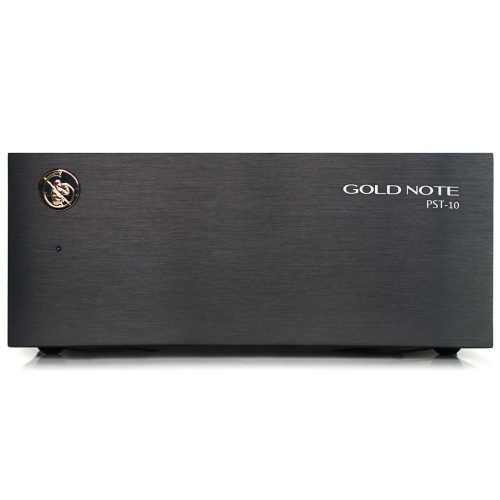

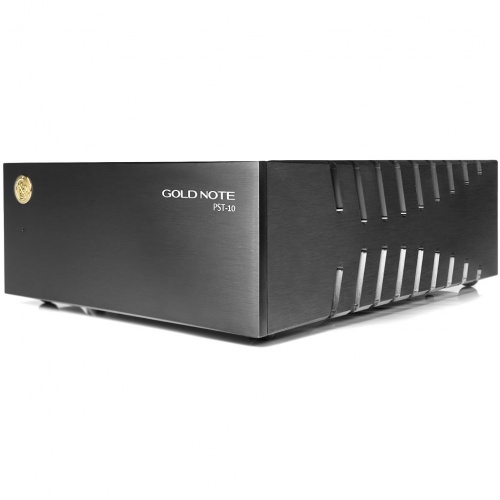

Gold Note PST-10 Power Supply

Gold Note PST-10 Power Supply

External Power Supply for Turntables

An external power supply that guarantees ideal operating conditions for Gold Note turntables.

PST-10 is a super inductive power supply designed for all Gold Note low voltage powered turntables. With its pure energy it will increase the sound quality of your analogue set up significantly.

EXTERNAL INDUCTIVE POWER SUPPLY FOR TURNTABLES

The special external power supplies have been designed to enhance your Gold Note system and are part of the modular design of the Gold Note creations.

All the special external power supplies have been developed with a Super Inductive Dual Choke hybrid design. They feature an inductive filter on the analogue stage and a dual choke design powered by a double inductor driving both the negative and positive high-current stages.

The Gold Note proprietary Dual Choke design perfectly filters the signal voltages to eliminate any interference and electrical noise from the AC power system.

With their massive power supply they provide a shield from the AC power grid. By achieving complete insulation, an ideal working environment is created for the electronics to perform at their best.

The large and ultra-clean power generated enhances noise reduction, greater dynamic, better resolution and finer audio details guaranteeing the best realism and musicality.

Dedicated specifically to the Gold Note low voltage turntables, the PST-10 features a 4 power supply stages with 4 ultra-low noise voltage regulators. The device is powered by 4 transformers ( 3 dedicated to the power supply and 1 for the inductive choke filter).

To enhance the performance, the PST- 10 is supplied with a 1,5m long custom silver core conductor cable to power the turntable.

Dual Choke Design

Our proprietary technology removes the impurity and the interferences that inevitably trouble the AC power system.

4 Transformers

3 are dedicated to the power supply and 1 to the inductive filter for pure audio applications.

Modular Design

PST-10 can be used with all Gold Note low voltage turntables.

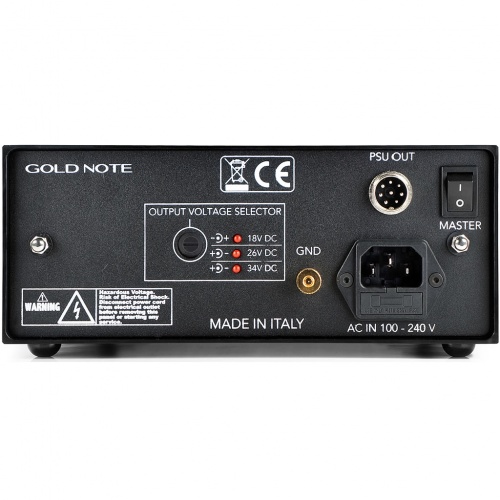

• PST-10: Four audio grade transformers, Four ultra low noise voltage regulators +12V, +5V for logic, 18V/26V/34V output with inductive noise remover
• MAXIMUM VARIATION OF OUTPUT VOLTAGE: 0,05 %
• LINE NOISE REJECTION: >80dB
• COMMON MODE NOISE REJECTION: >80dB
• FULL POWER RESPONSE TIME: <2,5µsec
• POWER SUPPLY: 100-240V with automatic selection; 50/60Hz, Nominal power: 25W, Dynamic power: >50W, Stand by power: <1W
• CONNECTING CABLE: Silver custom cable powering the turntable
• DIMENSIONS: 200mm W 80mm H 260mm D
• WEIGHT: 3Kg net, 4Kg boxed
• FINISHES: Brushed Aluminium in Black, Silver or Gold
