IMPROVE THE PERFORMANCE OF YOUR DS-10
The PSU-10 EVO is the perfect match for our award-winning DAC streamer. Add the dedicated external power supply to take your system to the next level and enjoy your music with improved details and realism.

THE PERFECT ADD ON

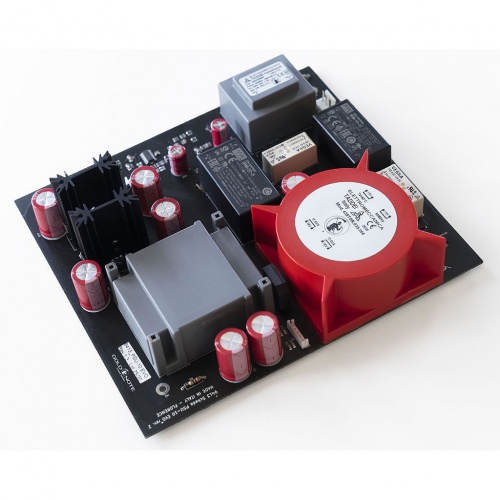

The PSU-10 EVO has been engineered with the finest audio grade components to enhance the performance of DS-10 and DS-10 PLUS even further. The PSU-10 EVO features a 4-transformer power supply stage enhanced with ultra-low-noise voltage regulators. The power supply stage takes advantage of a 4-transformer layout with 3 transformers entirely dedicated to the power supply and 1 for the inductive filter.

The Dual Choke Hybrid design features an inductive filter on the analogue stage and is powered by a double inductor, driving both the negative and positive high-current stages. This proprietary technology perfectly filters the current to eliminate interference and electrical noise from the AC power system achieving ideal insulation, an ideal working environment for the electronics to perform at their best.

ULTRA-CLEAN POWER
The ultra-clean power generated by the PSU-10 EVO allows DS-10 and DS-10 PLUS to deliver greater dynamics, better resolution, and even finer details resulting in improved realism, musicality as well as control.

Please note: the PSU-10 EVO is not compatible with the PH-10 Phono Stage.

Dual Choke technology

Our proprietary technology removes impurity and interference from the AC power system.

Multi cascade design with 4 transformers

With 3 transformers for the power supply, and 1 dedicated to the inductive filter.

Modular Design

PSU-10 EVO can be used with DS-10 and DS-10 PLUS.

• TECHNICAL FEATURES: Four rail audio grade power supply, Two ultra-low-noise voltage regulators
• MAXIMUM VARIATION OF OUTPUT VOLTAGE: 0,05 %
• LINE NOISE REJECTION: >80dB
• COMMON MODE NOISE REJECTION: >80dB
• FULL POWER RESPONSE TIME: <2,5µsec
• POWER SUPPLY: 100-120V / 220-240V with auto sense, 50/60Hz
• POWER CONSUMPTION: 70W
• DYNAMIC POWER: >100W
• STAND BY POWER: <1W
• FUSE: 2A F
• DIMENSIONS: 200mm W | 80mm H | 260mm D
• WEIGHT: Kg. 4 – net, Kg. 5 – boxed
