Gold Note PSU-10 Power Supply

Gold Note PSU-10 External Inductive Power Supply

PSU-10 is a super inductive power supply exclusively designed for the PH-10 phono stage. PSU-10 has been engineered with the best quality audio-grade components to enhance the performance of PH-10 and improve your system even more: with the dedicated external power supply you will get the very best music experience out of your LPs.

EXTERNAL INDUCTIVE POWER SUPPLY FOR PH-10 PHONO STAGE

The special external power supplies have been designed to enhance your Gold Note system and are part of the modular design of the Gold Note creations. All the special external power supplies have been developed with a Super Inductive Dual Choke hybrid design. They feature an inductive filter on the analogue stage and a dual choke design powered by a double inductor driving both the negative and positive high-current stages.

The Gold Note proprietary Dual Choke design perfectly filters the signal voltages to eliminate any interference and electrical noise from the AC power system. With their massive power supply they provide a shield from the AC power grid. By achieving complete insulation, an ideal working environment is created for the electronics to perform at their best.

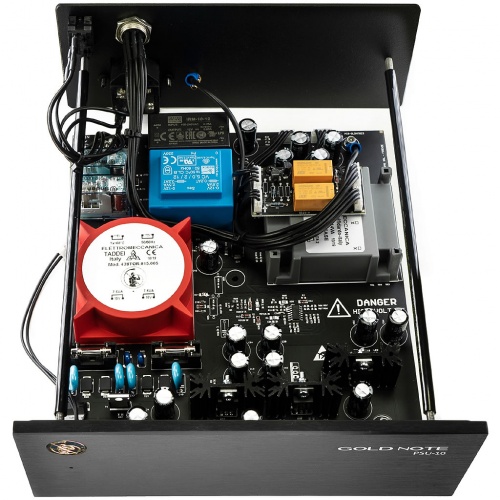

The large and ultra-clean power generated enhances noise reduction, greater dynamic, better resolution and finer audio details guaranteeing the best realism and musicality. Dedicated to the PH-10 phono stage, the PSU-10 features a 4 power supply stages with 4 ultra-low noise voltage regulators. The device is powered by 4 transformers ( 3 dedicated to the power supply and 1 for the inductive dual choke special filter).

Please note:
FOR PH-10 WITH SERIAL NUMBER LOWER THAN 56802
The PH-10 must be updated to the latest firmware in order to be powered by the PSU-10.

Dual Choke Design

• Our proprietary technology removes the impurity and the interferences that inevitably trouble the AC power system.

4 Transformers

• 3 are dedicated to the power supply and 1 to the inductive filter for pure audio applications.

Modular Design

• PSU-10 can be used with PH-10.

• PSU-10: Four rail audio grade power supply, Four ultra low noise voltage regulator, +12V, +5V for logic +/- 14V for analog with inductive noise remover
• Maximum variation of output voltage: 0,05 %
• Line noise rejection: >80dB
• Common mode noise rejection: >80dB
• Full power response time: <2,5µsec
• Power Supply: 100-240V with automatic selection; 50/60Hz, Nominal power: 25W, Dynamic power: >50W, Stand by power: <1W
• Dimensions: 200mm W 80mm H 260mm D
• Weight: 3Kg net, 4Kg boxed

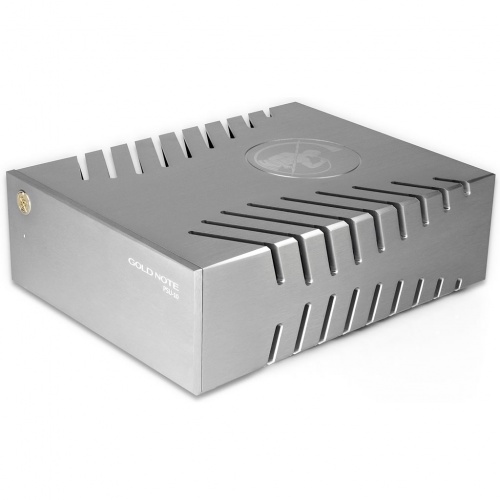

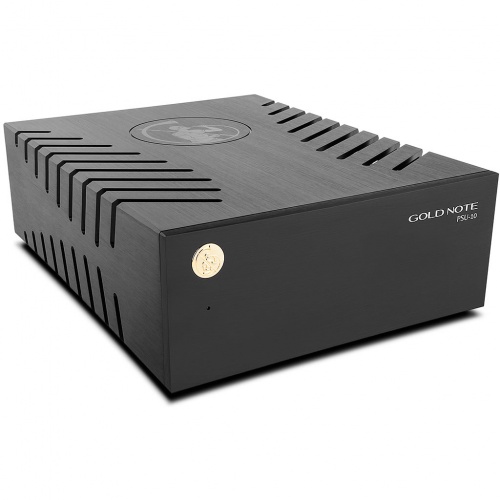

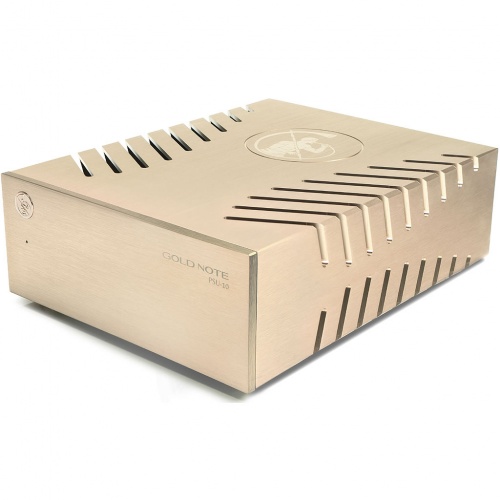

• Finishes: Brushed Aluminium in Black, Silver or Gold
