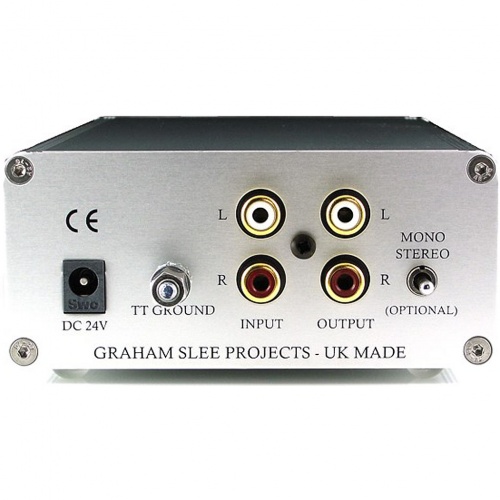

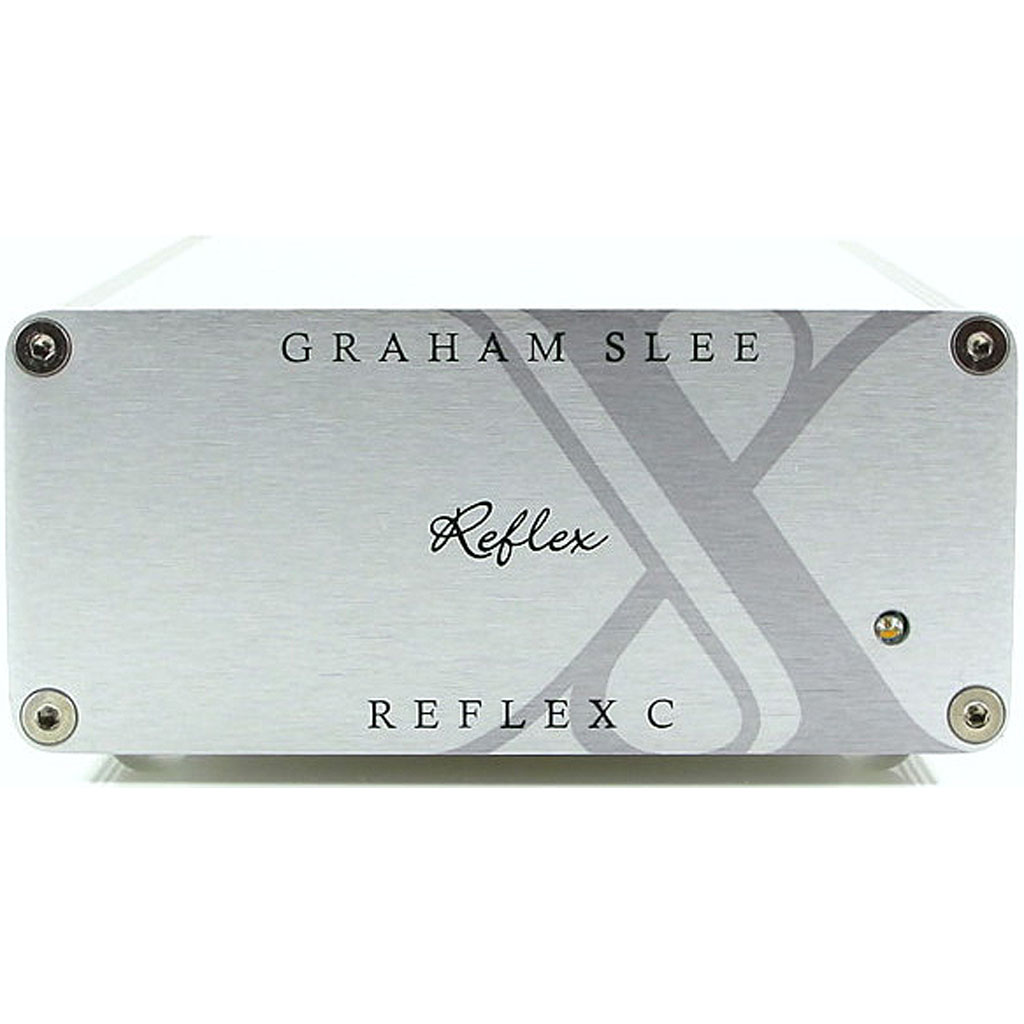

Graham Slee Reflex C Phono Stage

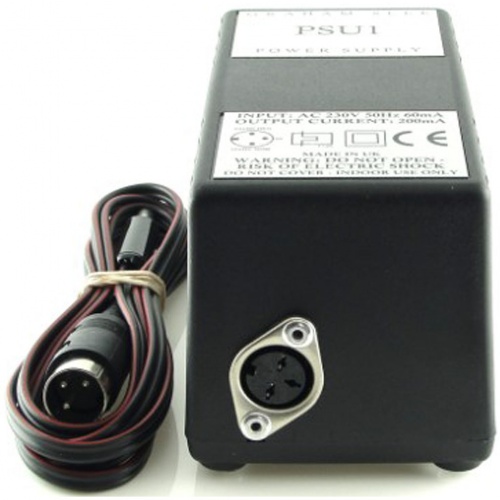

Reflex C Moving Coil Phono Stage (supplied with PSU1 uni-polar power supply)

The Reflex C is a moving coil cartridge preamp. It provides you with great musicality and excitement for your moving coil listening, revealing many "secrets" hidden in your vinyl, plus great dynamics, delicacy and "just the right degree of warmth".

Imagine a pure tube/valve solution for moving coil with no step-up transformer? Unfortunately because of tube/valve noise it can never happen. With the Reflex C phono stage you can get that illusive tube/valve linearity... from solid state!

Conventional solid state moving coil preamps often suffer poor open-loop bandwidth, and even though negative feedback widens their response, it also introduces phase modulation.

The Reflex C has more than ten times the open-loop bandwidth of a regular solid state moving coil preamp, reducing colourations from phase modulation considerably.

As with all our products, the Reflex C moving coil preamp should be left powered-up for its circuits to fully stabilize, and give the intended performance.

• Suitable for conventional (low) output moving coil cartridges in output range 0.2 to 1.0 mV
• Fast-Active preamp and equalisation technology
• Latest innovative Ultra-Linear technique
• Inherent reduced vinyl click and pop characteristic
• Rock steady sound stage and truly 3D performance
• Tube like sound with solid-state reliability
• Option to choose cartridge load resistance at time of purchase or 100 Ohms as standard

• Input range: 0.2mV to 1.0mV
• Output (for input range): 252mV to 1,260mV (1.26V
• Maximum input: 3.9mV rms
• Maximum output: 4.914V rms
• Gain: 62dB (1,260) at 1kHz
• Input impedance: 100 Ohms
• Output (driving/source) impedance: 1k Ohm
• Recommended load impedance: 10k Ohm or greater
• Noise at output: -62dB CCIR Q-pk
• Equivalent input noise (EIN): -124dB
• Distortion: 0.02%
• RIAA accuracy: < 0.5dB
• Frequency response: 20Hz - 200kHz (flat, corrected to RIAA)
• Channel balance: 0.2dB
• Channel separation: 64dB
• Size (approx.): W: 107 x H: 50 x D: 180 (mm) inc. jacks
