Hana EL Moving Coil Cartridge

Hana EL Low Output Elliptical Moving Coil Cartridge

Low cost, high performance, low output Moving Coil cartridge with elliptical stylus.

Introducing a range of Moving Coil Cartridges from Japan - Hana - 華 (hana means “brilliant and gorgeous” in Japanese). The Hana low and high output moving coil cartridges have been winning reviewer praise and awards since their introduction to the UK in 2015.

Hana MC Phono Cartridges use high rigidity aluminium cantilevers and cross-shaped armatures, providing a ‘brilliant and gorgeous’ sound at competitive price points for Moving Coil (MC) Cartridges of this sound quality.

Manufactured by Excel Sound Corporation, a 50 year old company based in Tokyo, specialising in MC cartridges, with particular expertise in high output MC cartridges and OEM cartridge parts manufacture and OEM cartridge supply. They are perhaps seen as one of those slightly underground Japanese companies - who certainly will not reveal which cartridge brands they have manufactured for over the years.

The E range "EH" and "EL" cartridges (same two High and Low output options as the "S" range) come with a synthetic Elliptical diamond styli, but nonetheless offer a highly competitive quality sound, referenced against similar priced cartridges.

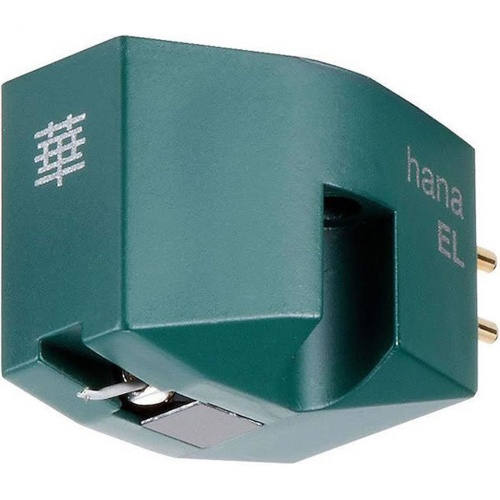

The Hana EL cartridge has a synthetic Elliptical diamond stylus fitted to a high rigidity aluminum cantilever with cross-shaped armature, offering super transparency and excellent trackability. The body is manufactured from a composite low resonance plastic material in dark green. This competitively priced Low output moving coil cartridge offers great quality sound referenced against similar priced cartridges. The EL (Elliptical Low output) offers 0.5mv/1KHz output.

• Stylus Profile: Elliptical
• Cantilever: Aluminum
• Output Level @ 1kHz: 0.5mV
• Output Balance @ 1kHz: Less Than 2dB
• Vertical Tracking Force: 2 grams
• Trackability: 70 um/2 grams
• Separation @ 1kHz: 25 dB
• Frequency Response: 15-25,000 Hz
• Impedance @ 1 kHz: 30 Ohms
• Suggested Load: 400 Omms
• Cartridge Weight: 5 Grams
• Body Colour: Moss Green
