HIGH PERFORMING GRAPHENE MEMBRANES
It all started with the development of a new high-tech material called “Graphene”.
Graphene – if to explain in simple terms, is a two-dimensional sheet of carbon that is only one atom thick. Its physical properties are truly unique:
- It is 300 times stronger than steel
- It has no internal resistance
- It is incredibly light
As currently the production of pure graphene membrane is very hard and time- consuming and can cost a fortune, we decided to create a hybrid of mylar and powdered graphene applied by thermal method. Thus, we were able to significantly improve the characteristics of the classic dynamic driver, such as the strength of the membrane, its rigidity and the absorption of parasitic resonances. This high-tech membrane required the corresponding uncompromising “engine”. Therefore, we have equipped the speaker with an ultra-light aluminum voice coil (CCAW), covered with a very thin layer of copper to increase its conductivity. And the coil is set in action by a powerful magnet made of NdFeB alloy, which in size and power of the magnetic field is exceeding 3-4 times the magnets of similar speakers from competitors. All these engineering solutions gave the speaker a high dynamic range, stunning detailing of sound, very low distortion, and brought the sound quality of the speaker close to the representatives of the planar-magnetic technology.
Over the past year we have created several promising headphone prototypes based on these developments, and one of them was even released for one of our partners projects. But it was only through long research and experimentation that we were able to get the concept of sound, which we have been pursuing for a long time and which fits most fully into the framework of Kennerton products.
Our new driver is a compression type system, i.e., its membrane has an extremely soft suspension and additionally relies on the elasticity of the air volume of the acoustic chamber, represented by the earphone cup.
This is done in order to lower the resonant frequency of the dynamics, and accordingly the depth of reproduced low frequencies. This feature makes the speaker extremely responsive to any slightest change in acoustic design, its volume and filling. In addition, the membrane “warms up” (it enters the nominal mode of operation, gets rid of internal stresses, gets softer in places of suspension bending) for quite a long time – at least 72 hours of work according to the results of our tests. And for a complete “warm-up” it usually takes up to a week of the total time the headphones should work. All this made our engineers work very hard, but everyone who could listen to the headphones sound finally was amazed by the great result.

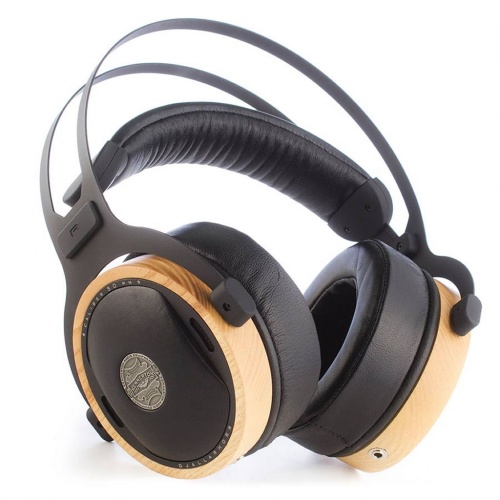

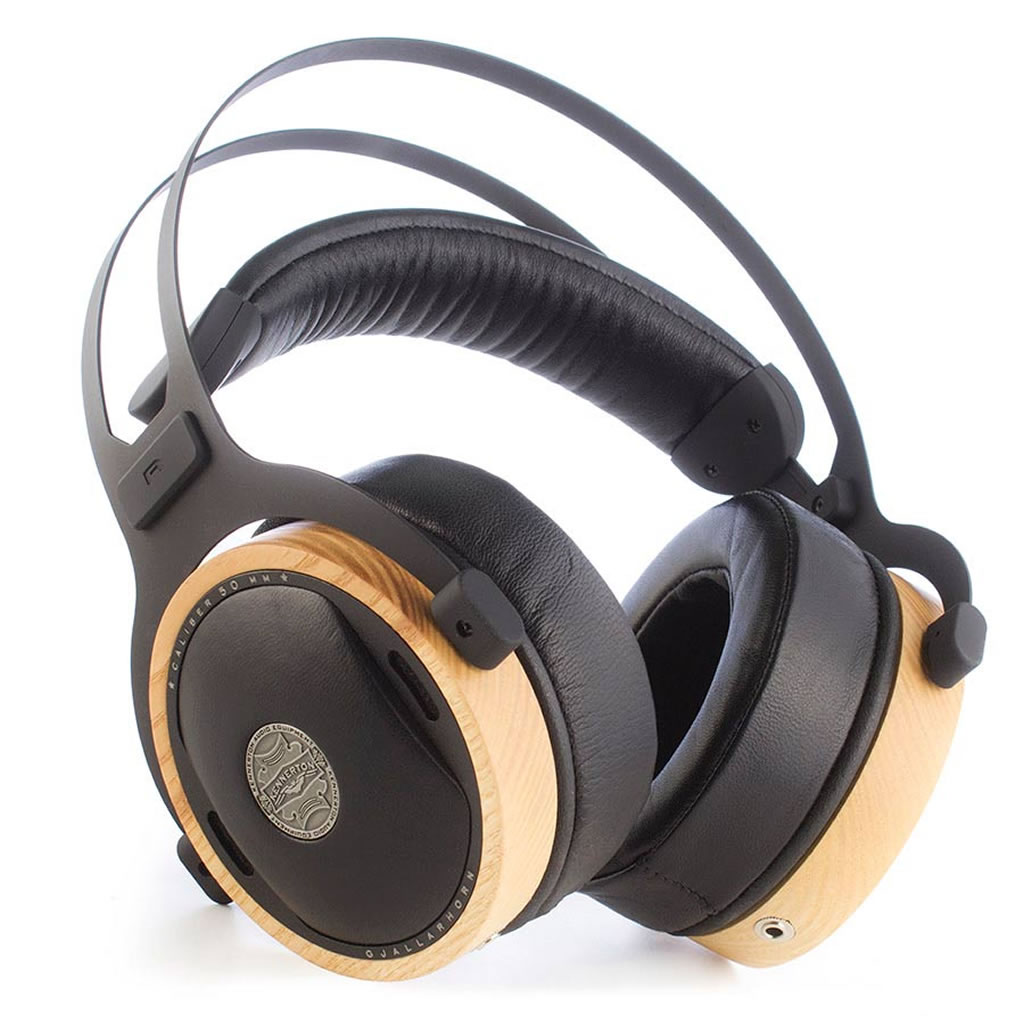

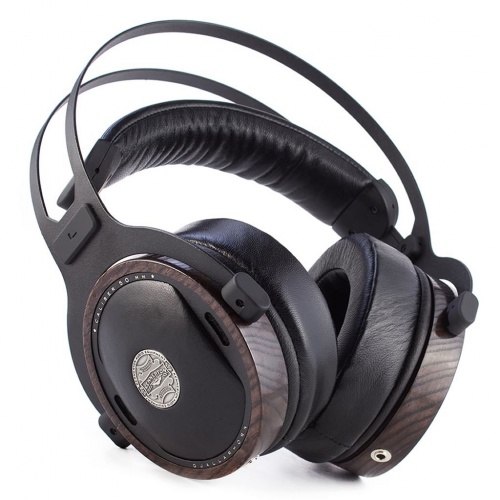

We were able to achieve high compatibility both with hi-end systems and with low-end devices, while maintaining a consistently high level of sound, limited by the capabilities of the source, rather than the headphones themselves. For Kennerton Gjallarhorn, we use a steel headband with a minimum of moving parts, which means maximum reliability. Headphone cups made of precious wood are not only beautiful and just pleasant to touch, but also bring warm and natural notes to the sound of the headphones, eliminating the intrusive “plastic” overtones of competitors’ models. Lightweight design, self-adapting to the user’s head and genuine leather ear cushions provide the highest comfort for long-time listening.
