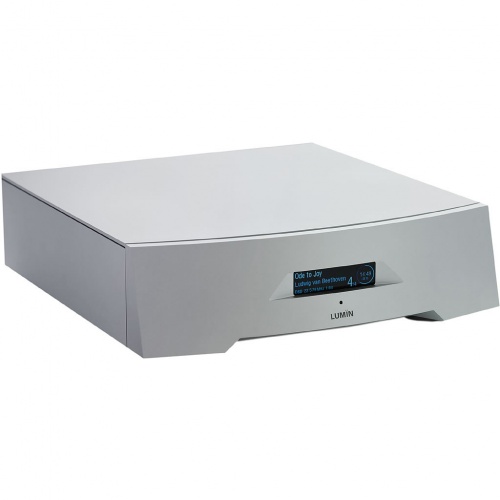

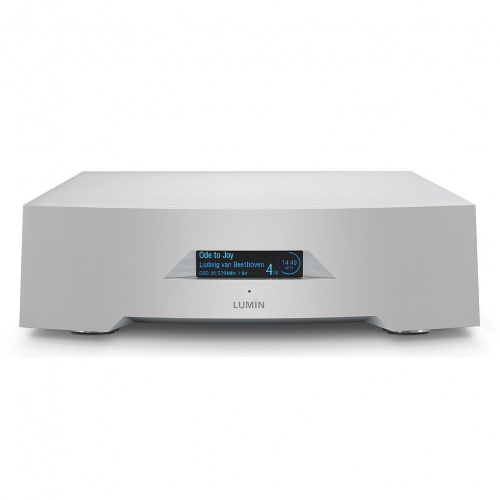

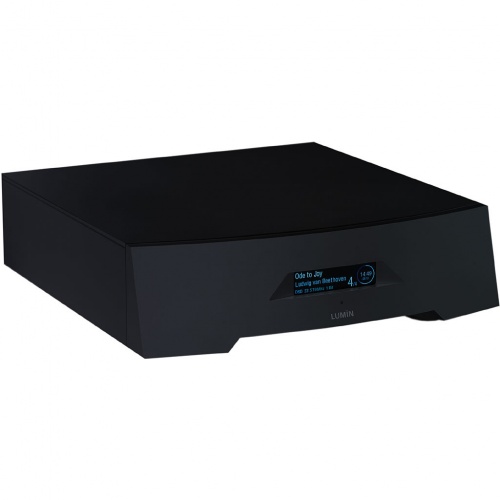

Lumin P1 Network Music Player

Lumin P1 Network Music Player

Includes: FREE Silver Mogwai Analogue XLR Cables

THE HEART OF YOUR SYSTEM

WHY LUMIN P1
The Lumin P1 is their most flexible player yet, designed to sit right in the heart of your audio system. Use as a streamer, a DAC, a pre-amplifier or all three.

Main features
LUMIN P1 makes system integration easier than ever.

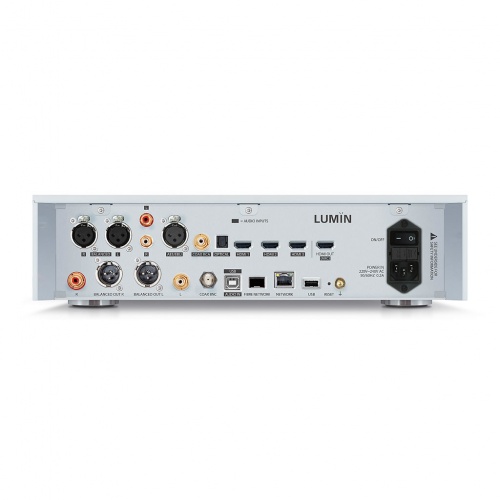

9 digital & analogue inputs

• USB Digital Audio input & output support up to Native DSD512
• Balanced & unbalanced analogue inputs
• SPDIF & AES input support up to 192/24 with DoP
• HDMI 2.0 inputs & 4K passthrough with ARC support

Specified for exceptional musical performance

• New processor delivers native DSD512 & PCM384 playback
• Dual Mono design throughout maximises channel separation
• Dual ES9028PRO SABRE DACs in Mono mode
• Femto Clock System with precision FPGA distribution
• New integrated dual-toroidal linear power supply & all-in-one chassis
• Fibre Network provides complete isolation from network digital noise
• Leedh Processing lossless volume control

New Remote Control
A new tactile infrared remote control allows easy change of input, volume adjustment, playlist navigation and more. The exceptionally well-constructed acrylic and zinc LUMIN remote is made in Austria and is entirely Roon Ready. The new infrared receiver built in to LUMIN P1 is compatible with universal remote controls, phones and automation systems.

IDEA 1 - STREAMING DAC
LUMIN P1 can be used like all other LUMIN players. With its DSD512/PCM384 support, Femto Clock System, Fibre Networking, toroidal power supply, and Leedh Processing, P1 is second only to LUMIN X1 in pure streaming ability.

IDEA 2 - HI-FI HUB
Connect all your stereo sources to LUMIN P1 and attach a power amplifier and you've got everything you need for an incredible music system.

IDEA 3 - 2-CHANNEL TV SYSTEM
No need for an AV Receiver. Simply attach your HDMI sources to LUMIN P1 and P1 to your TV. With HDMI ARC, all your audio comes through your main speakers.

USB

• Industry-leading XMOS USB audio controller
• Native DSD512 and PCM384 compatible
• Windows 10 & Mac OS compatibility

ANALOGUE

• Balanced and Unbalanced analogue input
• LEEDH volume processing
• Passthrough function for home cinema integration

SPDIF/AES

• DoP64 / 192 kHz 24-bit compatible
• TOSLINK, SPDIF (RCA), AES inputs

HDMI

• HDMI 2.0 Specification compatible
• Supports 2.0 PCM audio decoding
• HDR, Dolby Vision, Dolby Atmos, DTS passthrough
• ARC compatible output

Flexible setup options

• Use as a streamer, a DAC, a pre-amplifier or all three

NETWORK PLAYBACK

• Up to DSD512
• Up to 384 kHz, 16–32-bit, Stereo
• MQA Full Decoding

UPSAMPLING RATES & BIT DEPTHS

• DSD128 upsampling option for all files
• PCM 384kHz upsampling option for all files

DIGITAL INPUT

USB:

• USB Audio Class 2 Compatible
• WINDOWS 10 (Release 1703 or above) / Mac OSX or above
• DoP 128 support
• PCM 44.1–384 kHz, 16–32-bit, Stereo

AES/OPTICAL/SPDIF:

• PCM 44.1 kHz–192 kHz, 16–24-bit
• DSD64 (DoP64, DSD over PCM)

HDMI X3:

• PCM 2.0 Audio support
• 4K Video Passthrough

DIGITAL OUTPUT

USB:

• Native DSD512 support
• PCM 44.1–384 kHz, 16–32-bit, Stereo

BNC SPDIF:

• PCM 44.1 kHz–192 kHz, 16–24-bit
• DSD64 (DoP64, DSD over PCM)

STREAMING PROTOCOL

• UPnP AV protocol with audio streaming extension (OpenHome)
• Roon Ready
• Spotify Connect
• Flac lossless Radio stations
• AirPlay-compatible
• Gapless Playback
• On-Device Playlist

APP FEATURES

• Native support for TIDAL, MQA, Qobuz and TuneIn Radio.
• Tidal MQA icons to identify high-res music
• Qobuz high-res icons to identify high-res music
• Volume control
• High-resolution artwork
• Artwork caching
• Search
• Multiple tag handling
• Composer tag support
• Album-grouping in playlist
• Automatic internet links to artists/album/songs
• Saving and restoring of playlists (including Tidal and Qobuz)

SUPPORTED AUDIO FILE FORMATS

• DSD Lossless: DSF (DSD), DIFF (DSD), DoP (DSD)
• PCM Lossless: FLAC, Apple Lossless (ALAC), WAV, AIFF
• Compressed (lossy) Audio: MP3, AAC (in M4A container)
• MQA

INPUT

• Gigabit Ethernet Network (1000BASE-T) RJ45
• Shared USB port can also be used for storage, flash drive, USB hard disk (Single-partition FAT32, exFAT and NTFS only)

ANALOGUE AUDIO OUTPUTS

• XLR balanced, 6Vrms, pin 2 Hot
• RCA unbalanced, 3Vrms

SUPPORTED CONTROL DEVICES

• All models of Apple iPad (v2 or later). iOS 8.0 or later required. Full Retina Display support.
• Android devices. Android 4.0 (Ice Cream Sandwich) or later required

OTHER

• Leedh Processing lossless digital volume control
• Programme of Continuous Development – Firmware-upgradable for further features and enhancements
