X1 Specification
DSD Support: Up to DSD512 22.6MHz, 1-bit
PCM Support:Up to 768kHz, 16–32-bit, Stereo
Analog Output Stage: Dual ESS SABRE32 ES9038Pro DAC chips, Fully balanced layout with high-quality components, Output connectors coupled with dual LUNDAHL LL7401 output transformers, Femto Clock System with precision FPGA distribution
Upsampling rates & bit depths: DSD128 upsampling option for all files PCM 384kHz upsampling option for all files
Digital Output Stage:
USB: Native DSD512 support, PCM 44.1–768kHz, 16–32-bit, Stereo
BNC SPDIF: PCM 44.1kHz–192kHz, 16–24-bit, DSD (DoP, DSD over PCM) 2.8MHz, 1-bit
Optical Network: Industry-standard SFP, 1000Base-T Gigabit Ethernet, Adapter may be needed for your particular switch/cables, Use simultaneously with RJ45 (e.g. connect one to router and one to LUMIN L1 or NAS)

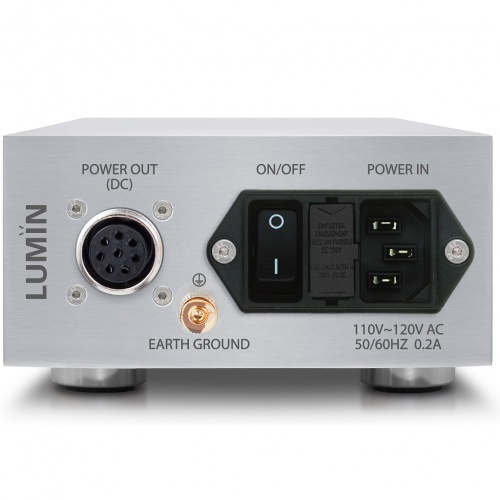

Power Supply: External solid billet cnc dual-toroidal, Separate digital & analogue circuitry, Low-noise linear regulator, 9-pin Output Connector
Physical:

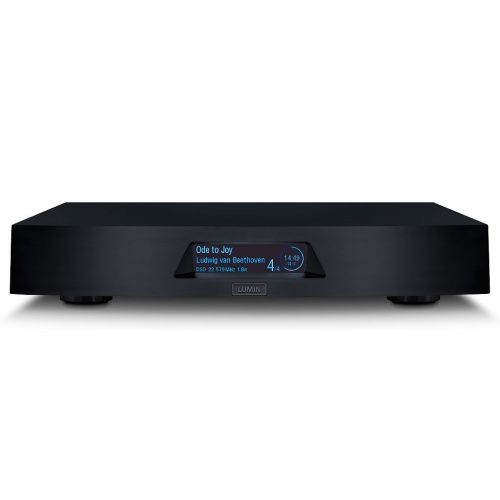

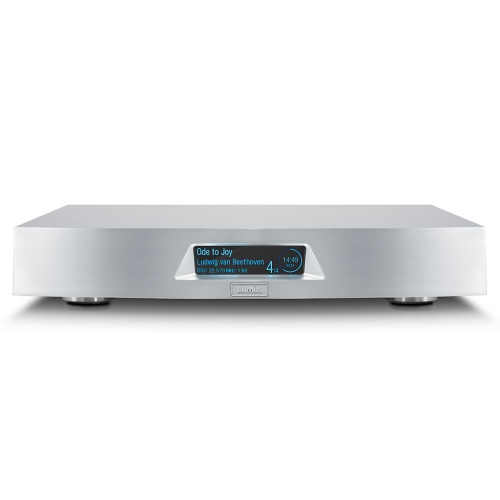

Finish: Black anodised brushed aluminium (with matching PSU), Raw brushed aluminium (with matching PSU)
Lumin (solid aluminium chassis): 350mm (W), 345mm (D), 60mm (H), 8kg

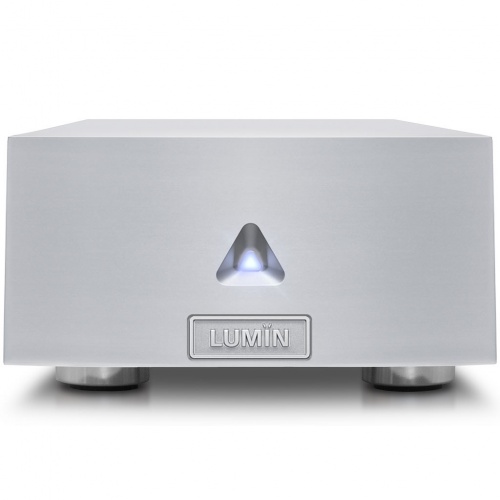

PSU (solid aluminium chassis): 106mm (W), 334mm (D), 60mm (H), 4kg
Specification for all LUMIN music streamers
Streaming Protocol: UPnP AV protocol with audio streaming extension (OpenHome), Tidal Connect, Spotify Connect, Apple AirPlay, Gapless Playback, On-Device Playlist
App Features:
Native support for TIDAL, MQA, Qobuz and TuneIn Radio.
Tidal MQA icons to identify high-res music.
Qobuz high-res icons to identify high-res music.
Volume control
High-resolution artwork
Artwork caching
Search
Multiple tag handling
Composer tag support
Album-grouping in playlist
Automatic internet links to artists/album/songs
Saving and restoring of playlists (including Tidal and Quobuz)
Supported Audio File Formats:
DSD Lossless: DSF (DSD), DIFF (DSD), DoP (DSD)
PCM Lossless: FLAC, Apple Lossless (ALAC), WAV, AIFF Compressed (lossy) Audio: MP3, AAC (in M4A container) MQA
