M2Tech Marley MKII Headphone Amplifier

M2Tech Marley MKII Headphone Amplifier

The Marley MkII is a high-performance headphone amplifier with literally all you need for a first-class headphone listening.

Its discrete components, low-noise design with FET input delivers crystal-clear power to every kind of headphones. The totally silent background, even with the most sensitive headphones, is granted by an ultra-low noise dual regulator. Up to 10 Vrms max output voltage (20 Vrms at the balanced output) allow every headphones model to give its best.

The Marley MkII is very versatile: apart accepting both single-ended and balanced sources, it is provided with a 3-band tone control to allow user to tailor its frequency response to the headphones-ear one. The tone control can be disabled.

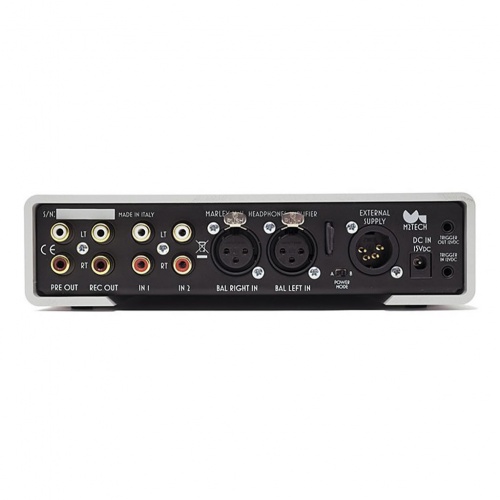

As well, old stereo recordings (affected by the so-called “ping pong effect” caused by excessive channel separation) can be enjoyed by enabling the cross-feed circuit. Perfect match with every kind of headphones is also achieved by selecting the output impedance between Lo-Z, 10 OHms and 47 Ohms. A tape output and a preamp output (doubling the single-ended output on RCA connectors on the back panel) allow to use the Marley MkII as a true preamplifier.

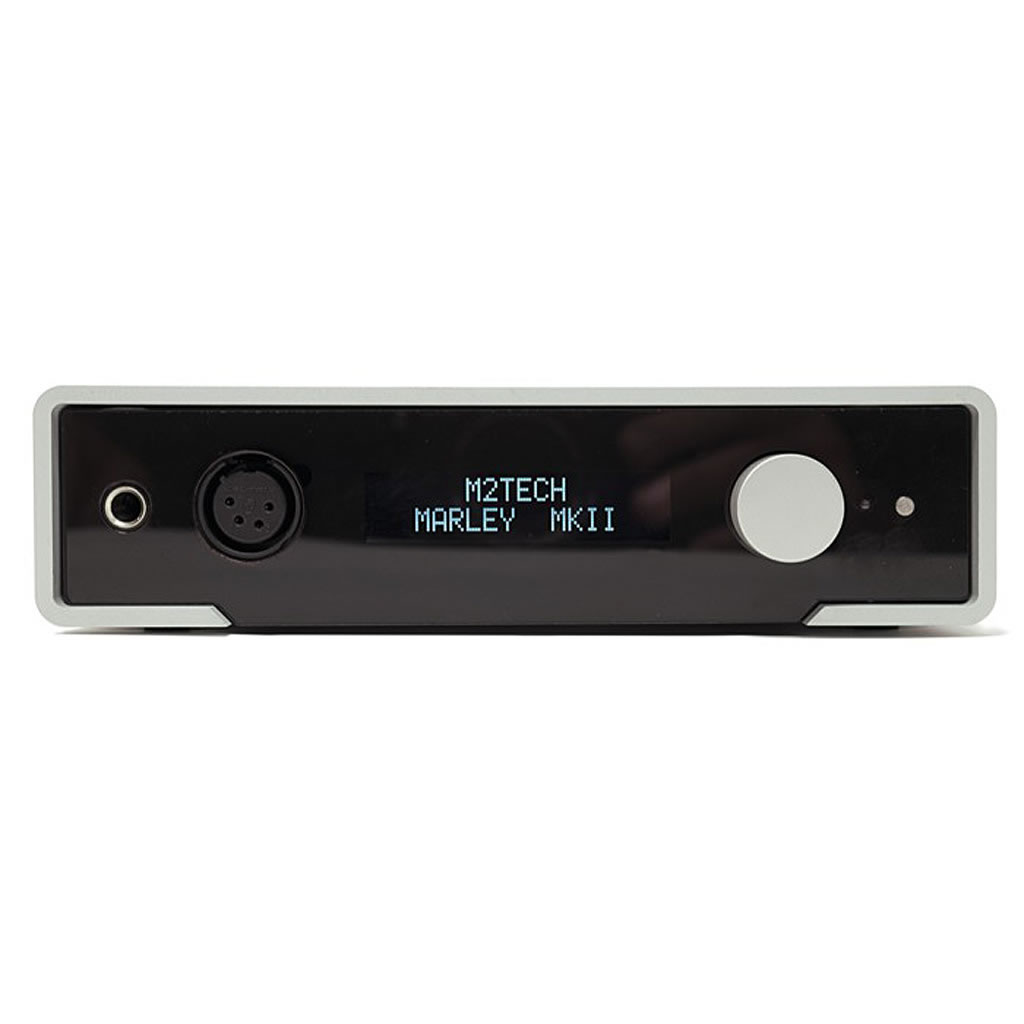

The Marley MkII can be operated by the front panel controls, by the IR remote control and by an app (available for both iOS and Android) via Bluetooth Low Energy.

Inputs:

• 2x single-ended (RCA)
• Balanced (XLR)
• Trigger (3.5mm jack)

Outputs:

• Headphones single-ended (jack 6.35mm)
• Headphones balanced (4-pole XLR)
• Tape out (RCA)
• Preamp out (RCA)
• Trigger (jack 3.5mm)

Sensitivity:

• 1.1Vrms
• 5V (trigger)

Input impedance:

• 47 kOhms (single-ended)
• 20 kOhms (balanced)

Output impedance:

• Lo-Z/10 Ohms/47 Ohms (selectable)

Signal-to-Noise Ratio:

• 115dBA (single-ended)
• 118dBA (balanced)

THD+N:

• 0.0008% @ 9Vrms out on 8 Ohms

Output Voltage Before Clipping:

• 9Vrms (8 Ohms, Lo-Z)
• 10Vrms (300 Ohms, Lo-Z)

Tone Controls:

• +/-12dB in 1dB steps

Muting:

• -20dB

Supply voltage:

• 15VDC or +15/-15/+5VDC

Power Consumption:

• 33W (9Vrms on 8 Ohms single-ended)
• 0.5W (standby)

Size:

• 200x200x50mm (wxdxh)

Weight:

• Net 2kg (including ancillaries)
• Gross 2.5kg
