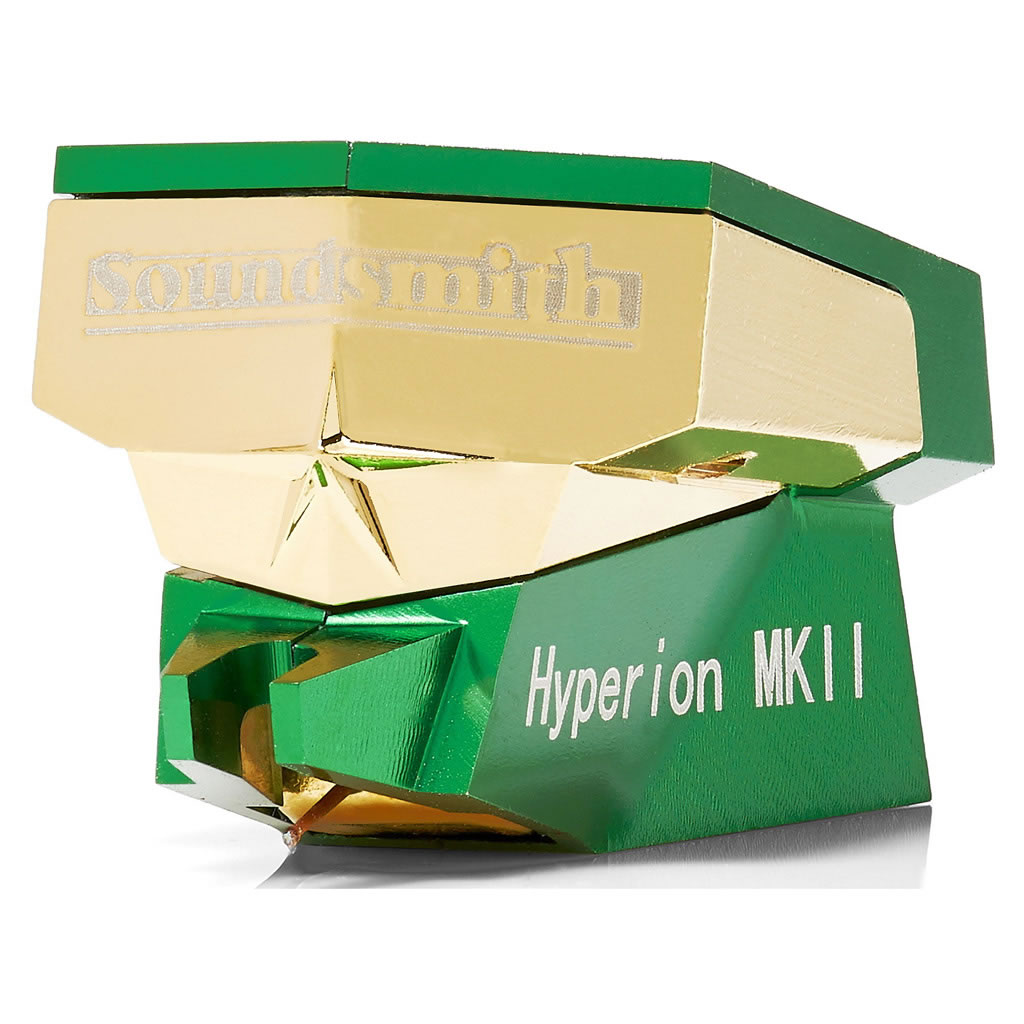

Soundsmith Hyperion ES MKII Phono Cartridge

Soundsmith Hyperion MKII ES Series Low Output Phono Cartridge

The HYPERION is the cartridge of choice for the most esteemed audio equipment manufacturers. Why? Because when they exhibit their gear at Hi-Fi shows, they want their turntable, amplifier or speaker systems to sound the very best that they can! Peter Ledermann‘s radical design utilizes an actual “cactus spine” for the cantilever.

The naturally tapered shape, stacked columnar fibers and desiccated resin damping fit the exact parameters of the perfect cantilever: Low mass, extreme rigidity, internal damping, and tremendous strength. Also available in a Dual Compliance Design for older Linear Tracking turntables as the HYPERION LT.

The Hyperions are offered with a choice of CL or OC-CL stylus. Each one hand crafted by Peter Ledermann - Made in  the USA. Warranty: 10 Years Parts and Labour.

• Cartridge Type: Fixed Coil
• Stylus Type: Contact Line O.C. Contact Line
• Output: Low
• Output Voltage: 0.4 mV
• Available As Dual Coil Mono

• Type: Fixed Coil / Moving Iron
• Mount: Standard ½”
• Stylus: Contact Line, Nude, 0.10 mm square
• Radius of Curvature: Contact Line or Optimized Contact Line
• Cantilever: Hand formed/treated selected Cactus "Spine"
• Recommended Tracking Force: 1.8 - 2.2 g
• Effective Tip Mass: 0.30 mg
• Compliance: 12 μm/mN vertical, 7 μm/mN horizontal. 10 μm/mN (LT version)
• Frequence Response: 20 - 20,000 Hz ± 1.0 dB
• Channel Separation @ 1000 Hz: > 36 dB. > 34 dB (LT version). N/A (Mono version)
• Channel Separation @ 50 - 15,000 Hz: > 25 dB, N/A (Mono version)
• Channel Difference: < 0.5 dB. < 1.0 dB (Mono version)
• Output Voltage @ 5cm/sec: > 0.40 mV
• DC Resistance (DCR): 10Ω
• Coil Inductance per channel: 2.75 mH
• Suggested Preamp Gain: 58 - 64 dB
• Cartridge Weight: 12.2 g (ES series)
• Recommended Load Resistance: ≥ 470Ω
• Recommended Load Capacitance: n/a
