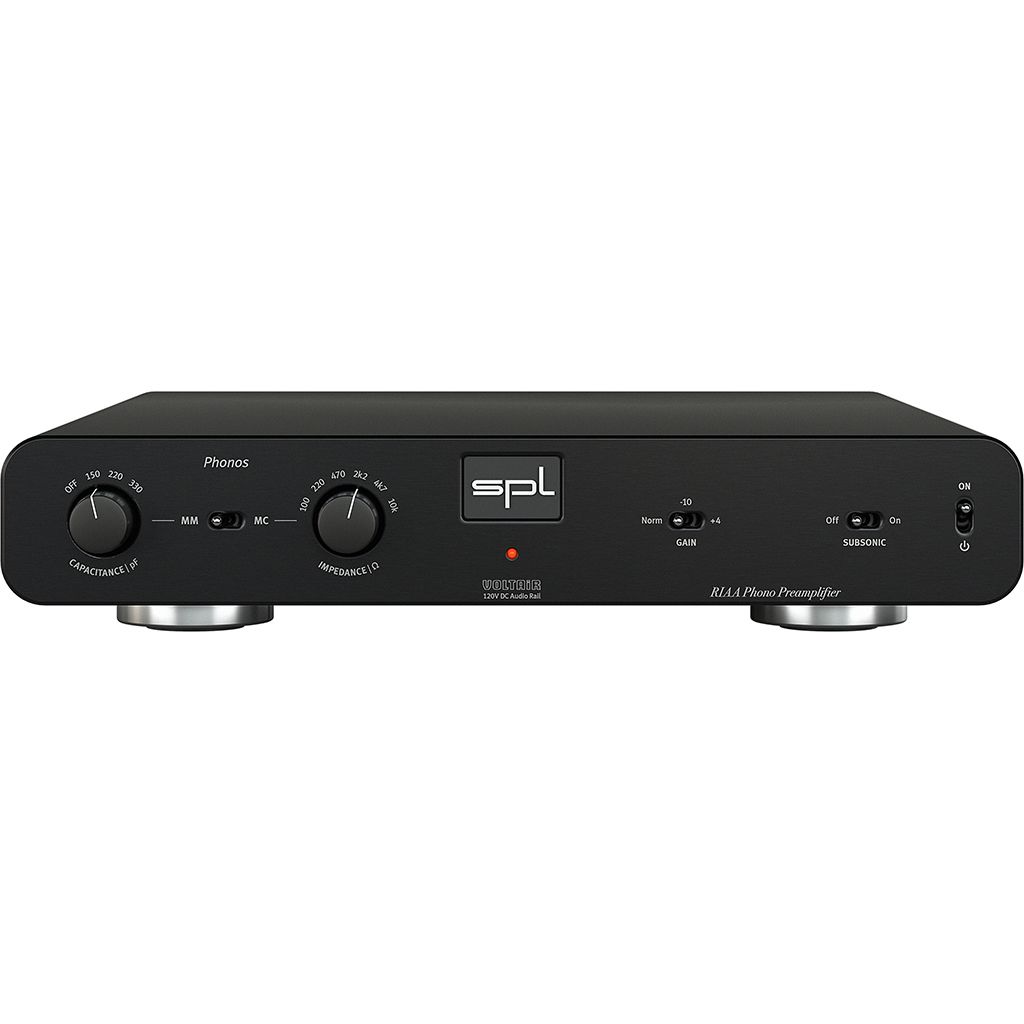

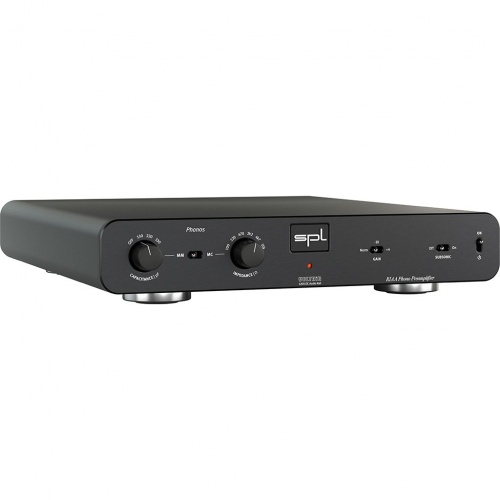

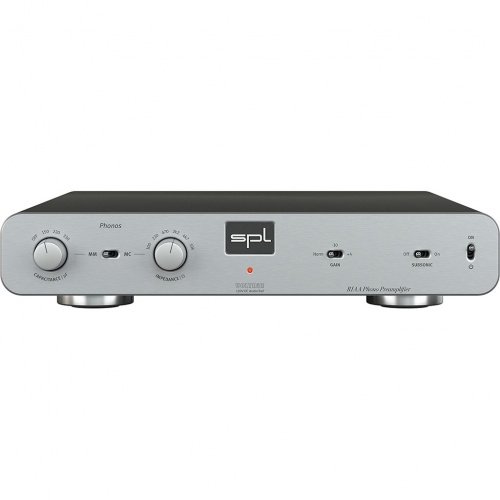

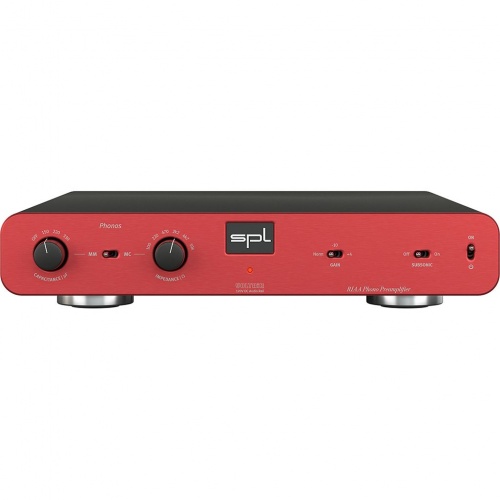

SPL Phonos ProFi Preamplifier

SPL Phonos ProFi Preamplifier

RIAA Phono Preamplifier

This phono preamplifier for Moving Magnet (MM) and Moving Coil (MC) pickup systems is based on the legendary Douglas-Self-Design.

MM & MC

There are two pickup systems for record players: Moving Magnet (MM) and Moving Coil (MC).

Moving Magnet

Moving magnet pickups generate a small voltage by moving a magnet between copper coils. MM pickups have a very high inductance and impedance.

Moving Coil

The MC pickup is also a small electromagnetic generator, but with the magnets firmly anchored and the coils moving between them, i.e. exactly the opposite of the MM pickup.

Amplification

The pre-amplification can be switched in three values. The normal gain value is +46 dB for MM and +67 dB for MC cartridges.

In the -10 dB position, the phono produces enough output level for normal hi-fi equipment operating at a reference level of -10 dBV.

In the +4 dB position, the output level is about as loud as that of modern DA converters at a reference level of 0dBfs = +15 dBu.

Subsonic Filter

The rumbling of the turntable’s drive mechanism is also amplified by the high amplification of the bass range due to RIAA equalization in playback. The Phonos offers a switchable subsonic filter to remove this rumble.

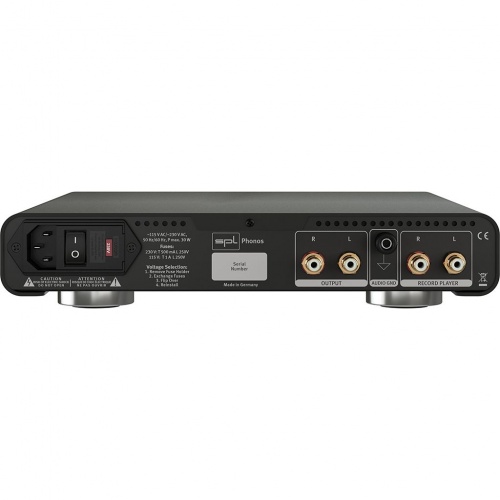

Connections

Gold-plated RCA sockets are available for connecting the turntable and for outputting to a preamplifier such as the Director Mk2 or the Elector.

A ground connection for the turntable is designed as banana plug socket. The ground lead can be either clamped or plugged in.

Main Features:

• Subsonic Filter
• RIAA Phono Preamplifier
• Gold-plated RCA sockets
• Based on the legendary Douglas-Self-Design.
• Moving Magnet (MM) and Moving Coil (MC) Pickup System

Analog Input & Output: RCA:

• Input impedance (MM): 47 kΩ
• Input impedance (MC): switchable
• Output impedance: 75 Ω
• Frequency range (-3 dB): 4 Hz – 300 kHz
• Crosstalk (1 kHz): -80 dBu

Moving Magnet (MM) Preamplifier:

• Amplification (Norm): 46 dB
• Amplification (-10 dB): 36 dB
• Amplification (+4 dB): 50 dB
• Capacitance (switchable): Off, 150 pF, 220 pF and 330 pF
• Noise (A-weighted; 46 dB amplification): -85.3 dBu
• Dynamic range: 131.3 dB

Moving Coil (MC) Preamplifier:

• Amplification (Norm): 67 dB
• Amplification (-10 dB): 56 dB
• Amplification (+4 dB): 71.5 dB
• Impedance (switchable): 100 Ω, 220 Ω, 470 Ω, 2.2 kΩ, 4.7 kΩ, 10 kΩ
• Noise (A-weighted, 67 dB amplification): -61.7 dBu
• Dynamic range: 128.7 dB

Internal Linear Power Supply with Shielded Toroidal Transformer:

• Operating voltage for analog audio: +/- 60 V
• Operating voltage for relays and LEDs: + 12 V

Mains Power Supply:

• Mains voltage (selectable, see fuse chamber): 230 V AC / 50; 115 V AC / 60 Hz
• Fuse for 230 V: T 500 mA
• Fuse for 115 V: T 1 A
• Power consumption: max. 30 VA
• Stand-by power consumption: < 0,3 W

Dimensions & Weight:

• W x H x D (width x height incl. feet x depth): 278 x 100 x 300 mm / 11 x 4 x 11.81 inch
• Unit weight: 3.2 kg / 7.05 lbs
• Shipping weight (incl. packaging): 4.3 kg / 9.48 lbs
