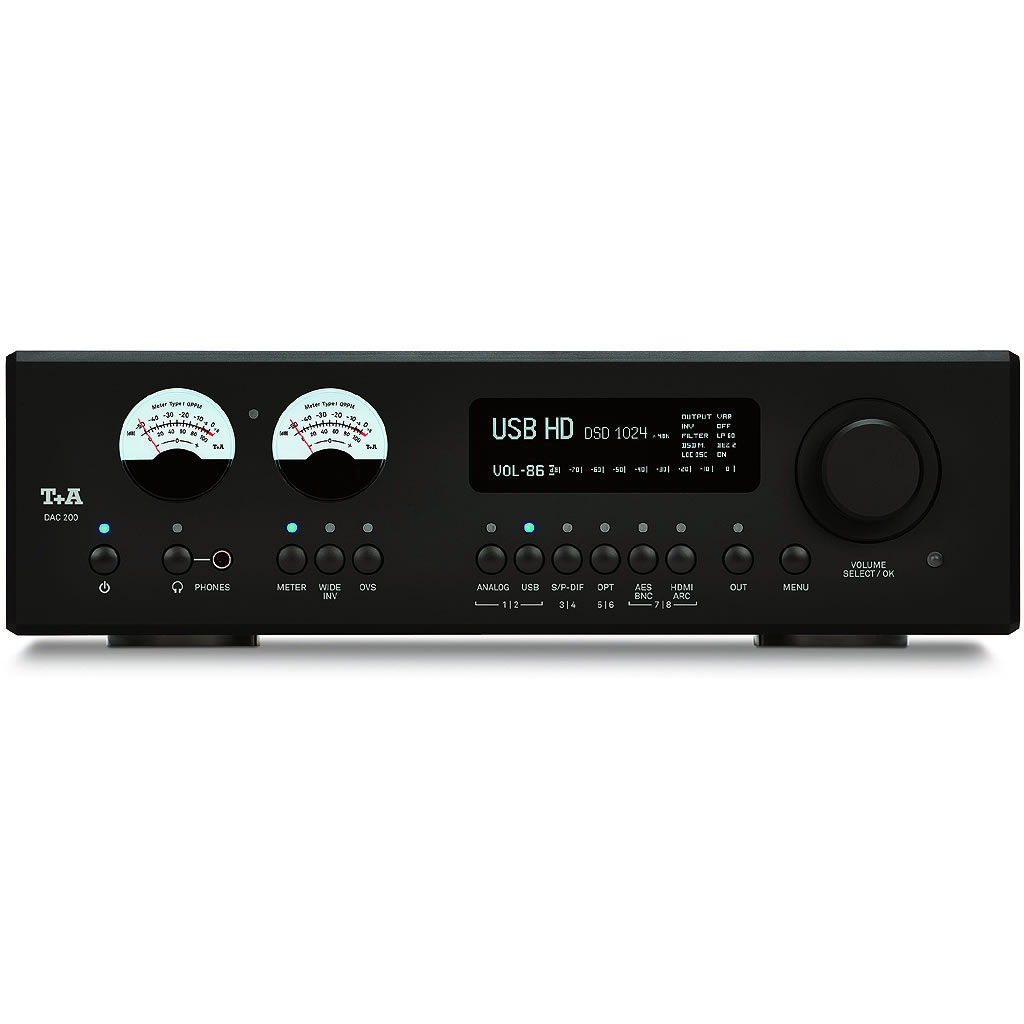

T+A DAC 200 Digital Analogue Converter

T+A DAC 200 Digital Analogue Converter and Pre-Amp

The DAC 200 is the latest member of an extended family of High-End converters and pre-amplifiers. Every aspect of its design symbolises our uncompromising commitment to science and music.

The ability to reproduce DSD 1024 files and its complete galvanic separation are just two highlights which underline the potential of the DAC 200 in impressive style.

The DAC 200 is designed to convert a large number of digital formats into natural-sounding analogue signals, and to pass them on via the integral headphone or analogue outputs.

• DAC Technology from the HV Range SDV 3100 Reference DAC, with completely separate PCM / DSD signal paths.
• PCM: Double-Differential-Quadruple Converter up to 32 Bit/768 kHz.
• DSD: T+A True 1-Bit Converter, native Bitstream up to DSD 1024.
• Discreetly designed Pre-Amp circuit from the HV range Class A, volume control by encapsulated gold contact relays.
• Complete galvanic separation between digital and analogue section.
• Discreetly designed High Performance headphone output stage, up to 200 mA Class A.
• One Analogue Input.
• Optional HDMI module with two inputs and one ARC throughput.

Analogue section

• Frequency response: + 0 / − 3 dB, 0,1 Hz – 200 kHz
• Signal / noise ratio: 110/114 dB
• THD / Intermodulation: < 0,001 % / < 0,001 %
• Channel separation: > 108 dB

Preamplifier outputs

• Variable: High level (RCA) 0...2,5 Veff / 22 Ohms, balanced (XLR) 0...5,0 Veff / 22 Ohms
• Fixed: High level (RCA) 2,5 Veff / 22 Ohms, balanced (XLR) 5,0 Veff / 22 Ohms discreetly designed Class A-HV-output stage in Double-Mono-Circuitry
• Volume control: Gold contact relays controlled in 1 dB steps, - 90 dB to 0 dB
• Headphone output: 4.4 mm Pentaconn, discreetly designed high performance output stage, Class A operation up to 200 mA, 6 Ohms output impedance

Analogue inputs

• High level (RCA) 250 mVeff ... 4,5 Veff / 10 kOhms

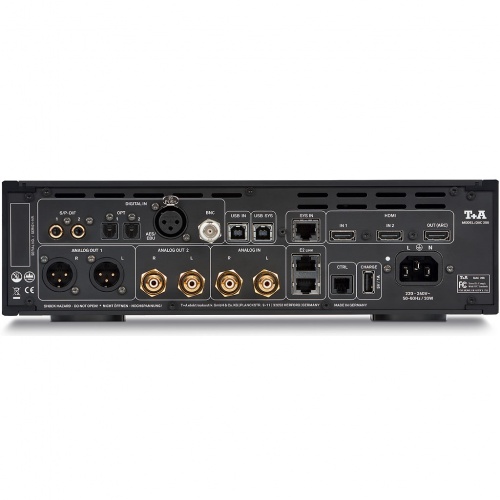

Digital inputs

• 1 x AES-EBU 32...192 kHz / 16-24 Bit
• S/P-DIF: 2 x Standard Coax, 2 x optical TOS-Link 32...192 kHz / 16-24 Bit and DoP DSD64 (0x05/0xFA Marker)
• 1 x BNC 32...192 kHz / 16-24 Bit
• 2 x USB DAC: Device-Mode 44,1 ... 768 kSps (PCM) and up to DSD1024*, supports asynchronous data transfer. *DSD 512 and DSD 1024 with Windows PC and appropriate driver installed or Linux PC with Kernel 4.4 or higher only.
• Supports DoP up to DSD 256 (0x05/0xFA Marker).
• 2 x HDMI IN, 1 x HDMI OUT with ARC (as an option)

D/A converter section

• PCM: Double-Differential-Quadruple-Converter with four 32-Bit Sigma-Delta
• D/A converter per channel, 705,6 / 768 kSps conversion rate
• DSD: T+A-True-1Bit DSD D/A converter, up to DSD 1024 (49,2 MHz), native bitstream
• Upsampling: T+A signal-processor – synchronous upsampling with four selectable oversampling algorithms. FIR short, FIR long, Bezier/IIR, Bezier, NOS (non-oversampling)
• Analogue filter: Phase-linear Bessel filter 3rd order, switchable with 60 or 120 kHz cut of frequency

Mains / Accessories / Dimensions

• Mains: 200 – 240 V, 50 – 60 Hz, 30 Watts
• Standby: < 0,5 Watts
• Dimensions: (H × W× D) 10 × 32 × 34 cm, 4 x 12.6 x 13.4 inch
• Accessories: Remote control FM200, power cord, USB cable 2.0 for DAC, RCA cable
• Weight: 6,2?kg, 13.7 lbs

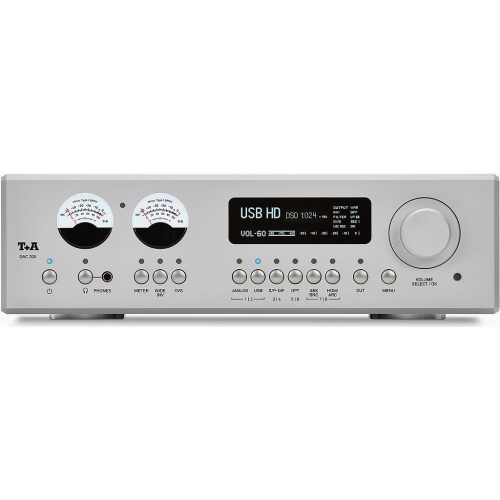

• Finishes: Alu silver anodized (43), Alu schwarz anodized (42)
