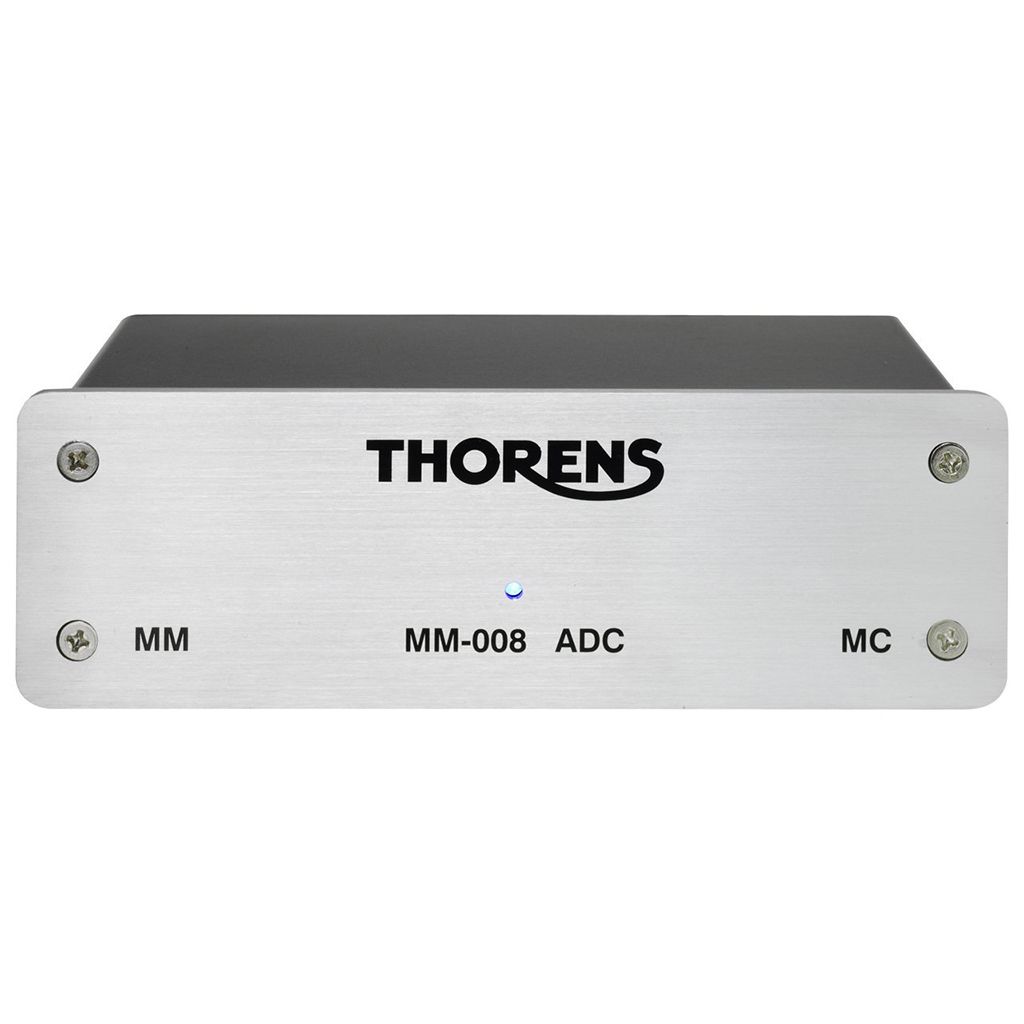

Thorens MM 008 ADC Phono Preamplifier

Thorens MM 008 Phono Preamplifier​

High-quality metal housing with brushed aluminium front panel, external power supply unit and compact size. Includes integrated Analogue to Digital Converter (ADC) to transfer your vinyl collection to your computer.

Main Features:

• Excellent Moving Magnet Sound Quality
• High Quality Metal Enclosure
• Exceptionally Low Noise Levels

• Mode: MM/MC (switchable)
• Gain at 1 kHz: 40 dB (MM)/60 dB (MC)
• Input impedance (MM): 47 kΩ + 220 pF fixed
• Input impedance (MC): 47 kΩ + 1 nF (modifiable with external load plugs)
• Frequency response (flat): 20 Hz - 20 kHz ±0.3 dB
• Frequency response (-3 dB): 10 Hz - 50 kHz
• RIAA curve accuracy: ±0.3 dB
• THD+N: <0.013% (MM)/<0.055% (MC)
• Signal-to-noise ratio: >86 dB (MM)/>72 dB (MC)
• Crosstalk: ≧40 dB
• Input sensitivity (MM): 3.29 mVrms for -10 dBV output (316 mVrms)
• Input sensitivity (MC): 0.325 mVrms for -10 dBV output (316 mVrms)
• Max. output voltage: 482 mVrms at 5 mVrms input (1 kHz)
• Output impedance: 47 Ω
• Input connections: 3 pairs of RCA sockets (left/right)
• Output connections: 1 pair of RCA sockets (left/right)
• Power supply: 24 V DC
• Power consumption: 3.5 W/15 mA
• Weight: 511 g (not including power supply)
• Dimensions (W x H x D): 150 x 50 x 117 mm
• A/D converter: Tenor TE7022L 24Bit Delta Sigma
• Sampling rates: 8,16, 32, 44.1, 48, 96 kHz
• USB output: USB 2.0, fully backward-compatible with USB 1.1
• Operating systems: Windows® 8, Windows® 7, Vista, XP, Mac OS®
