Atlas Ascent Ultra RCA - BNC S/PDIF Digital Interconnect Cable

Atlas Ascent Ultra RCA - BNC S/PDIF Digital Interconnect Cable

Designed to maintain a true 75 Ohm impedance.

The central conductor is made from OCC copper which is insulated by an extremely low-loss PEF (Foamed Polyethylene) dielectric.

The tightly woven wire mesh together with an aluminium outer foil provides 100% rejection of RFI (Radio Frequency Interference) ensuring the music signal is free from any external interference or noise. The cable is covered by a soft PVC sleeve and finished in a grey woven fabric.

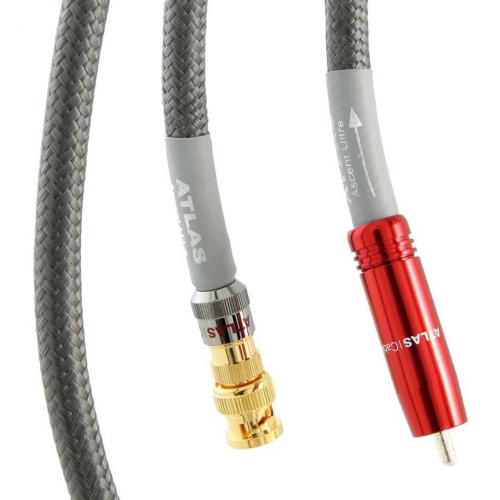

The Ascent BNC digital cable is normally terminated with an Ultra RCA plug at the source end and a BNC plug at the ‘receiving’ end, but can be specified with BNC connectors at both ends if required.

BNC connections are generally with regard to impedance matching, so are preferred if available on your equipment, providing a continuous path for the signal virtually free of the discontinuities which can degrade the music signal.

This is particularly important in a digital cable, connectors which compress the cable can actually alter the cable’s impedance, which drops below the 75 Ohm specification, typically by up to 50%, reducing accuracy of the signal transfer.

Main Features:

• Designed to maintain a true 75 Ohm impedance.
• Central conductor is made from OCC copper
• Insulated by an extremely low-loss PEF (Foamed Polyethylene) dielectric
• Tightly woven wire mesh with an aluminium outer foil provides 100% rejection of RFI
• A music signal free from any external interference or noise guaranteed

• Construction: Co-ax
• Material: OCC
• Dielectric: PEF (Foamed Polyethylene)
• Screen: Braid OFC with Al Mylar,™ 100%
• Capacitance: 59.37 pF/m
• Inductance: 0.473 µH/m
• Resistance: 0.7311 Ohms/m
• Impedance: 73.11 Ohms at (1MHz)
• VOP: 0.81
• Outside Diameter: 8.5mm
