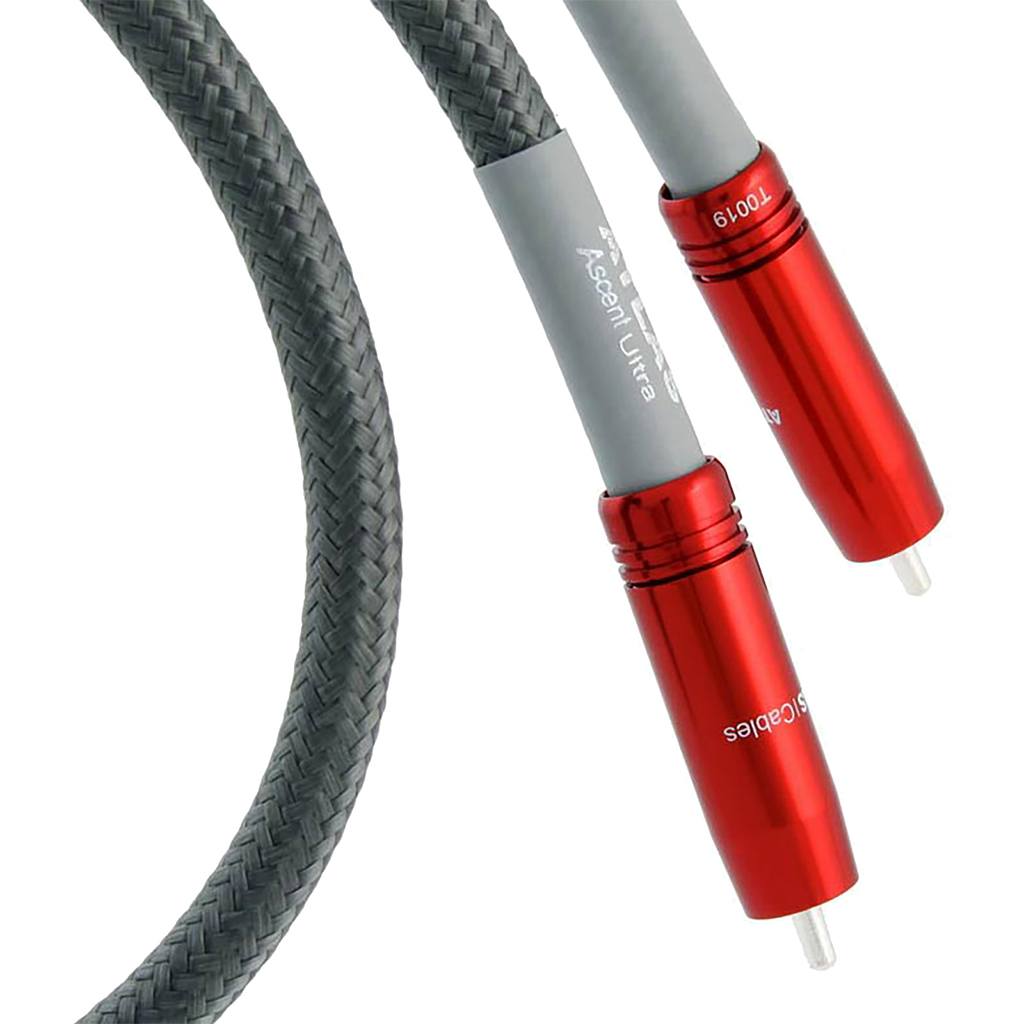

Atlas Ascent Ultra RCA S/PDIF Digital Interconnect Cable

Atlas Ascent Ultra RCA S/PDIF Digital Interconnect Cable

The central conductor is made from OCC copper which is insulated by an extremely low-loss PEF (Foamed Polyethylene) dielectric. The tightly woven wire mesh together with an aluminium outer foil provides 100% rejection of RFI (Radio Frequency Interference) ensuring the music signal is free from any external noise. The cable is covered by a soft PVC sleeve and finished in a grey woven fabric.

The Ascent digital cable is terminated with the cold-weld connected wideband Ultra RCA plugs. The result is a smooth, uninterrupted signal path which behaves as one continuous entity, with minimal degradation of the signal compared to soldered connections.

This is particularly important in a digital cable, connectors which compress the cable can actually alter the cable’s impedance, which drops below the 75 Ohm specification, typically by up to 50%, reducing accuracy of the signal transfer.

Main Features:

• Designed to maintain a true 75 Ohm impedance.
• Smooth, uninterrupted signal path
• Cold-weld connected wideband Ultra RCA plugs
• The central conductor is made from OCC copper, insulated by an Extremely low-loss PEF dielectric
• The tightly woven wire mesh together with an aluminium outer foil provides 100% rejection of RFI (Radio Frequency Interference)

• Construction: Co-ax
• Material: OCC
• Dielectric: PEF (Foamed Polyethylene)
• Screen: Braid + Al Mylar™
• Capacitance: 59.37 pF/m
• Inductance: 0.473 µH/m
• Resistance: 0.7311 Ohms/m
• Impedance: 73.11 Ohms at (1MHz)
• VOP: 0.81
• Outside Diameter: 8.5mm
