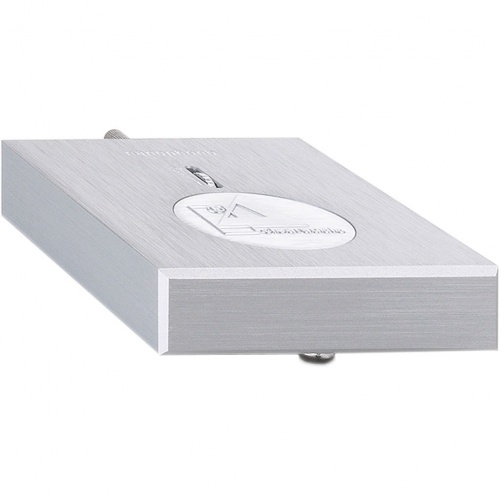

Clearaudio Nano Phono V2 Phonostage

Clearaudio Nano Phono V2 Adjustable MM/MC Phonostage

The Nano Phonophonostage isn't ruffled by anything. External interferences are no longer an issue with this fine piece of engineering.

Its meticulously selected SMD components are assembled by hand in Erlangen and tested several times. The reward of these efforts is a signal to noise ratio of up to 84 decibels. The input impedance is set using plug-in links, so there is no loss of quality when using different moving magnet and moving coil cartridges.

The Nano Phono Headphone additionally contains a powerful headphone amplifier within the solid aluminium housing for private listening at the highest fidelity.

Total weight

Approx. 500 gram (preamp and power supply)

Max. output voltage

10 V eff. (1 kHz)

Dimensions

Width:3.35 inchesDepth:4.17 inchesHeight:0.98 inches

Material/color

Aluminium

• Amplification @ 1 kHz: 34 dB to 48 dB (MM mode), 54 to 68 dB (MC mode): Input load: 47 kOhm / 220 pF / MM mode, Individual / User / MC mode, MM / MC input: switchable (at bottom)
• Subsonic Filter: switchable (at bottom)
• RIAA: delay time: 75 μs / 318 μs / 3180 μs
• RIAA accuracy: ± 0.4 dB @ 20 Hz - 50 kHz
• THD: < 0,04%
• Headroom: 18 dB / MC
• Signal to noise ratio: 81 dB (A) (MM – Mode) 70 dB (A) (MC – Mode)
• Channel separation: > 80 dB @ 1 kHz / opposed channel hot-wired Max. output voltage: 10 V eff. (1 kHz)
• Power supply: ± 18 V DC / 300 mA (external power supply)
• Input / Outputs: unbalanced (RCA)
• Power consumption: Max. consumption: 2.3 Watt
• Consumption in operation: 2.3 Watt
• Standby mode: < 0.3 Watt
• Off mode: 0.0 Watt
• Weight: Approx. 500 g (preamp and power supply)
• Dimensions (W/D/H in inches): 3.35 x 4.17 x 0.98
• Dimensions (W/D/H in mm): 85 x 106 x 25
• Warranty: 3 years*
• * Only if the Manufacturer's guarantee card is filled out correctly and sent back within 2 weeks to Clearaudio.
