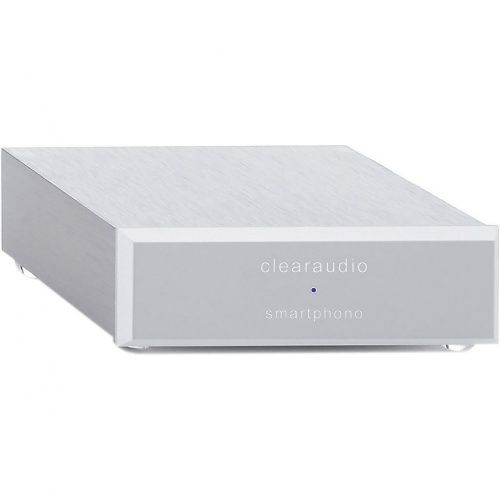

Clearaudio Smart Phono V2 Phonostage

Clearaudio Smart Phono V2 Phonostage

Improved version of the Smart Phono

A light 620-gram phonostage that seduced the worldwide audio press. The only thing that is 'entry level' about this product is its price.

A minimalist aluminium housing that contains one of the best sounding phonostages in its market. Up to 54 decibels gain at one kilohertz and an extremely linear frequency response deliver unprecedented quality at this price point. For MM and MC cartridges there are two separate circuit designs using SMD technology, which are selected by a slide switch on the underside.

The Smart Phono Headphone V2 additionally contains a powerful headphone amplifier within the solid aluminium housing for private listening at the highest fidelity.

Total weight

Approx. 600 gram (Preamp and power supply)

Max. output voltage

10 V eff. (@ 1 kHz)

Dimensions

Width:3.74 inches, Depth:4.92 inches, Height:1.34 inches

Material/color

Aluminium

• Amplification @ 1 kHz: 54 - 68 dB (MC mode), 34 - 48 dB (MM mode)
• Input impedance: 50 Ohm, 100 Ohm, 500 Ohm, 1 kOhm, 5 kOhm / 150 pF, 250 pF, 400 pF / MC mode, 47 kOhm / 150 pF, 250 pF, 400 pF / MM mode
• MM / MC input: switchable (at bottom)
• Subsonic Filter: switchable (at bottom)
• RIAA: delay time: 75 µs / 318 µs / 3180 µs
• RIAA accuracy: ± 0.3 dB @ 10 Hz - 100 kHz
• THD: < 0,004% MC ("A" weighted @ 1 kHz / -1 dB @ Max)
• Headroom: 18 dB / MC (Gain Control on MAX)
• Signal to noise ratio: 72 dB / MC ("A" Weighted) 85 dB / MM ("A" Weighted)
• Channel separation: > 90 dB @ 1 kHz / opposed channel hot-wired Max. output voltage: 10 V eff. (1 kHz)
• Power supply: ± 18 V DC / 300 mA (external power supply)
• Output connections: unbalanced (RCA)
• Power consumption: Max. consumption: 2.7 Watt
• Consumption in operation: 2.7 Watt
• Off mode: 0.0 Watt
• Total weight: Approx. 600 gram (Preamp and power supply)
• Dimensions (W/D/H in inches): 3.74 x 4.92 x 1.34
• Dimensions (W/D/H in mm): 95 x 125 x 34
• Warranty: 3 years*
• * Only if the Manufacturer's guarantee card is filled out correctly and sent back within 2 weeks to Clearaudio.
