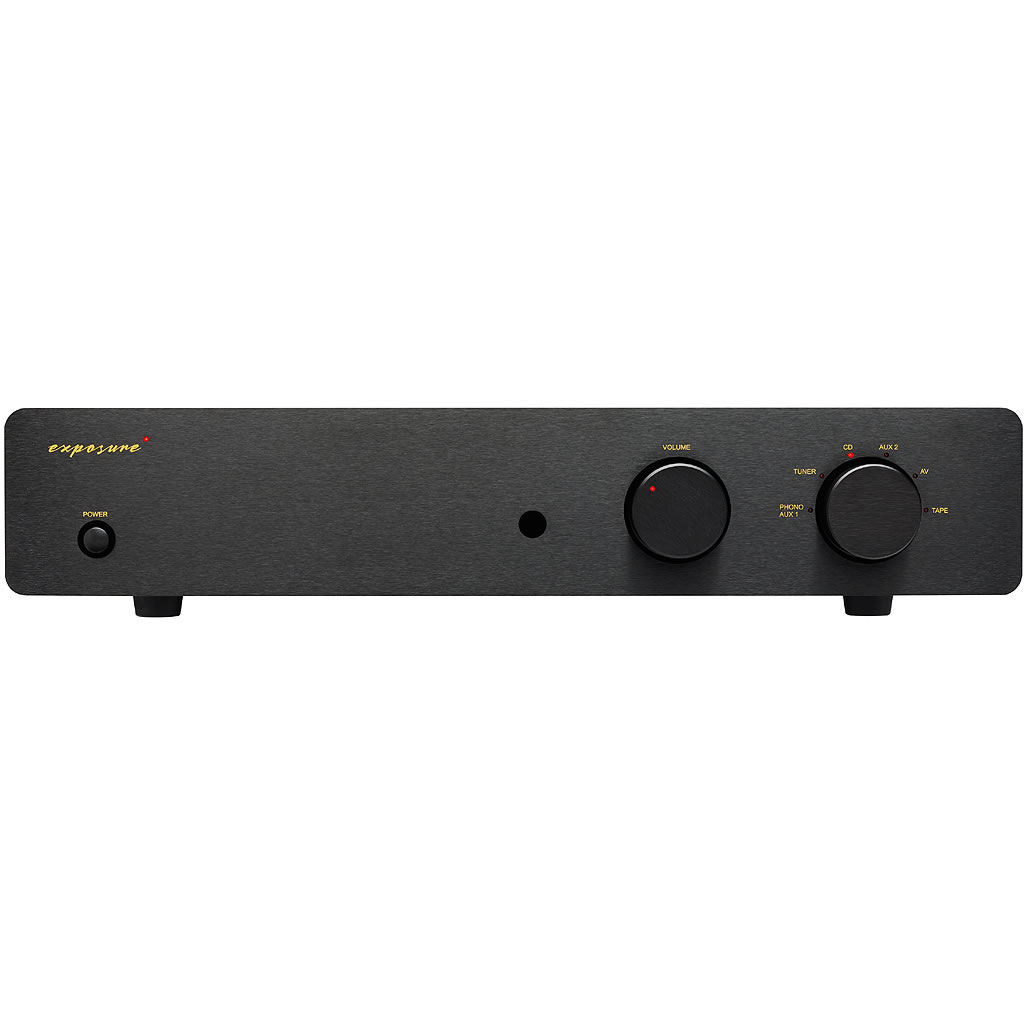

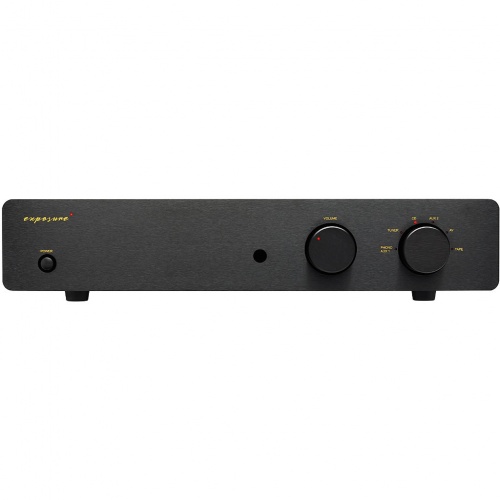

Exposure 2510 Integrated Amplifier

Exposure 2510 Integrated Amplifier

The Exposure 2510 integrated amplifier includes a built-in moving magnet (MM) phonostage and offers a worthwhile step-up in performance over their previous 2010S2.

• 75 watts RMS per channel into 8 Ohms
• Five line inputs
• MM phono stage fitted as standard
• Separate pre-amp output
• High quality capacitors used in the signal path
• Uniquely tuned short signal and power supply path PCB
• Cascode circuitry utilised for improved power supply immunity
• Fast bipolar transistor output stage for dynamic and vivid performance
• All aluminium casework and extruded front panel to control resonance and stray electro-magnetic fields
• Remote control
• Three year guarantee

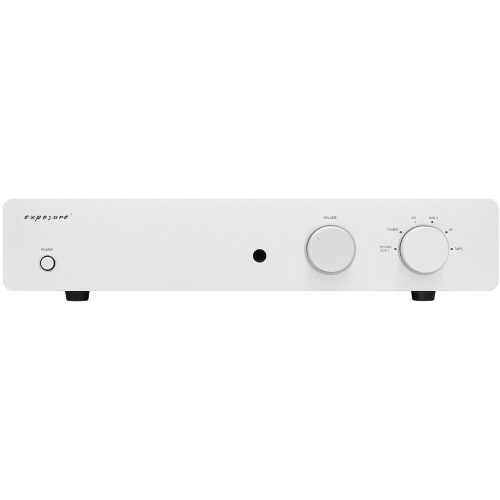

• Available in black or titanium

• 75 watts RMS per channel into 8 Ohms
• Five line inputs
• MM phono stage fitted as standard
• Separate pre-amp output
• High quality capacitors used in the signal path
• Uniquely tuned short signal and power supply path PCB
• Cascode circuitry utilised for improved power supply immunity
• Fast bipolar transistor output stage for dynamic and vivid performance
• All aluminium casework and extruded front panel to control resonance and stray electro-magnetic fields
• Remote control
• Three year guarantee
• Available in black or titanium

• Power Output (1KHz) : 75 Watts per channel into 8 Ohms
• Total Harmonic Distortion : <0.015% at 1Khz, rated power
• Frequency Response : 20Hz to 20KHz +/-0.5dB
• Signal to Noise Ratio ref 1KHz & 75W output : >100dB, A weighted
• Channel Separation : >60dB @ 1KHz LINE input open (shorted >80dB), >40dB @ 20KHz LINE input open (shorted >60dB)
• Pre Amplifier Output : +12dB ref LINE input
• Frequency Response : 20Hz to 20KHz +/-0.5dB
• Signal to Noise Ratio ref 1KHz & 1V output : >100dB, A weighted
• Channel Separation @ 20KHz >60dB input shorted, >40dB input open AUX2 input
• AV Input Fixed Level : 850mV @ 1KHz, 10K Ohms, S/N >100dB
• AUX 1 Phono Input MM : 2.5mV @ 1KHz, 47K Ohms, S/N >72dB
• LINE Inputs (Except AV) : 350mV @ 1KHz, >14K Ohms, S/N >100dB
• Mains Supply : 110/120V or 220/240V @ 50/60Hz (factory set)
• Fuse : T5AL for 110/120V units
• T2.5AL for 220/240V units
• Power Consumption : <200W
• Dimensions (WxHxD) : 440mm x 90mm x 300mm (inc knob)
• Net Weight : 6kg
• Gross Weight : 8kg
