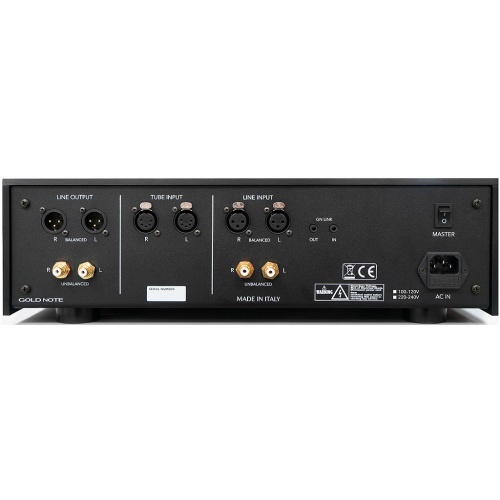

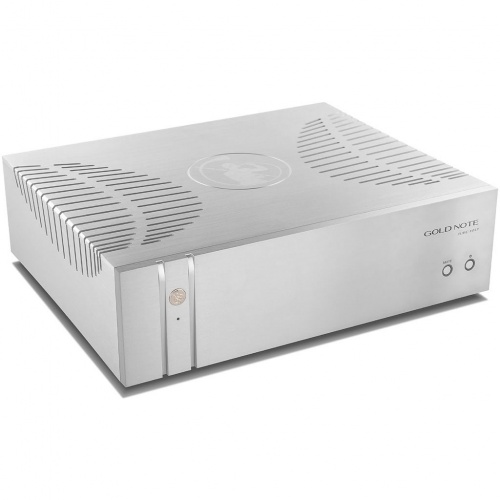

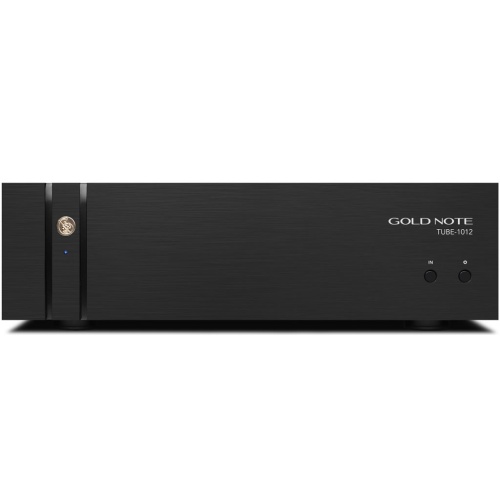

Gold Note TUBE-1012 Output Stage

Gold Note TUBE-1012 Class A Tube Output Stage

The best way to improve the sonic performance of the Gold Note sources.

Thanks to the Gold Note modular design, the Gold Note 1000 series Hifi-Electronics with the Vacuum Tube Output Stages can be given the quality sound of the valves. Upgrade your Gold Note system and enhance its performance with the Vacuum Tube Output stages to combine the best of the two technologies, Solid State and Tube in perfect synergy.

TUBE-1006 and TUBE-1012 can match CD-1000, DS-1000, P-1000 & PH-1000.

CLASS A VALVE OUTPUT STAGES

TUBE-1012 & TUBE-1006 are the best way to improve the Gold Note sources even further reaching a whole new level of performance through the Class A 12 or 6 valve output stages.

Our sources and amplifications are solid state designs. They are capable of great control and definition providing outstanding realism in recreating the musical event. But if you prefer the sound of the tubes and want to bring your system to its very top performance, the TUBE-1012 & TUBE-1006 is the way to go.

Connect them to your Gold Note source and listen. Solid state and tubes playing for you get you the very best from both worlds delivering a wonderfully natural listening experience.

Our proprietary Totem-Pole Output Stage design, with six independent audio stages per single tube, provides ultra- wide bandwidth response and the lowest distortion to the audio signal path.

TUBE-1012 & TUBE-1006 are easy to connect and easy to use, they also feature a dedicated MUTE button for maximum convenience.

Our valve output stages can be matched with: CD-1000 MkII, DS-1000 MkII, P-1000 MkII and PH-1000.

Tubes

12 tubes to supply the maximum realism for the recreation of the musical event.

Totem Pole

Our proprietary technology guarantees ultra-wide bandwidth e extra-low distortion bringing out the most of the audio signal.

Mute

Featuring a dedicated Mute button for maximum convenience.

Modular Design

TUBE-1012 and TUBE-1006 can be matched with: CD-1000, DS-1000, P-1000 e PH-1000.

• TUBE-1012: Totem-Pole Output Stage design
• MAX INPUT: 8Vrms linear
• MAX OUTPUT: 20Vrms @ XLR & 10Vrms @ RCA
• OUTPUT IMPEDANCE: <600Ω
• INPUT SENSITIVITY: 4Vrms
• RECOMMENDED LOAD: >5KΩ
• TUBES: TUBE-1012: 6n1p x 12
• TRANSFORMERS: No coupling transformers on the IN/OUT
• GAIN: +3,5 dB
• POWER ABSORPTION: TUBE-1006: 40W, TUBE-1012: 75W
• POWER SUPPLY: 100-120V / 220-240V, 50/60Hz. TUBE-1006: Gold Note custom made transformer. TUBE-1012: Super Linear Vacuum Tube Regulator with 4 Inductive Choke filters
• DIMENSIONS: 430mm W 135mm H 370mm D
• WEIGHT: TUBE-1006: 12,3Kg net – 18Kg boxed, TUBE-1012: 15Kg net – 20Kg boxed
• FINISHES: Brushed Aluminium Black, Silver or Gold
