SPL Performer M1000 Mono Power Amp (Pair)

SPL Performer M1000 Mono Power Amp (Pair)

SPL's powerhouse mono-block.

With the power of 1000 W this amplifier controls every loudspeaker effortlessly. Thanks to VOLTAiR technology it is fast, direct and highly efficient with an outstanding sound.

Individual design

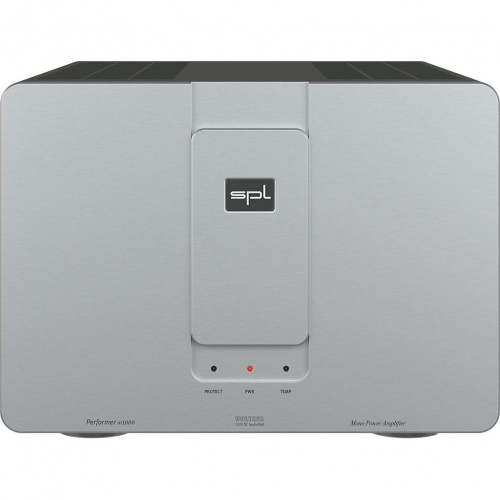

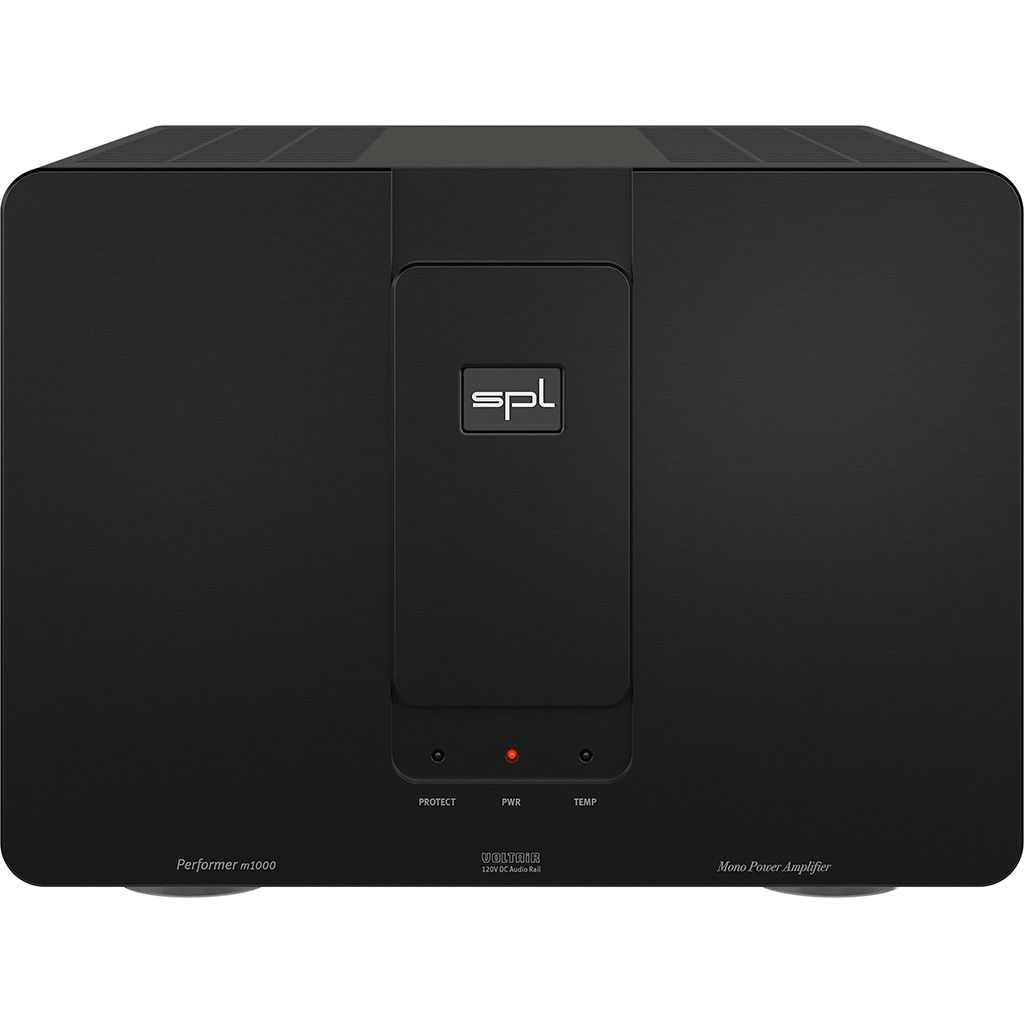

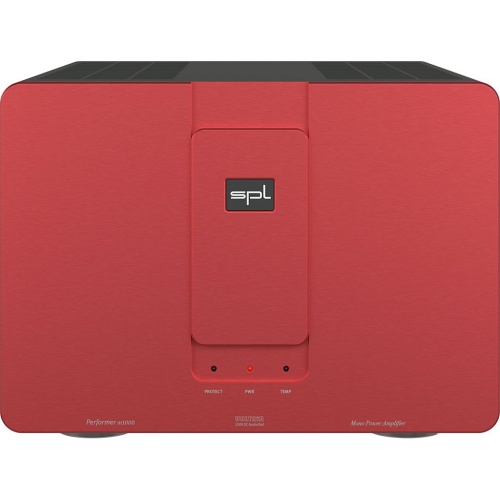

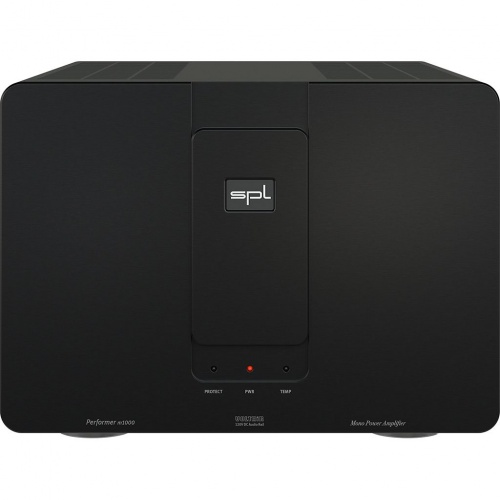

The Performer m1000 can be equipped with a black, red or silver decorative panel that are included in the scope of delivery. This gives you a choice of three colour variants for your chosen basic colour. The decorative panels adhere with the help of a strong neodymium magnet. No tools are therefore required for changing them.

Better safe than sorry

The Performer m1000 has a protection circuit against DC voltage and a limiter against output overload.

If direct current (DC) is detected, the output stage switches off automatically and the Protect LED lights up red.

To protect the output against overdriving, an LDR limiter (light-dependent resistor) is used. Since it works optically, the audio quality is not affected. The Protect LED lights up yellow when the limiter responds.

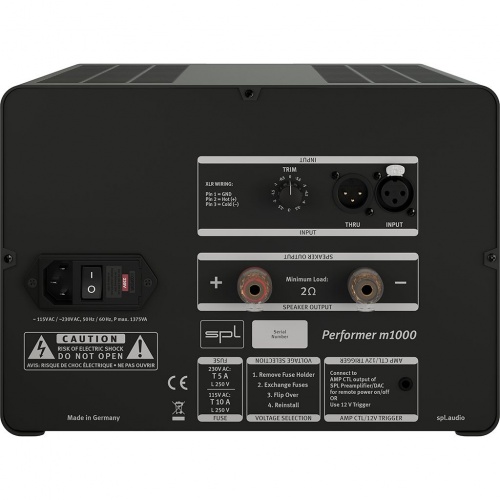

Trim to fit

With reference to the m1000, “fit” means adapted. And you can adapt the input sensitivity in 0.5 dB steps. From 0 dB to -5.5 dB.

This is the much more audiophile solution for acoustically problematic rooms or loudspeaker set-ups than the panorama potentiometer of the preamplifier.

AMP CTL

The power amplifier can be switched on and off using the AMP CTL connection between the Performer m1000 and a preamplifier such as the Director Mk2 or the Crossover.

To do this, connect the 3.5 mm jack sockets with a cable with 3.5 mm mono or stereo jack plugs. Third-party preamps can also switch the Performer m1000 on and off with a 12 V trigger.

Main Features:

• AMPL CTL Connection
• Output Overload Protection
• Adaptable Input Sensitivity
• Controls Every Loudspeaker Effortlessly
• Fast, Direct and Highly Efficient VOLTAir Technology

Analog Input & Thru: XLR (balanced):

• Input gain (max): 32.5 dBu
• Input impedance (THRU not connected): 20 kΩ
• Common mode rejection (THRU not connected): -82 dBu
• Input sensitivity: 12.5 dBu

Loudspeaker Output: Binding posts with ø4mm cable hole (screwable) and banana plug:

• Output power (RMS, 2 Ω): 1000 W
• Harmonic distortion (1 kHz, 2 Ω) :< 0.08 %
• Output power (RMS, 4 Ω): 750 W
• Harmonic distortion (1 kHz, 4 Ω): < 0.05 %
• Output power (RMS, 8 Ω): 420 W
• Harmonic distortion (1 kHz, 8 Ω): < 0.03 %
• Output power (peak to peak): 180 V
• Output voltage (RMS): 64.6 V
• Output impedance (20 Hz – 20 kHz): < 0.031 Ω
• Amplification gain: 26 dB
• Damping factor (1 kHz, 8 Ohm): > 280
• Frequency range (-3dB): 10 Hz – 80 kHz
• Noise (A-weighted): -123 dB

Internal Linear Power Supply with Shielded Toroidal Transformer:

• Toroidal transformer: 1375 VA
• Operating voltage (Input stage): +/- 60 V
• Operating voltage (power stage): +/- 91 V
• Operating voltage for relays, LEDs, AMP CTL: + 12 V

Mains Power Supply:

• Mains voltage (selectable, see fuse chamber): 230 V AC / 50; 115 V AC / 60 Hz
• Fuse 230 V: T 6.3 A
• Fuse 115 V: T 12 A
• Power consumption: max. 1375 VA
• Idle power consumption: 50 W
• Stand-by power consumption: < 0.3 W

Dimensions & Weight:

• W x H x D (width x height incl. feet x depth): 278 x 205 x 375 mm / 11 x 8 x 14.8 inch
• Unit weight: 24.8 kg / 54.7 lbs
• Shipping weight: 29.3 kg / 64.6 lbs
