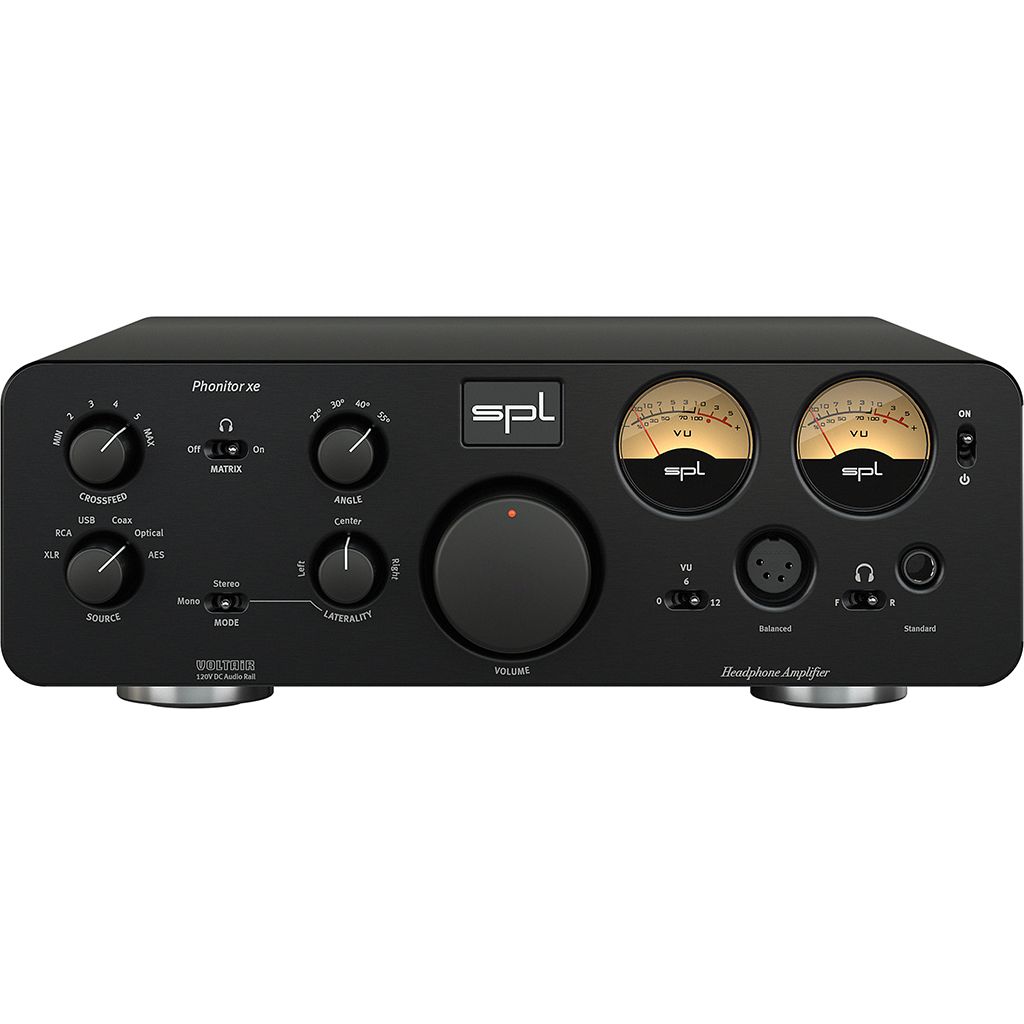

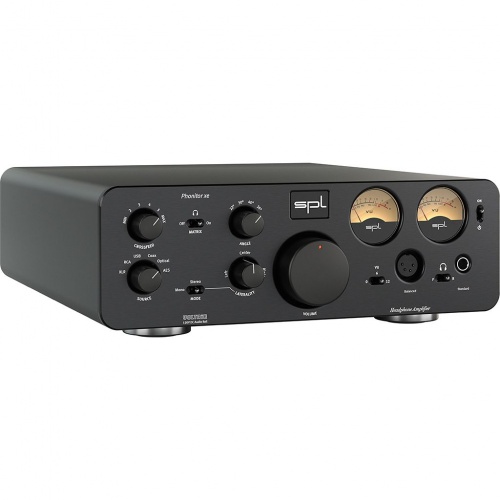

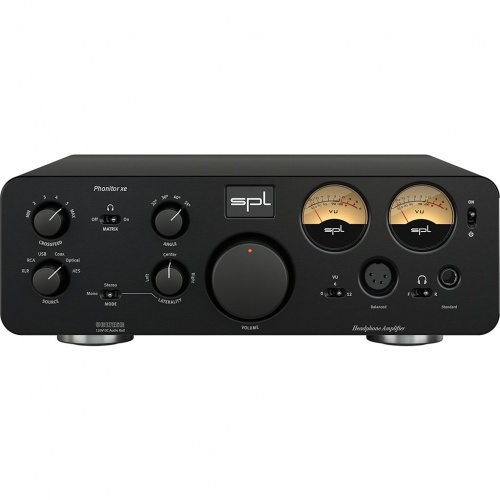

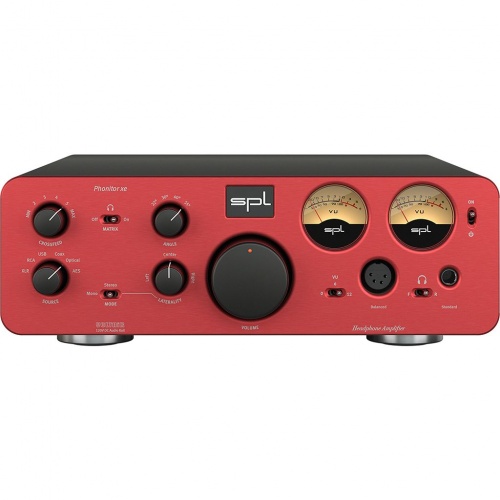

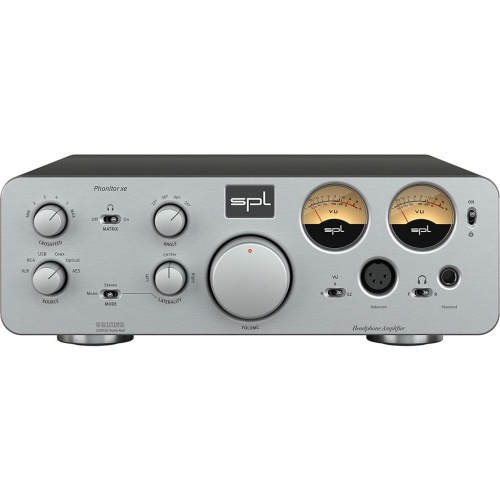

SPL Phonitor XE Headphone Amplifier

SPL Phonitor XE Headphone Amplifier

Phonitor Matrix, Volume remote control, VU meter in retro look,  premium DA converter and the preeminent VOLTAiR technology make the Phonitor xe the best headphone amplifier of our time.

Suitable for all headphones

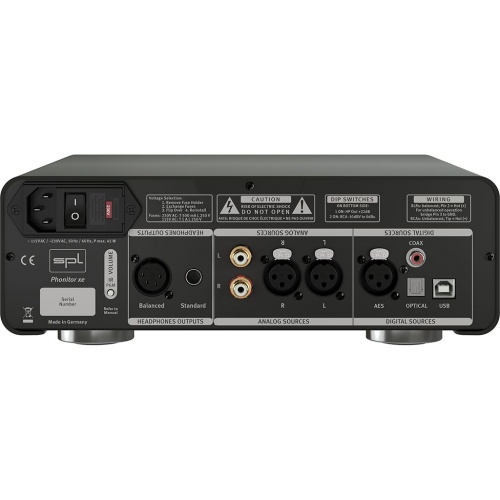

The Phonitor xe offers connections for a standard headphone with a stereo jack plug and for balanced-driven headphones using a  4-pol XLR jack. If you like to avoid the headphone cable hanging off the front you may want to use the connectors on the back of the Phonitor xe.

Volume Remote Control

The volume can be remote controlled with any infrared remote control, that the Phonitor xe simply learns

The DAC768

The highly acclaimed AKM AK4490 Velvet Sound™ premium DAC chip is used as the converter chip in the optional digital-to-analogue converter, which thanks to its new architecture reproduces the finest sound details. It converts PCM audio with a resolution of 32 bits and a sampling rate of up to 768kHz, which is equivalent to 16 times CD resolution. Direct Stream Digital is also supported up to a resolution of DSD4 or DSD256.

Main Features:

• VOLTAiR technology
• Volume Remote Control
• Suitable for all headphones
• Optional DAC768 (Digital to Analogue Converter)
• Highly acclaimed AKM AK4490 Velvet Sound™ premium DAC chip

Analog inputs: XLR (balanced) and RCA

• Input gain (max): 32.5 dBu
• Input impedance (RCA): 20 kΩ
• Input impedance (XLR): 20 kΩ
• Common mode rejection (XLR): 82 dB

Digital Inputs: DAC768 (optional)

• AES/EBU (XLR), PCM sample rates: 44.1/48/88.2/96/176.4/192 kHz
• Coaxial SPDIF (RCA), PCM sample rates: 44.1/48/88.2/96/176.4/192 kHz
• Optical SPDIF (Toslink F06), PCM sample rates: 44.1/48/88.2/96/ with Glass fibre <1m: 176.4/192 kHz
• USB (B), PCM sample rates: 44.1/48/88.2/96/176.4/192/352.8/384/705.6/768 kHz
• USB (B), DSD over PCM (DoP), sample rates: 2.8 (DSD64), 5.6 (DSD128), 11.2 (DSD256) MHz
• 0 dBFS calibrated to: 15 dBu

Balanced Headphones Output: 4-pol XLR (balanced)

• Pin wiring: 1 = L (+), 2 = L (-), 3 = R (+), 4 = R (-)
• Source impedance: 0.36 Ω
• Damping factor (40 Ω): 180
• Frequency range (-3 dB): 10 Hz – 300 kHz
• Crosstalk (1 kHz): -90 dBu
• THD + N (10 Hz – 22 kHz, 0 dBu): 0.00082 %
• Noise (A-weighted): -98 dBu
• Output power (1 kHz, 1% THD, 600 Ω): 2 x 8 W
• Output power (1 kHz, 1% THD, 300 Ω): 2 x 3.5 W
• Output power (1 kHz, 1% THD, 32 Ω): 2 x 0.7 W
• Dynamic range: 130.5 dB

Standard Headphones Output: 6.35 mm (1/4") TRS Jack

• Pin wiring: Tip = Left, Ring = Right, Sleeve = GND
• Source impedance: 0.18 Ω
• Damping factor (40 Ω): 180
• Frequency range (-3 dB):10 Hz – 300 kHz
• Crosstalk (1 kHz): -90 dB
• THD + N (10 Hz – 22 kHz, 0 dBu): 0.00082 %
• Noise (A-weighted): -103 dBu
• Output power (1 kHz, 1% THD, 600 Ω): 2 x 2.7 W
• Output power (1 kHz, 1% THD, 300 Ω): 2 x 5 W
• Output power (1 kHz, 1% THD, 32 Ω): 2 x 1 W
• Dynamic range: 135.5 dB

Internal Linear Power Supply with Shielded Toroidal Transformer

• Operating voltage for analog audio: +/- 60 V
• Operating voltage for relays and LEDs: + 12 V
• Operating voltage for optional DAC768: +7 V, +3.3 V

Mains Power Supply

• Mains voltage (selectable, see fuse chamber): 230 V AC / 50; 115 V AC / 60 Hz
• Fuse for 230 V: T 500 mA
• Fuse for 115 V: T 1 A
• Power consumption: max. 40 VA
• Stand-by power consumption: < 0,3 W

Dimensions & Weight

• W x H x D (width x height incl. feet x depth): 278 x 100 x 300 mm: 11 x 4 x 11,81 inch
• Unit weight: 4.9 kg / 10.8 lbs
• Shipping weight (incl. packaging): 5.6 kg/12.35 lbs
