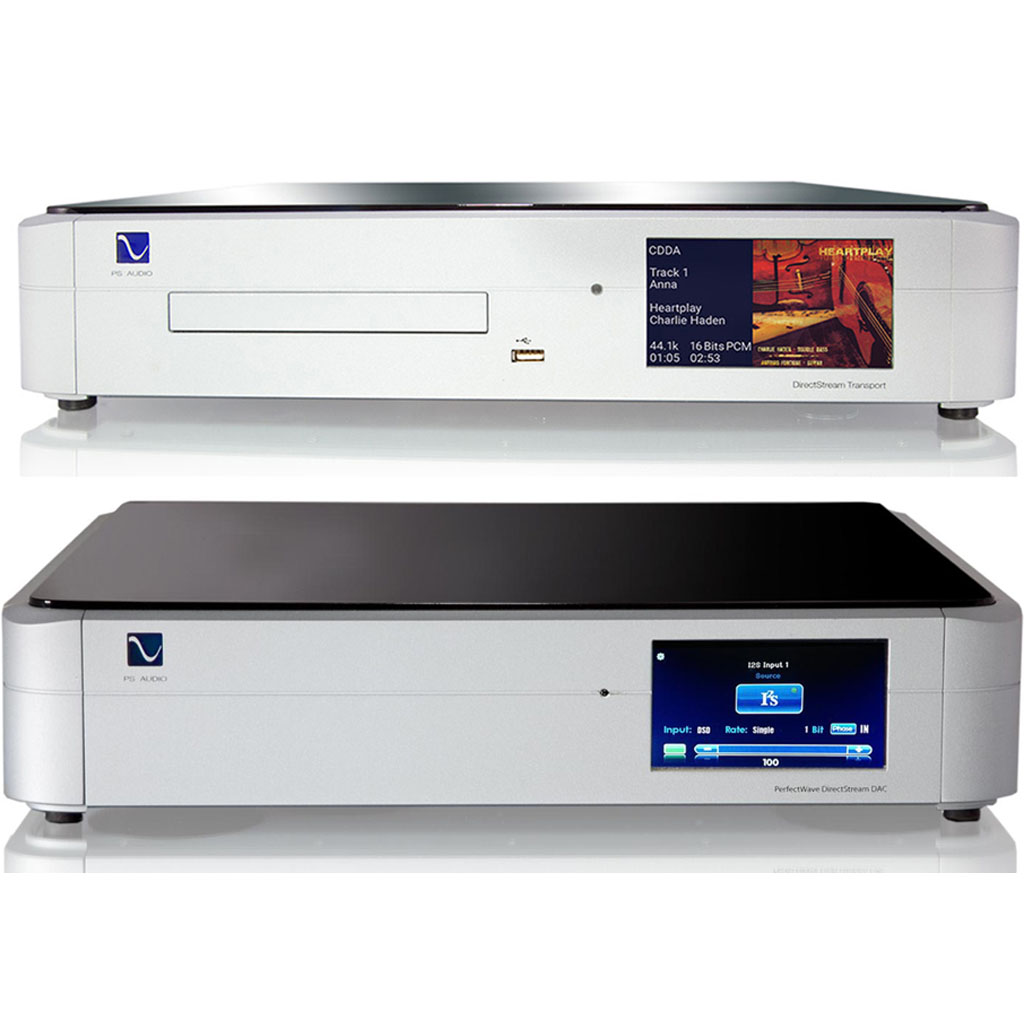

PS Audio DirectStream & Memory CD Transport Bundle

PS Audio Directstream DSD DAC+Bridge  & Memory CD Transport Bundle

Stereophile Recommended Component 2015

Class A+ Stereophile rated DirectStream DAC converts any digital input format, such as PCM or DSD to a pure DSD stream and outputs near-perfect analog directly to your power amplifier or preamplifier.

Whatever the format, whatever the sample rate, DirectStream is a pure DSD based solution that fulfills the promise of a high-resolution analog performance standard the originators of CDs promised over 30 years ago.

Hear what’s been missing in your music for all these years. If you know the sound of music and instruments, and want to hear what’s been missing on your discs, then this DAC is right for you.

Physical

Unit Weight: 22 lbs [13.5 kg]
Unit Dimensions: 14” x 17” x 4” [ 36cm x 43cm x 10cm]
Shipping Weight: 31 lbs [19 kg]
Shipping Dimensions: 20.5”x 24” x 10” [52cm x 61cm x 25cm]

Power requirements

Input Power Model specific: 100VAC, 120VAC, or 230VAC 50 or 60Hz
Power Consumption: 30W
Digital audio inputs: I2S(2), Coax, XLR Balanced, TOSLINK, USB, Network Bridge slot

Sample Rates

I2S,S/PDIF, and USB -- 44.1kHz to 352.8kHz 16bit, 24bit, DSD 64, DSD 128, TOSLINK – 44.1kHz to 96kHz 16bit, 24bit, XLR (AES/EBU) -- 44.1kHz to 192kHz 16bit, 24bit, DSD 64

Analog Audio Output

Connector RCA/XLR Unbalanced /Balanced (X2)
Output level low: 1.41 Vrms(+5BV)/3.15
Output level high: maximum 2.81 Vrms (+8dBV)/5.3 Vrms (+12dBV)
Output Impedance: 100Ω/200Ω
Frequency Response: 20-20KHz +/- 0.25dB
THD&IM @ 1KHz (full scale) <0.03%
Output Stage Passive audio transformer, fed by high current, high speed analog amps producing double rate DSD.

Data Handling

Format: PCM or DSD
Sample rate: (PCM) 44.1kHz, 48.0kHz, 88.2kHz, 96.0kHz, 176.4kHz, 192kHz, 352.8kHz
Word length: (PCM) 16b, 18b, 20b, 24b
Data rate: (DSD) Standard (2.8MHz) or Double (5.6MHz) DoP on all inputs as well as raw DSD on I2S inputs
Input jitter reduction effectively 100%, residual immeasurable. No input PLLs, FLLs.
Input Processing: 170MHz
Signal Processing: 50MHz
Synchronous Upsampling: All inputs 28.224MHz
Digital Processing S/N ration: >146 dB
Digital Volume Control Zero loss of precision
Analog Conversion method Delta Sigma (DSD) Single-bit double rate

I2S Digital Input

Connector HDMI
Format PCM or DSD. DoP on all inputs as well as raw DSD on I2S inputs

USB Digital Input

Connector USB “B” Type
Format PCM or DoP v1.1 (DSD over PCM)
Transfer mode Asynchronous

• Pure 100% DSD based D to A Converter
• Fully upgradable through software releases
• Resolution perfect volume and balance controls built in
• Upsamples PCM and DSD to 10x DSD rate
• DXD support
• Purely passive transformer coupled output
• Improves imaging and soundstage
• Simple, direct signal path with one master clock
• Hand written filters, processors and up-samplers
• Immune to incoming jitter problems from different sources
• Increased digital headroom
• No off-the-shelf IC DAC chips used
• Uncovers musical details masked by typical PCM based processors
• 7 digital inputs
• Fully balanced from input to output
• Colour touch screen
